3-way diverter zone ball valve - 982
3-way diverter zone ball valve - 982

982

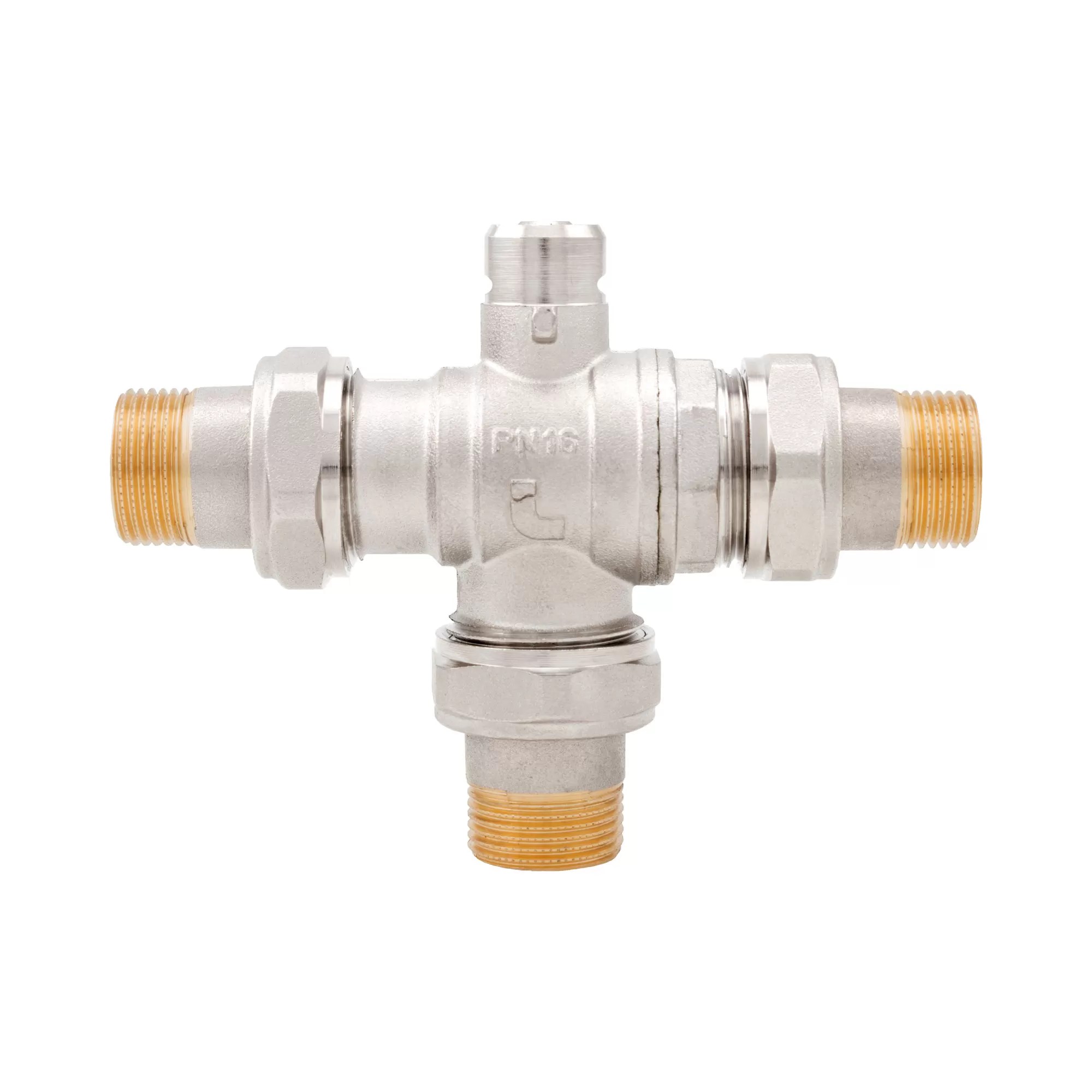

3-way diverter zone ball valve

Body in nickel-plated brass.
Full flow ball.
Maximum working pressure: 16 bar.
Maximum differential pressure: 10bar.
Minimum and maximum working temperatures: -10°C (with antifreeze solution), 100°C.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Suitable for the electric actuators art. 990 and 991.

SizePressureCodePacking
3/4" (DN 20)16bar/232psi98200341/14
1" (DN 25)16bar/232psi98201001/9

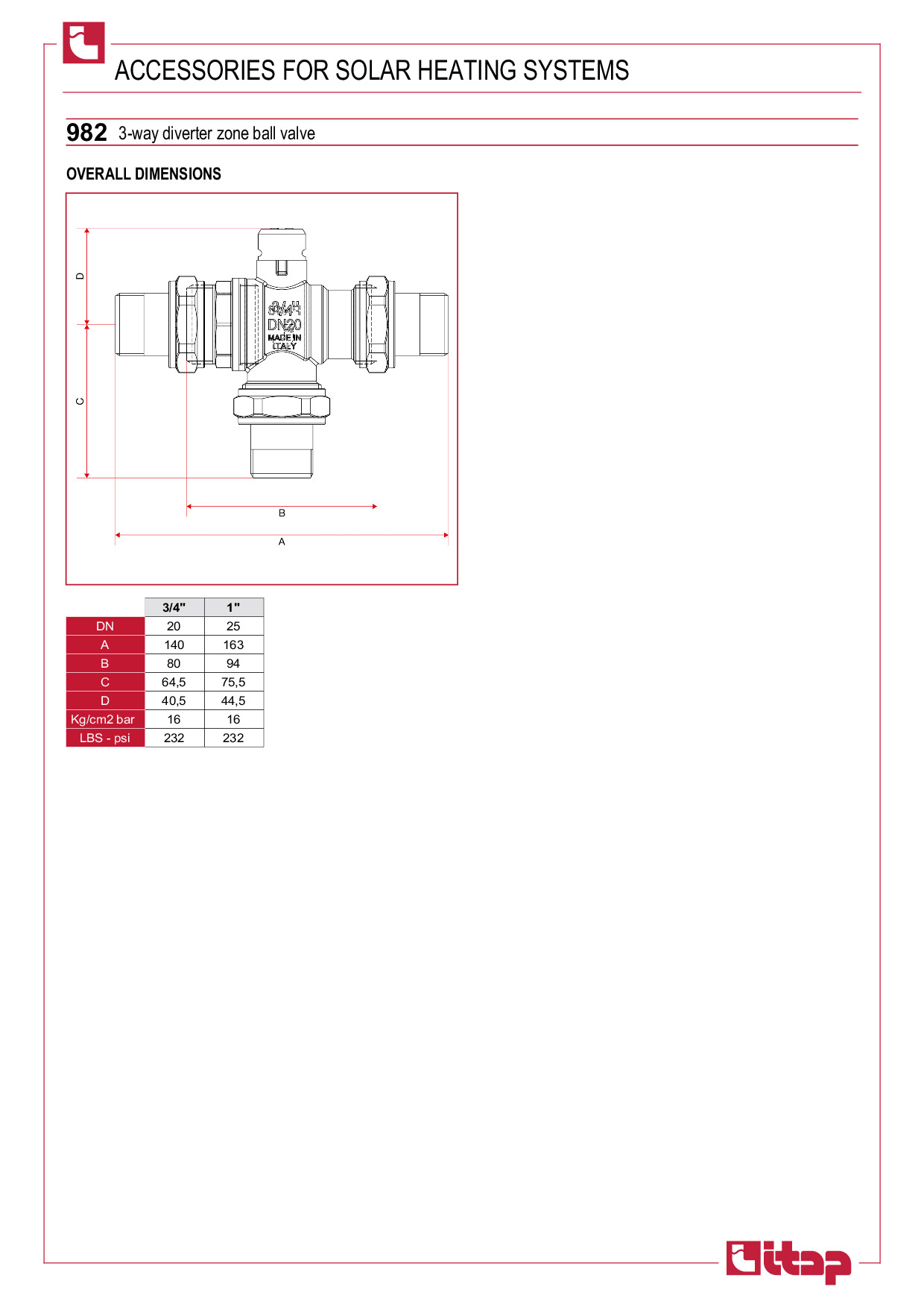

Drawing 982
Download PDF
Materials 982
Download PDF

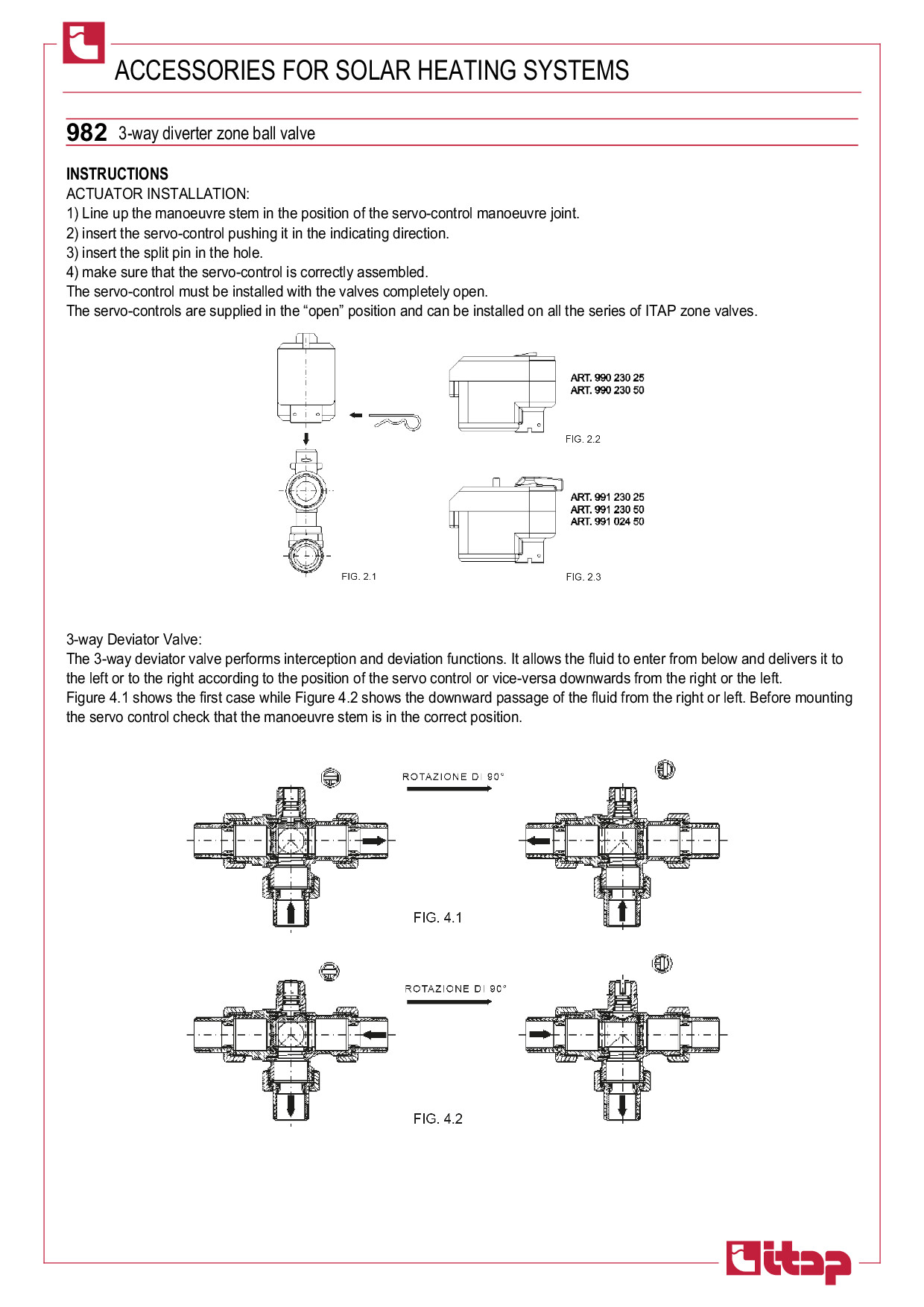

Installation 982
Download PDF
Pressure drop diagram 982
Download PDF
Declaration of Conformity 982
Download PDF
