Build-in valve with blind cap - 136
Build-in valve with blind cap - 136

136

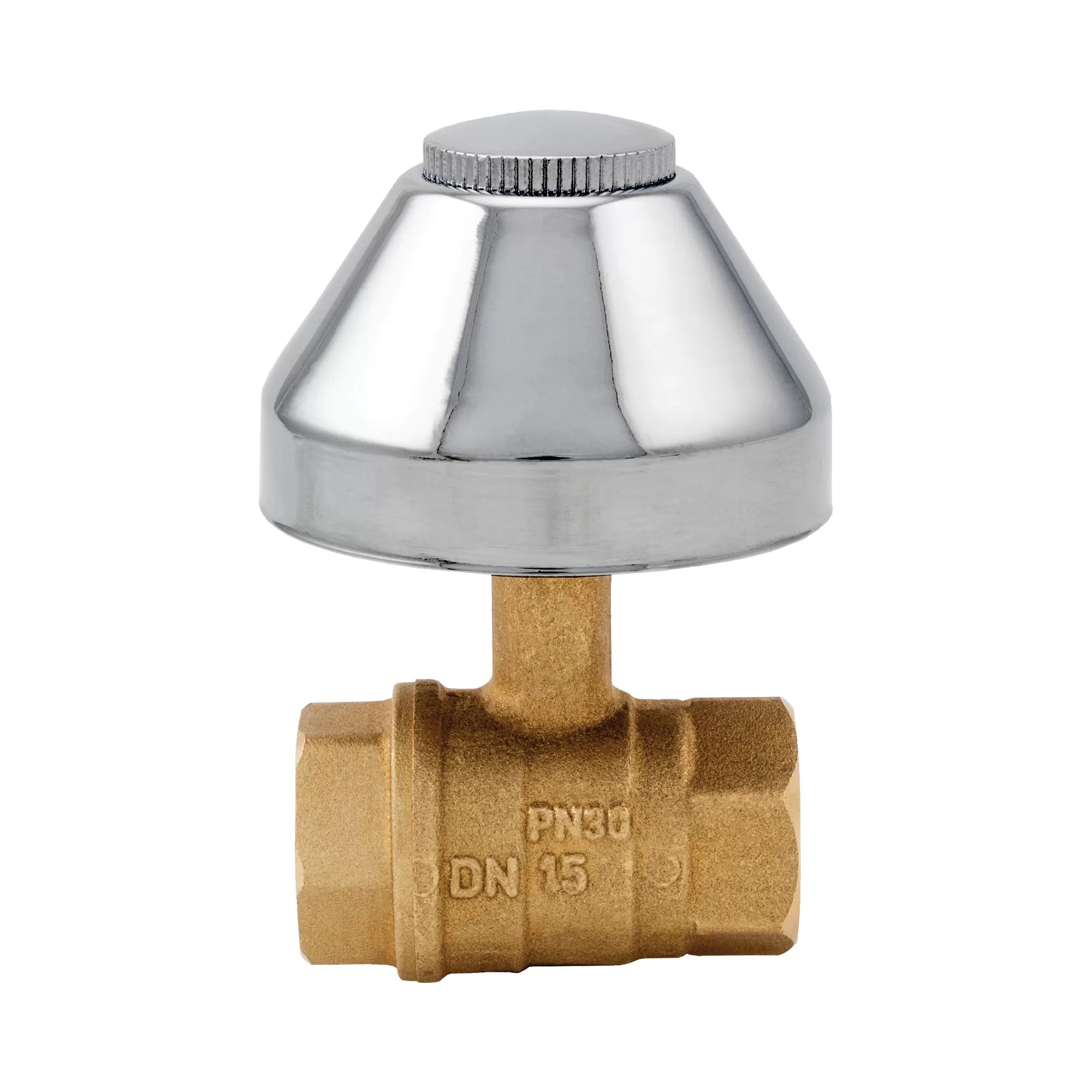

Build-in valve with blind cap

Full flow.
Female/female threads.
Body in brass.
Cover plate and cap in chrome-plated brass.
Minimum and maximum working temperatures: 0°C, 110°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
1/2" (DN 15)30bar/435psi13600128/48
3/4" (DN 20)25bar/362.5psi13600345/30
Drawing 136
Download PDF
Materials 136
Download PDF
Declaration of Conformity 136
Download PDF
Technical featuresTechnical features
