995V

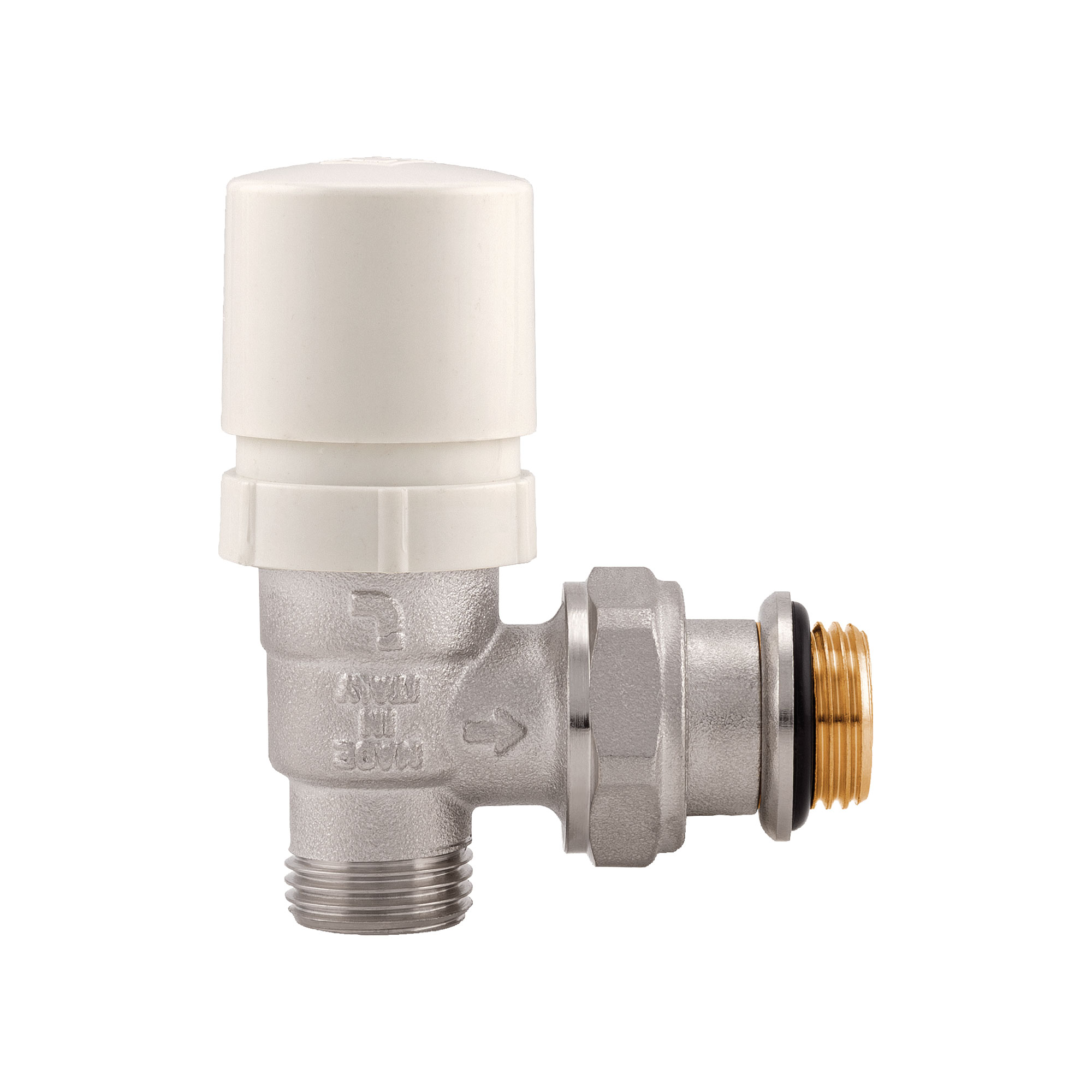

Angle convertible valve with handle, male thread

Body in nickel-plated brass.
Maximum working temperature: 110°C.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Suitable for thermostatic control heads art. 891, art. 891R, art. 891SD.

To be used with multilayer, PEX or polybutylene piping, together with 595M or 510 Multi-Fit® connectors.
Suitable also for copper piping, together with a compression fitting art. 595.
The male thread “G” is equipped with a conical seat and inner diameter mm.16.

SizePressureCodePacking
3/8" (DN 10)10bar/145psi9950038V4/56
1/2" (DN 15)10bar/145psi9950012V4/56

Range CONVERTIBLE VALVES AND LOCKSHIELDS

Highlights
