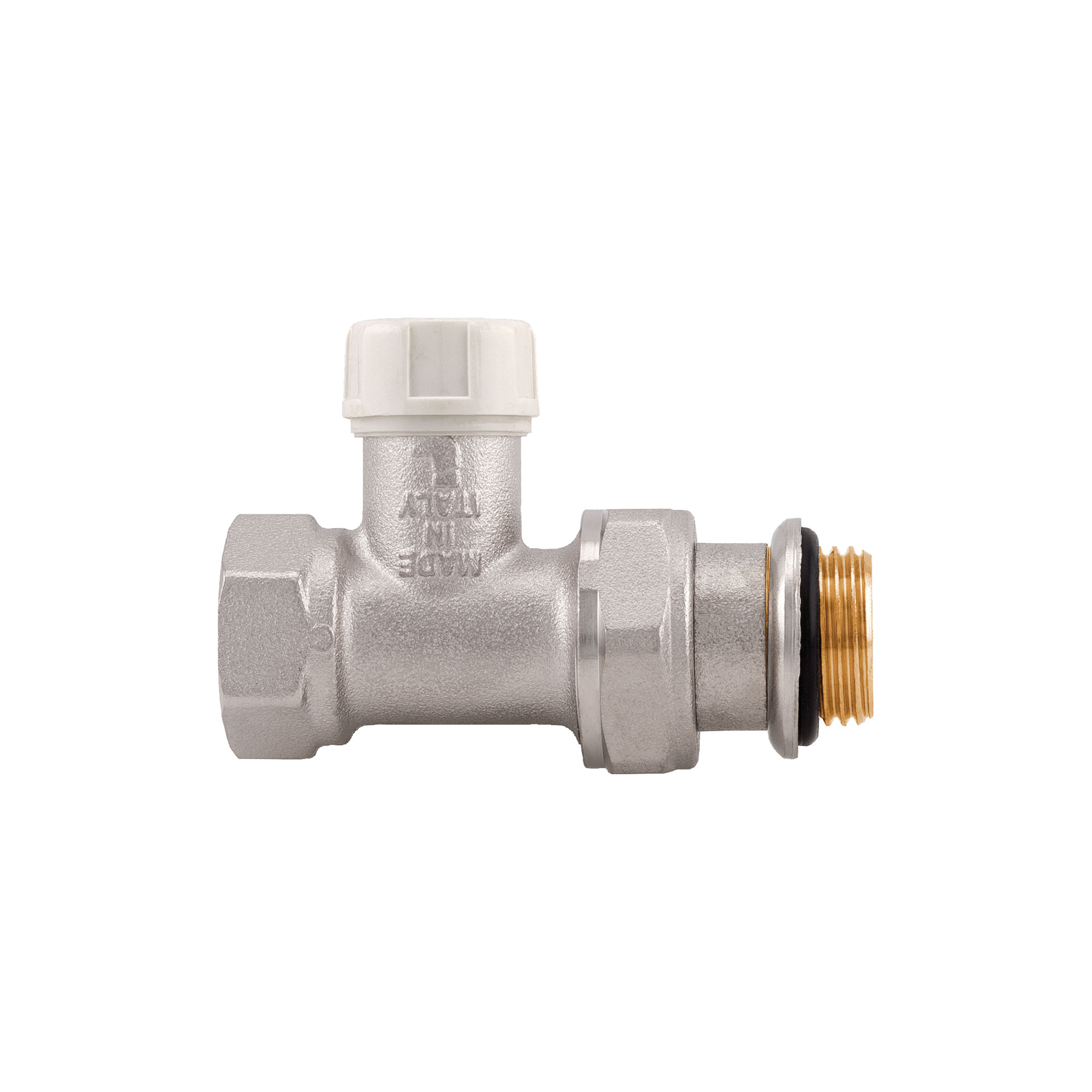

Straight lockshield, female thread - 296S
Straight lockshield, female thread - 296S

296S
Straight lockshield, female thread

Body in nickel-plated brass.
Maximum working temperature: 110°C.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

To be used with iron piping or, together with an Itap-Fit® connector (art. 618), with copper, crosslinked polyethylene (PEX) or polybutylene.
In the case of use with PEX or polybuthylene it is also requested the use of the liner art. 655.

SizePressureCodePacking
3/8" (DN 10)10bar/145psi2960038S12/168
1/2" (DN 15)10bar/145psi2960012S12/144
3/4" (DN 20)10bar/145psi2960034S10/80
Drawing 296S
Download PDF
Materials 296S
Download PDF
Pressure drop diagram 296S
Download PDF
Declaration of Conformity 296S
Download PDF
Technical featuresTechnical features
