Female branch T coupling - 035
Female branch T coupling - 035

035

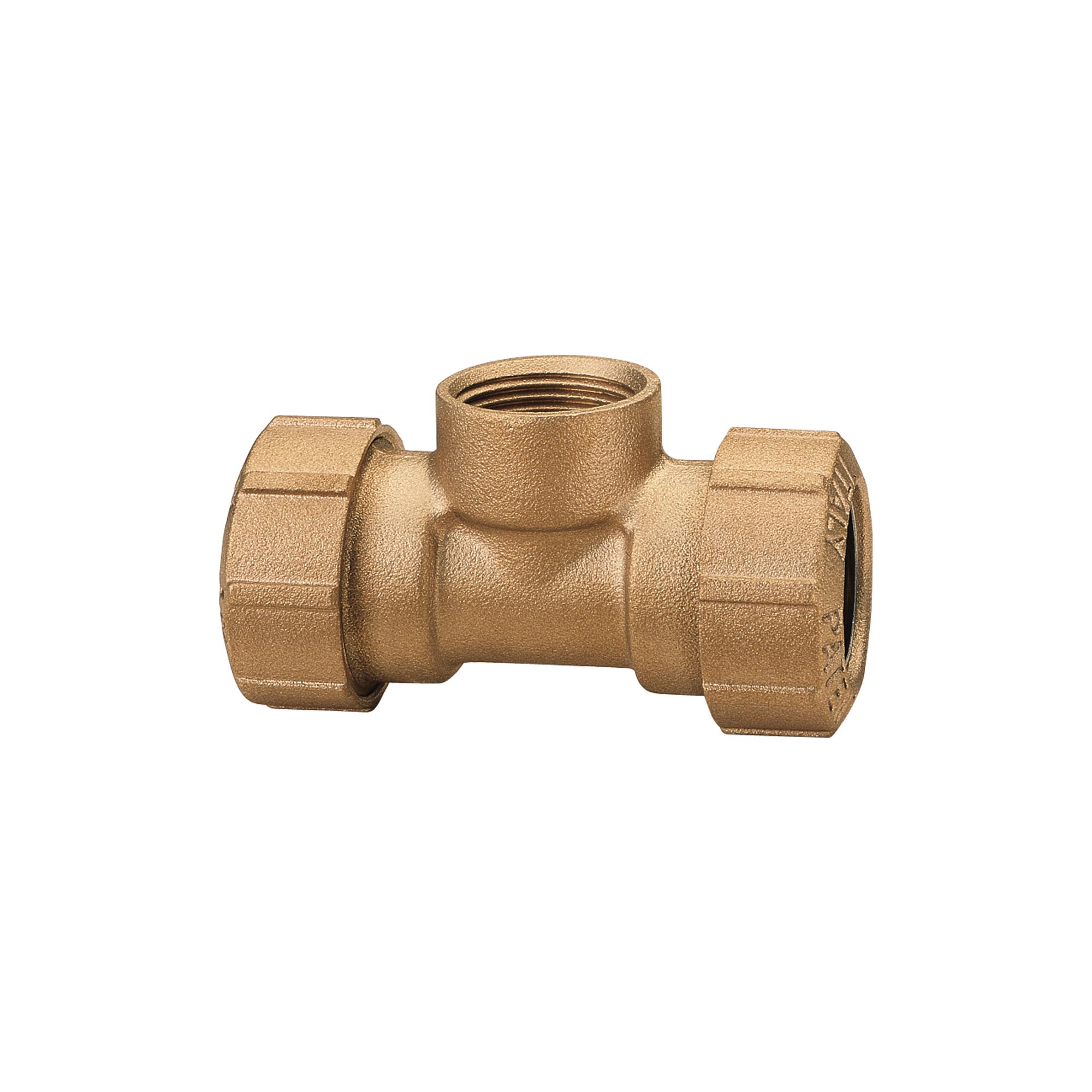

Female branch T coupling

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.
Female threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizeCodePacking
1/2"x2003500120208/112
3/4"x2503500340256/72
1"x3203501000324/36
1"1/4x4003501140403/27
1"1/2x5003501120502/12
2"x6303502000631/6
Drawing 035
Download PDF
Materials 035
Download PDF
Installation 035
Download PDF
Declaration of Conformity 035
Download PDF
