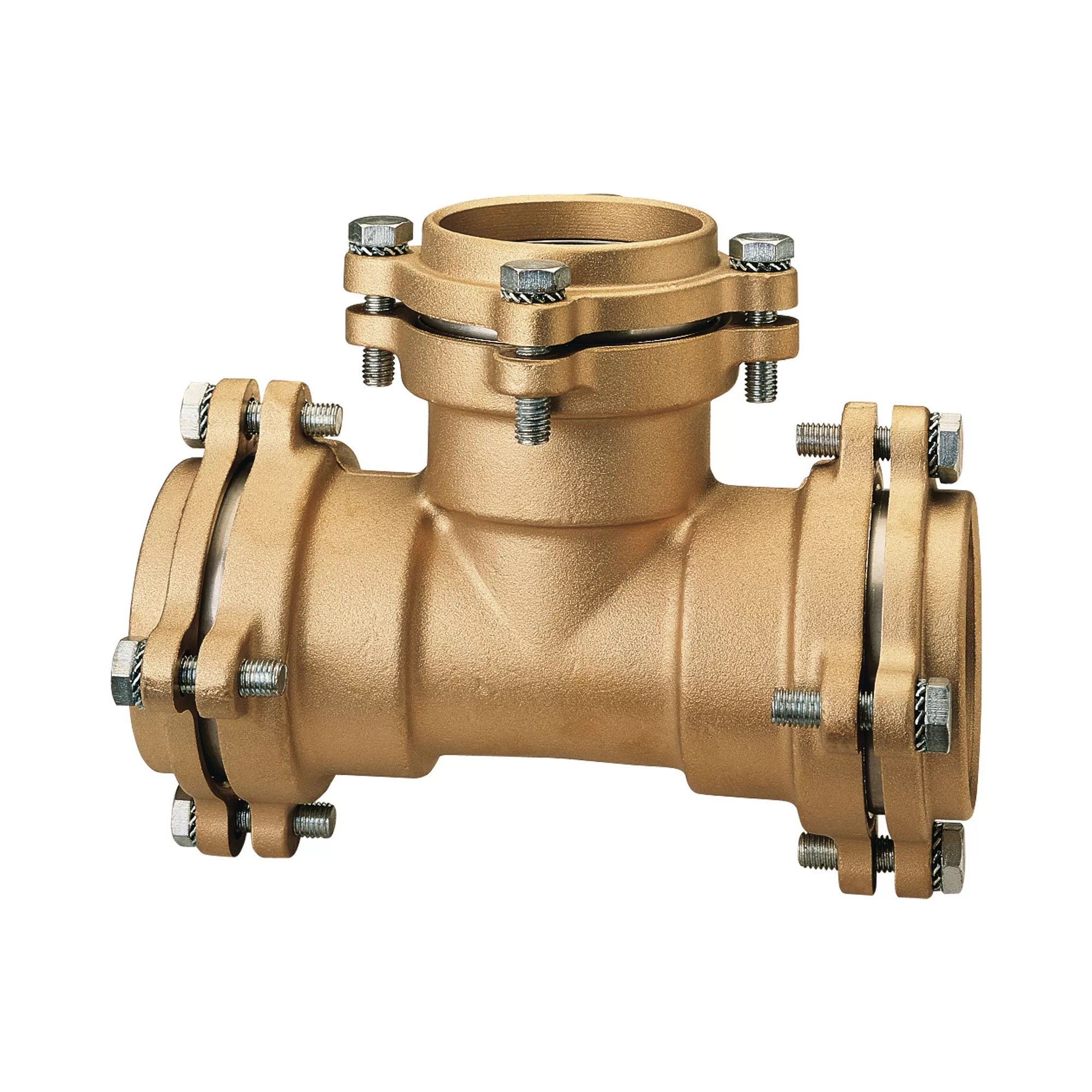

Equal T coupling, with flanges - 030FL
Equal T coupling, with flanges - 030FL

030FL
Equal T coupling, with flanges

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.

SizeCodePacking
7503002120751/3
9003003000901/2
Drawing 030FL
Download PDF
Materials 030FL
Download PDF
Installation 030FL
Download PDF
Declaration of Conformity 030FL
Download PDF
Technical featuresTechnical features
