Extended coupling sleeve, to repair pipes - 025
Extended coupling sleeve, to repair pipes - 025

025

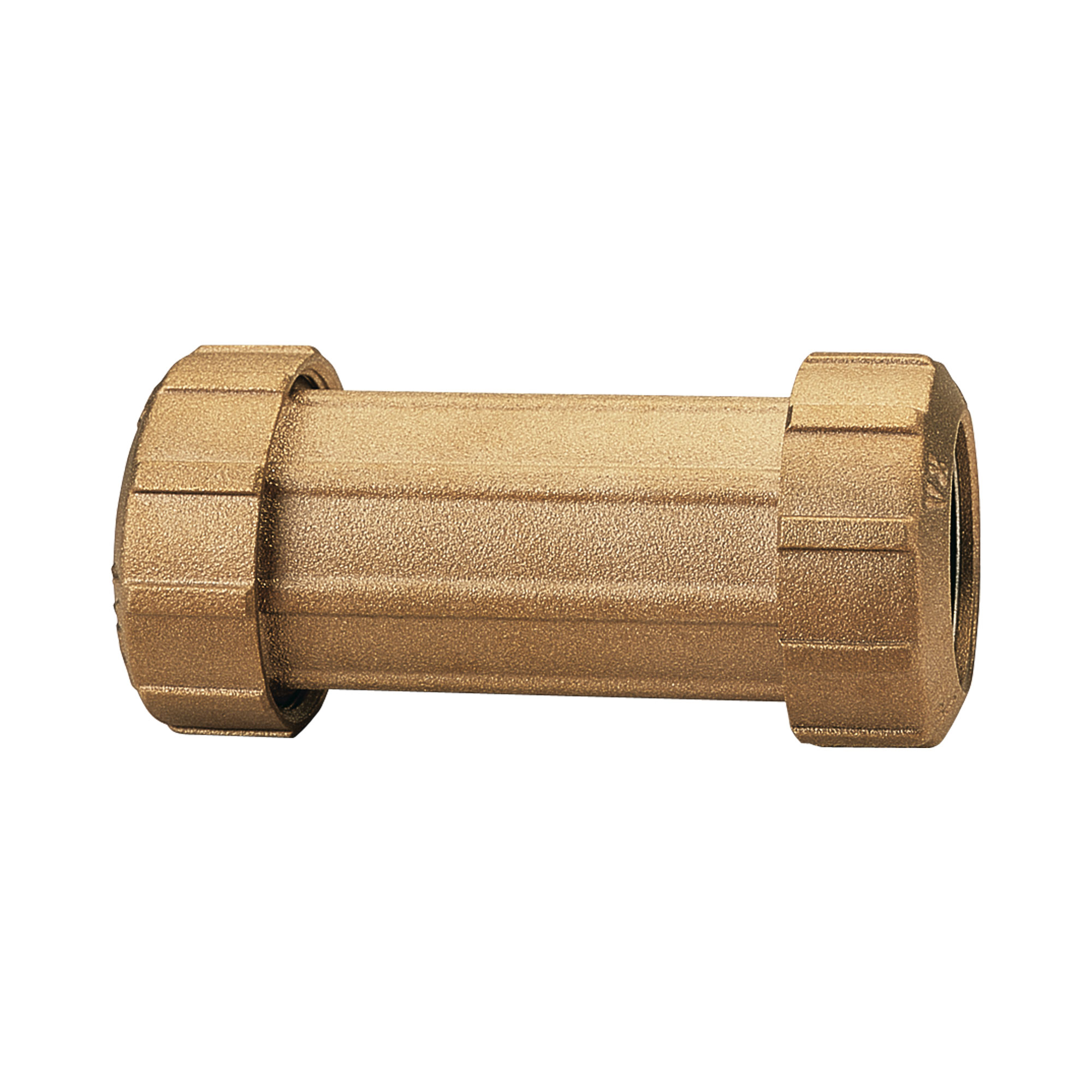

Extended coupling sleeve, to repair pipes

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.

SizeCodePacking
3202501000326/36
4002501140404/20
5002501120502/18
6302502000631/8
Drawing 025
Download PDF
Materials 025
Download PDF
Installation 025
Download PDF
Declaration of Conformity 025
Download PDF
Technical featuresTechnical features
