Straight female connector, with flanges - 010FL
Straight female connector, with flanges - 010FL

010FL

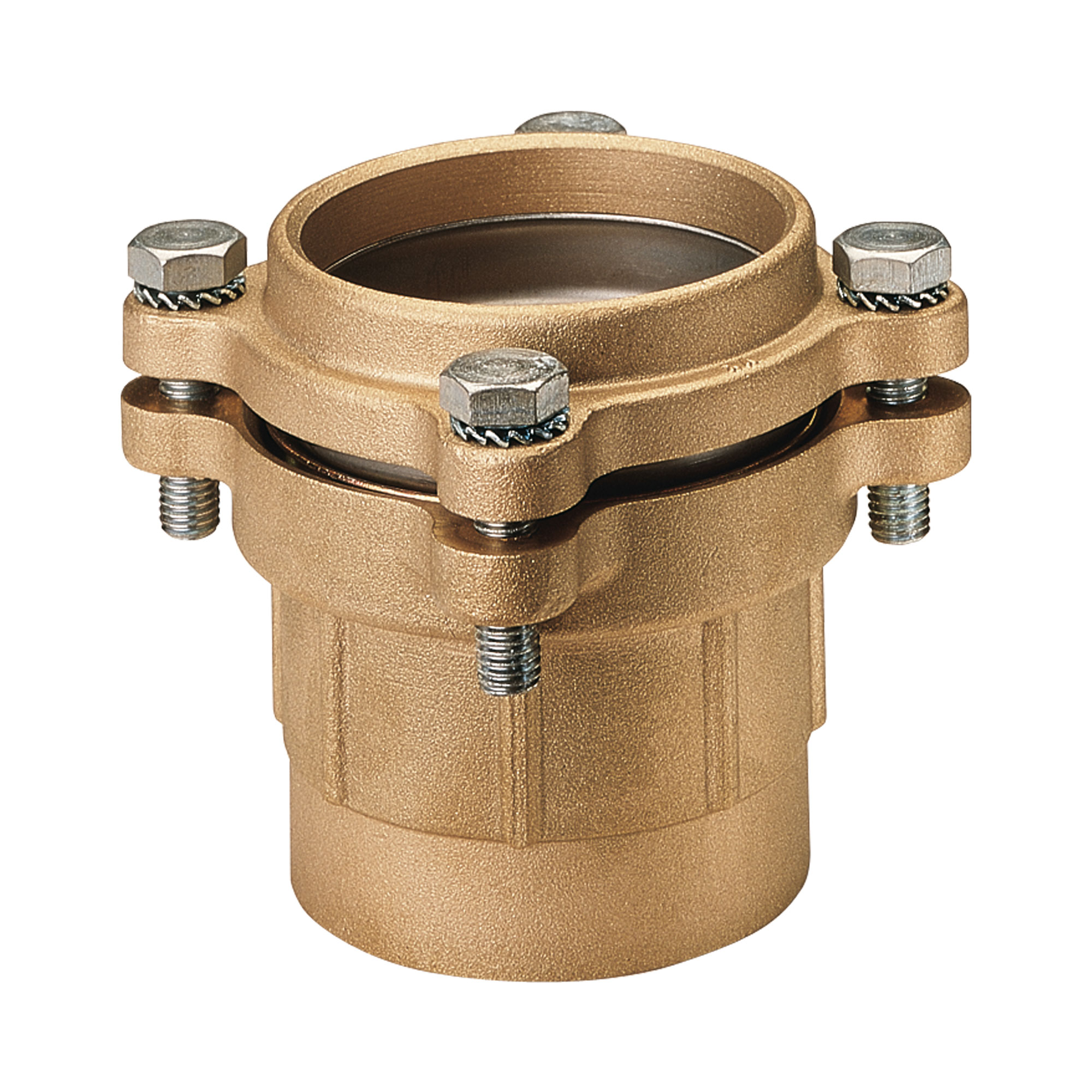

Straight female connector, with flanges

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.
Female threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizeCodePacking
2"1/2x7501002120751/12
3"x9001003000901/8
4"x11001004001101/4
Drawing 010FL
Download PDF
Materials 010FL
Download PDF
Installation 010FL
Download PDF
Declaration of Conformity 010FL
Download PDF
Technical featuresTechnical features
