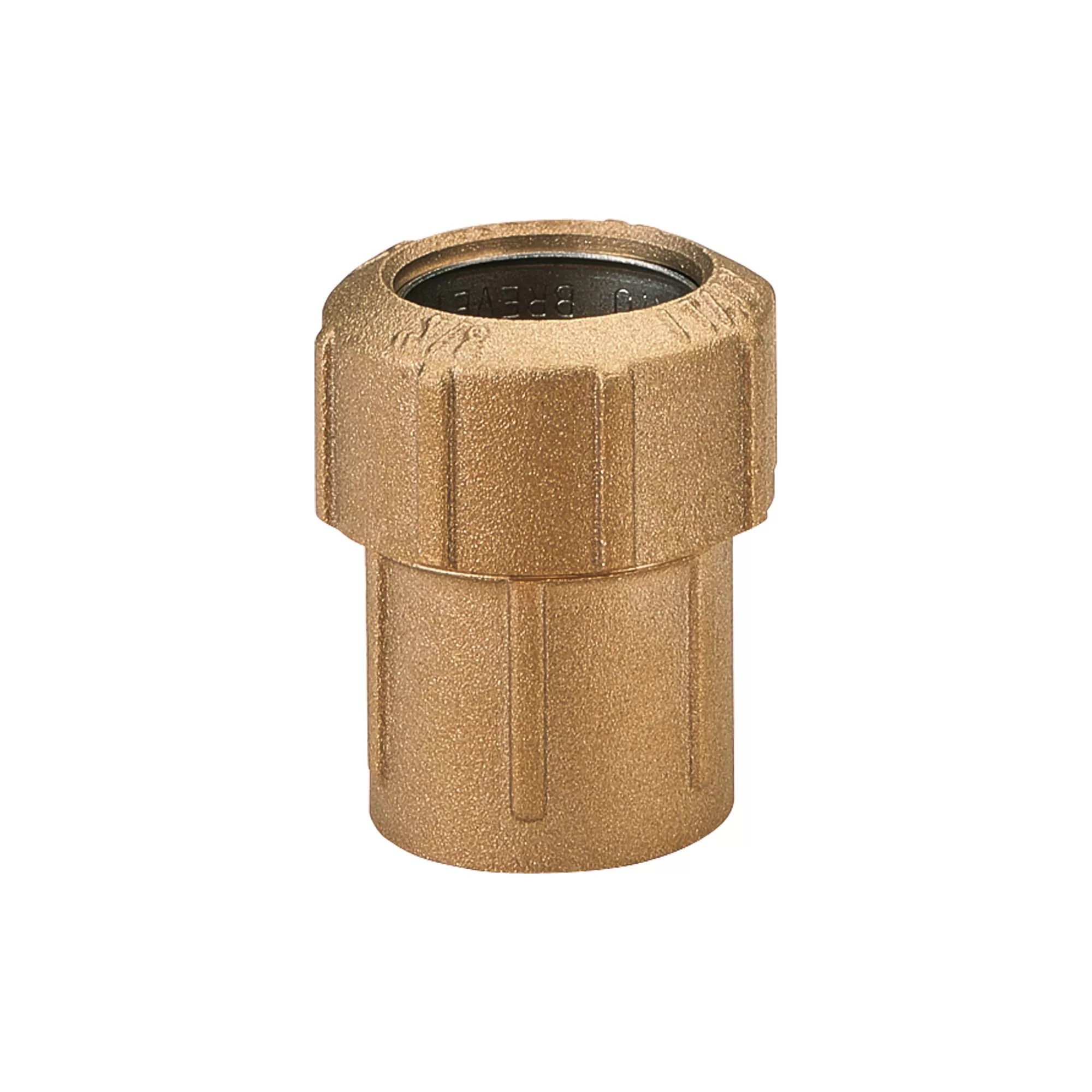

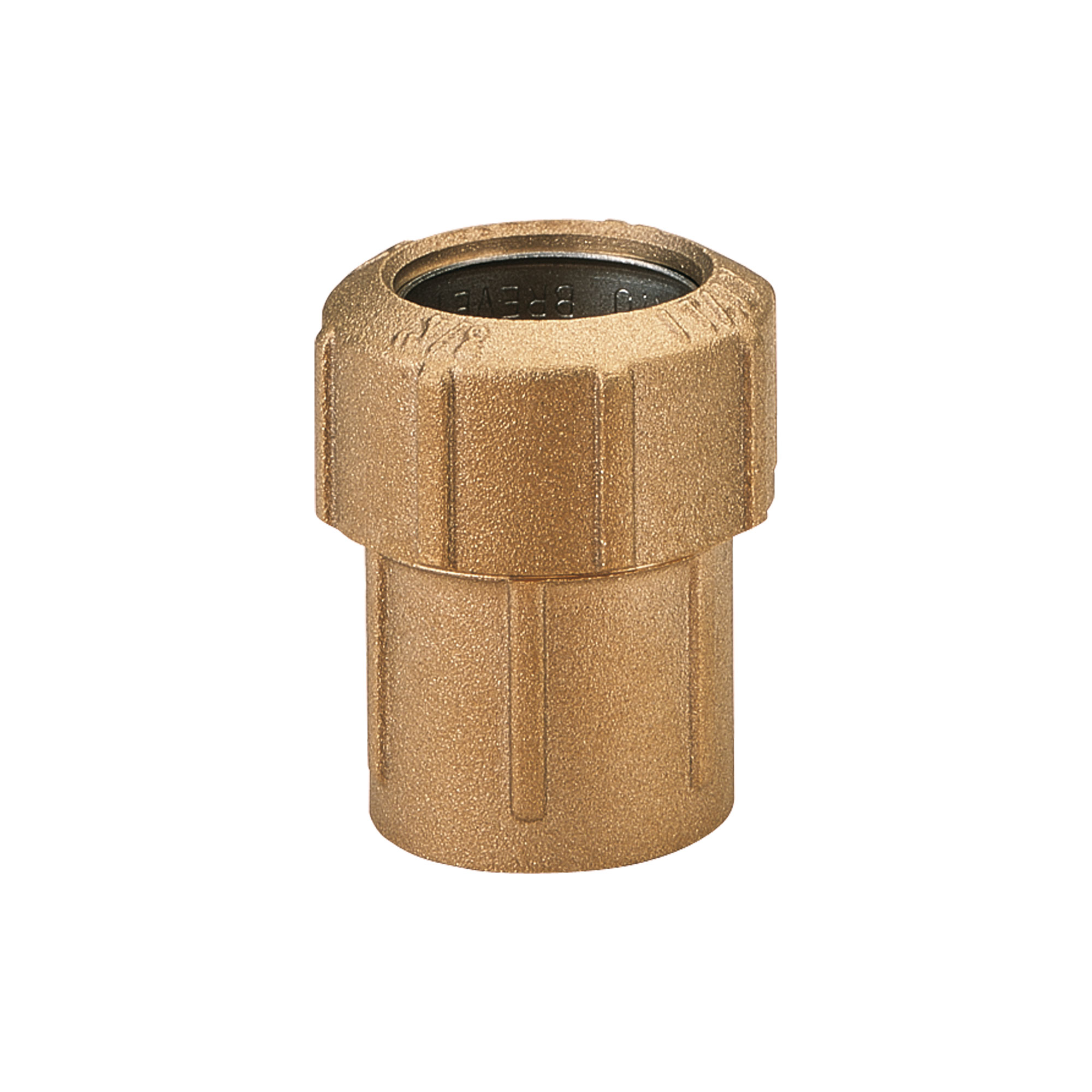

Straight female connector - 010
Straight female connector - 010

010
Straight female connector

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.
Female threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizeCodePacking
1/2"x20010001202020/240
3/4"x25010003402515/180
1"x32010010003212/108
1"1/4x4001001140406/54
1"1/2x5001001120504/32
2"x6301002000632/12
Drawing 010
Download PDF
Materials 010
Download PDF
Installation 010
Download PDF
Declaration of Conformity 010
Download PDF
Technical featuresTechnical features
