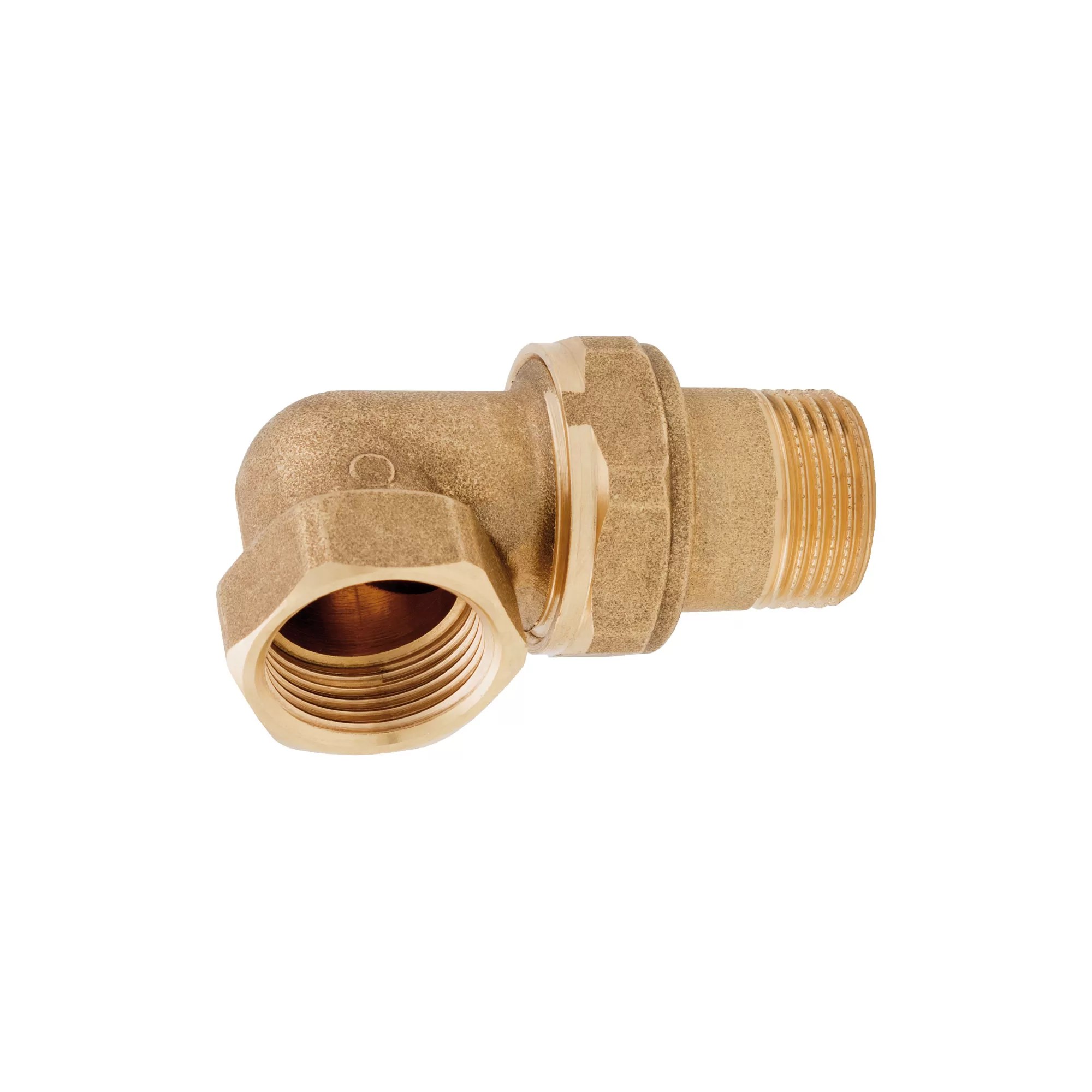

3-piece elbow, flat washer - 152
3-piece elbow, flat washer - 152

152
3-piece elbow, flat washer

Suitable for domestic water services, heating and air-conditioning plants.
Body in brass.
Minimum and maximum working temperatures: -20°C, 120°C (in absence of steam).
Female threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
1/2"50bar/725psi152001215/180
3/4"40bar/580psi152003412/96
1"40bar/580psi15201008/64
1"1/430bar/435psi15201146/36
Drawing 152
Download PDF
Materials 152
Download PDF
Declaration of Conformity 152
Download PDF
