Build-in valve with handle - 345
Build-in valve with handle - 345

345

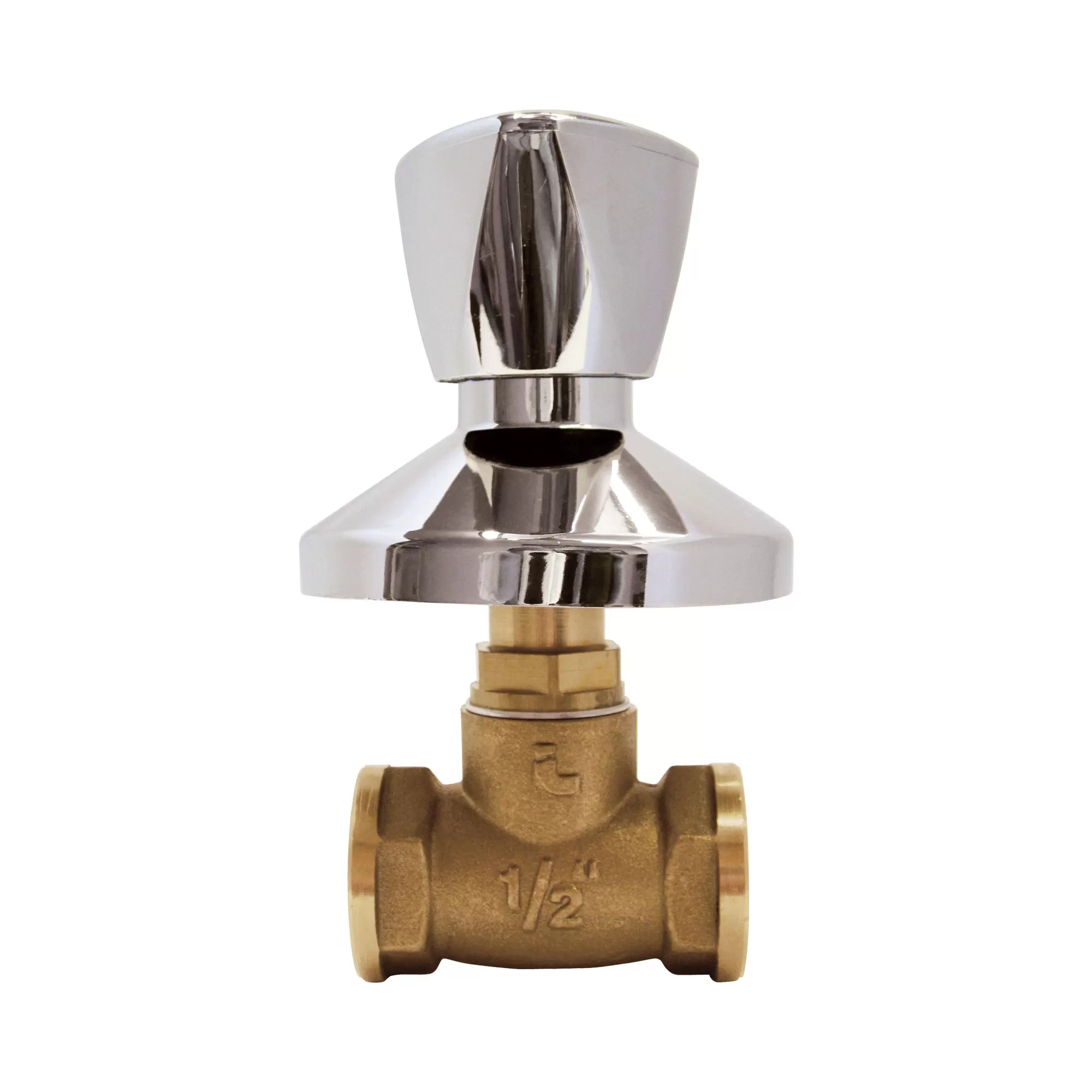

Build-in valve with handle

Female/female threads.
Body in brass.
Cover plate and handle in chrome-plated ABS.
Minimum and maximum working temperatures: 0°C, 110°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
1/2" (DN 15)20bar/290psi34500124/24
3/4" (DN 20)15bar/217.5psi34500344/20
Drawing 345
Download PDF
Materials 345
Download PDF
Declaration of Conformity 345
Download PDF
