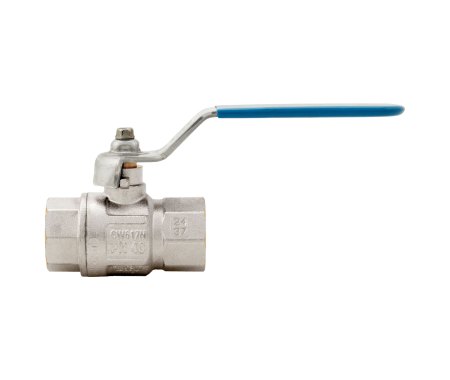

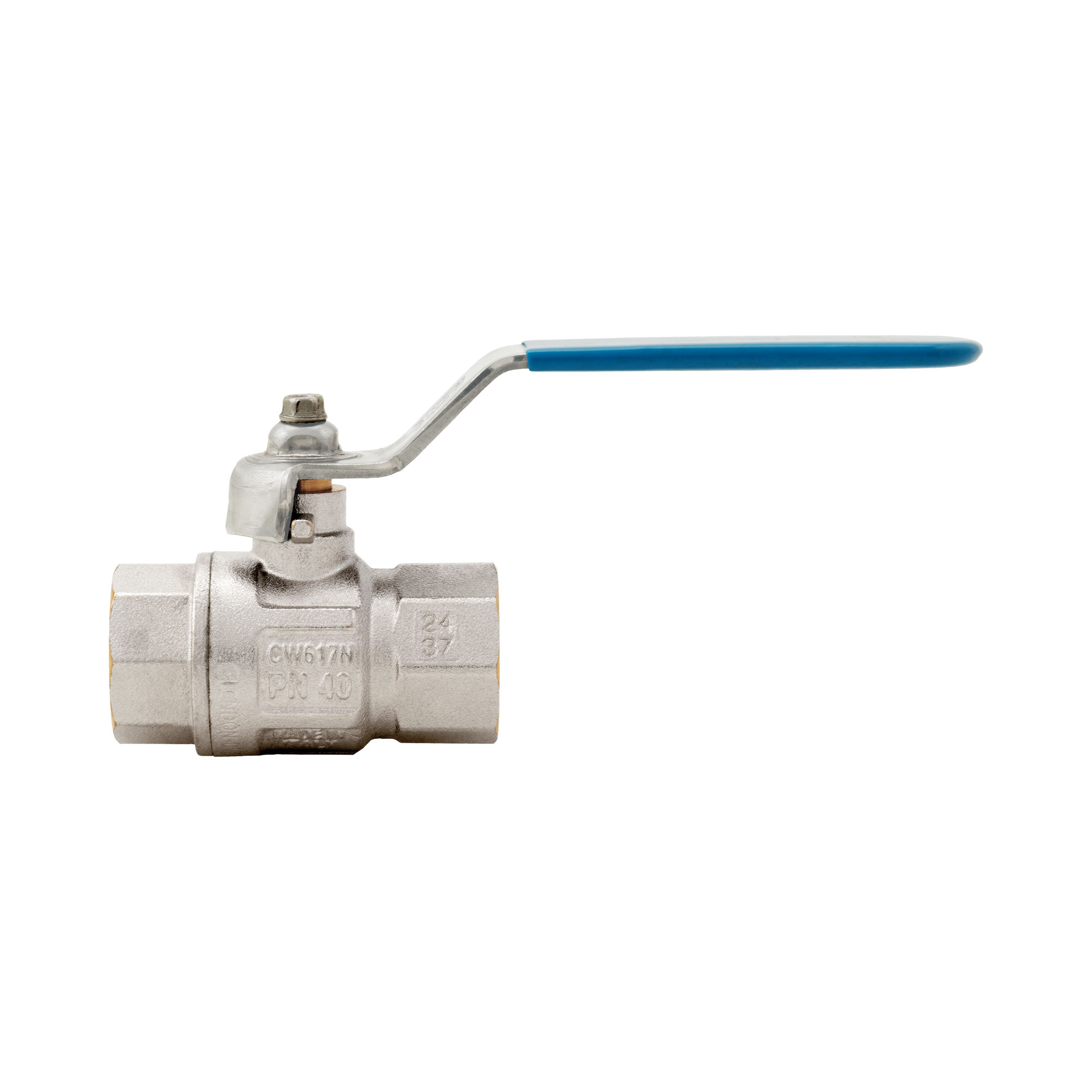

Madrid ball valve, full flow, with flat lever handle in stainless steel

Female/female threads.
Flat lever handle in lined stainless steel AISI304.
Body in nickel-plated brass.
Minimum and maximum working temperatures: -20°C, 150°C in absence of steam.
Female threads: ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizePressureCodePacking
1/4" (DN 8)50bar/725psi276B014XB12/144
3/8" (DN 10)50bar/725psi276B038XB12/144
1/2" (DN 15)50bar/725psi276B012XB10/90
3/4" (DN 20)40bar/580psi276B034XB8/48
1" (DN 25)40bar/580psi276B100XB6/48
1"1/4 (DN 32)30bar/435psi276B114XB2/18
1"1/2 (DN 40)30bar/435psi276B112XB2/10
2" (DN 50)25bar/362.5psi276B200XB2/10
Drawing 276XB
Download PDF
Materials 276XB
Download PDF
Installation 276XB
Download PDF
Pressure drop diagram 276XB
Download PDF
Pressure-temperature diagram 276XB
Download PDF
Declaration of Conformity 276XB
Download PDF
