098N

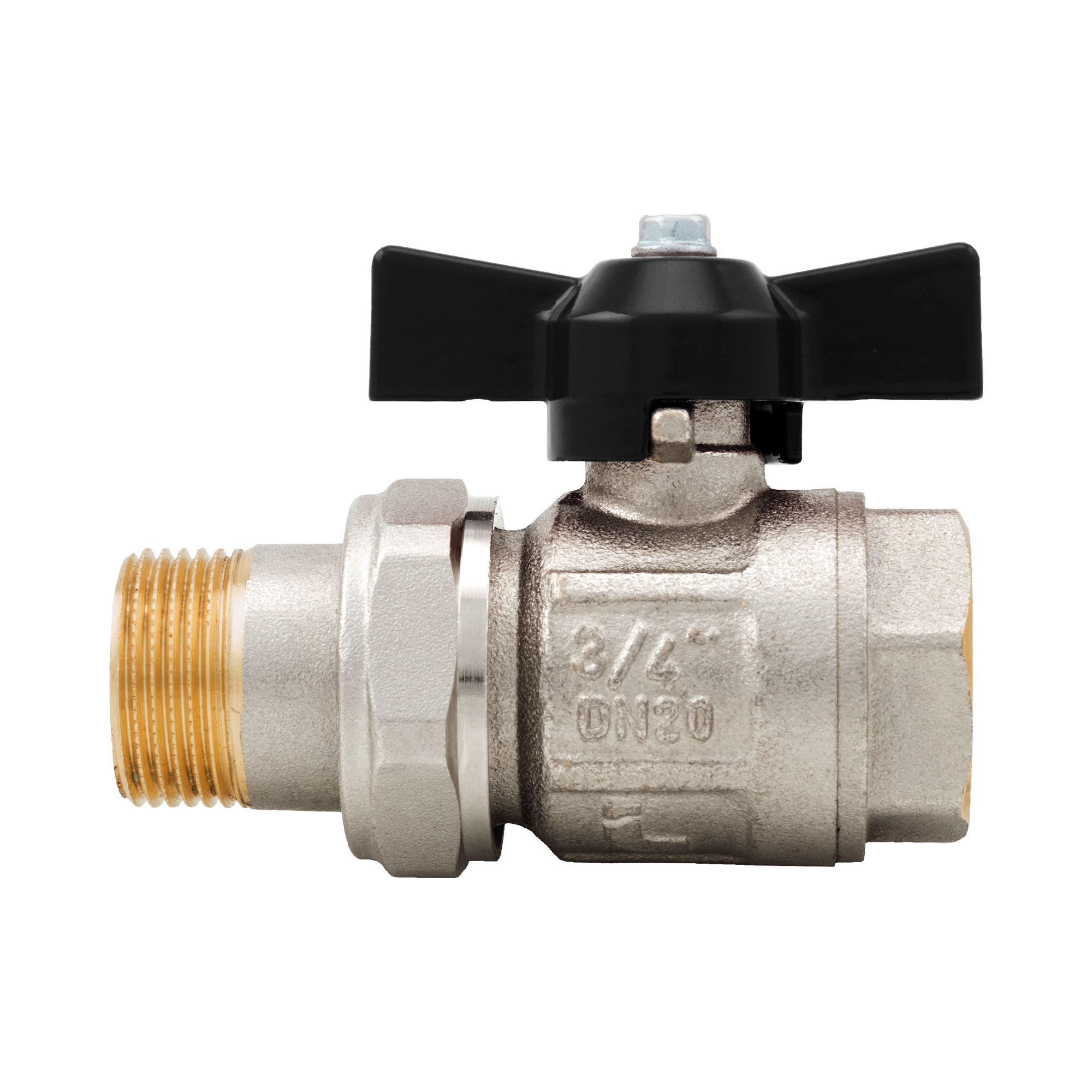

Ideal ball valve, full flow for manifolds

Male/female threads.
T handle in aluminium.
Body in nickel-plated brass.
Minimum and maximum working temperatures: -20°C, 150°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
1”1/2 and 2” size with flat seat and lever handle in steel.

SizePressureCodePackingSTEP
1/2" (DN 15)50bar/725psi0980012N8/112
3/4" (DN 20)40bar/580psi0980034N6/54
1" (DN 25)40bar/580psi0980100N5/40
1"1/4 (DN 32)30bar/435psi0980114N3/27
1"1/2 (DN 40)30bar/435psi0980112N2/12
2" (DN 50)25bar/362.5psi0980200N2/10

Range FULL FLOW BALL VALVES: IDEAL
