Plug for radiators with air vent valve - 299
Plug for radiators with air vent valve - 299

299
Plug for radiators with air vent valve

Body in chrome-plated brass.
Nominal pressure: 10 bar.
Maximum working temperature: 110°C.
Available sizes: 1” right and 1” left.
Threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
1" DX10bar/145psi2990100D10/70
1" SX10bar/145psi2990100S10/70

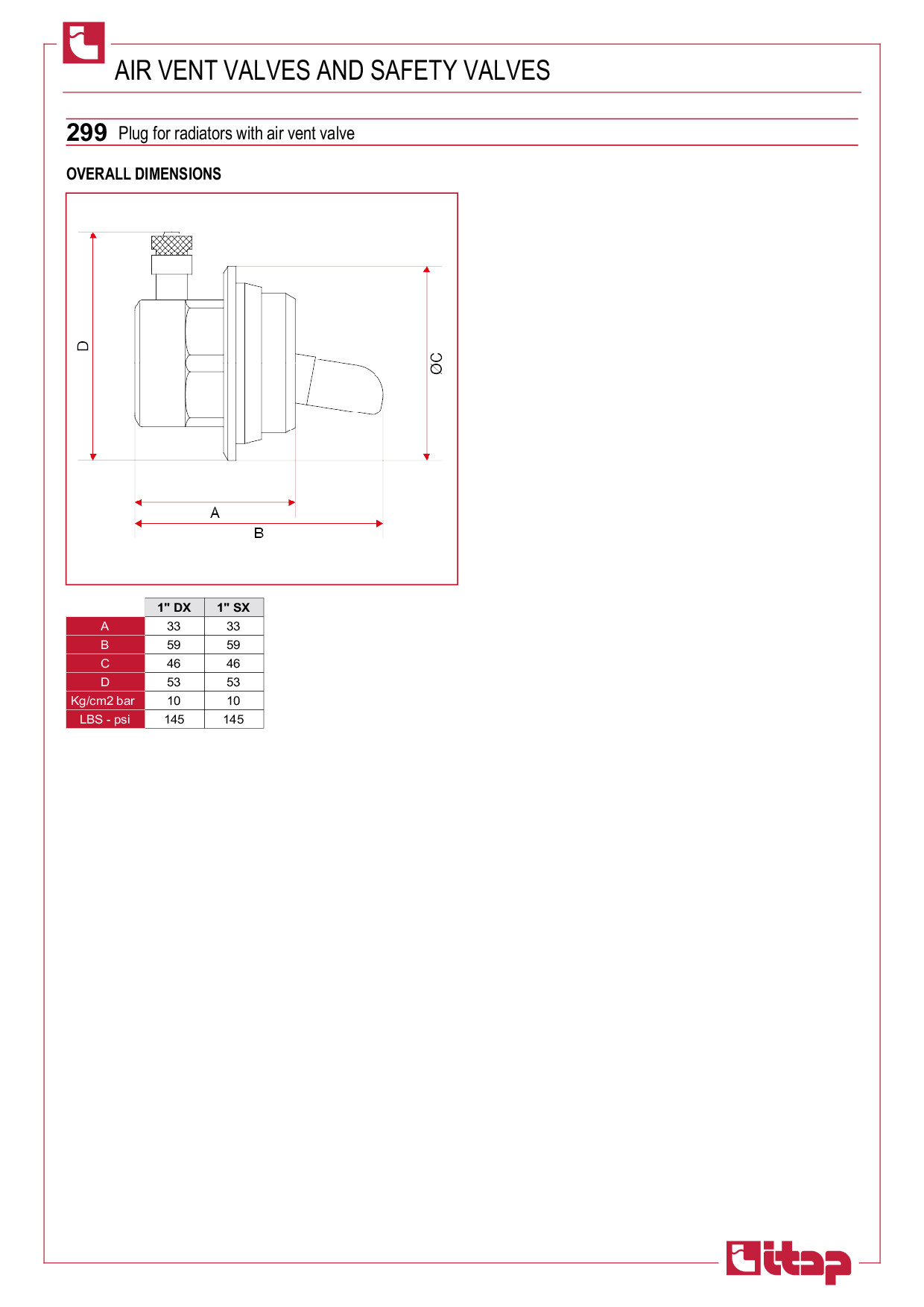

Drawing 299
Download PDF
Materials 299
Download PDF
Installation 299
Download PDF
Declaration of Conformity 299
Download PDF
Technical featuresTechnical features
