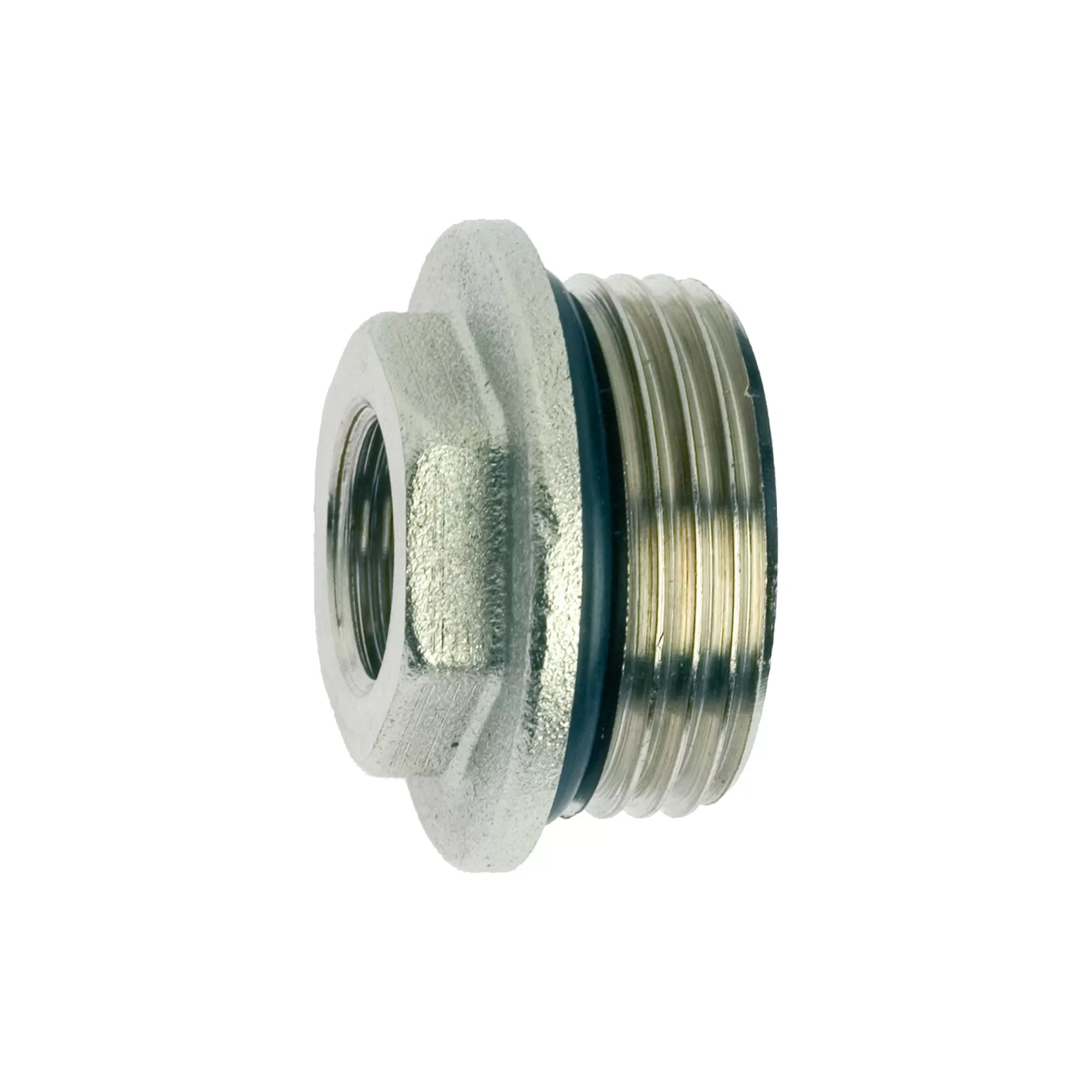

Male end fitting with o-ring - 495
Male end fitting with o-ring - 495

495
Male end fitting with o-ring

Available sizes: 3/4”x3/8”, 3/4”x1/2”, 1”x3/8”, 1”x1/2”, 1”1/4×1/2”.
Body in nickel-plated brass.
O-ring in EPDM.
Maximum working temperature: 110°C.
Threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
3/4"X3/8"10bar/145psi495003403826/598
3/4"X1/2"10bar/145psi495003401226/676
1"X3/8"10bar/145psi495010003816/352
1"X1/2"10bar/145psi495010001216/352
1"1/4X1/2"10bar/145psi495011401212/264
Drawing 495
Download PDF
Materials 495
Download PDF
Declaration of Conformity 495
Download PDF
