Thermometer union complete with thermometer - 492BC
Thermometer union complete with thermometer - 492BC

492BC

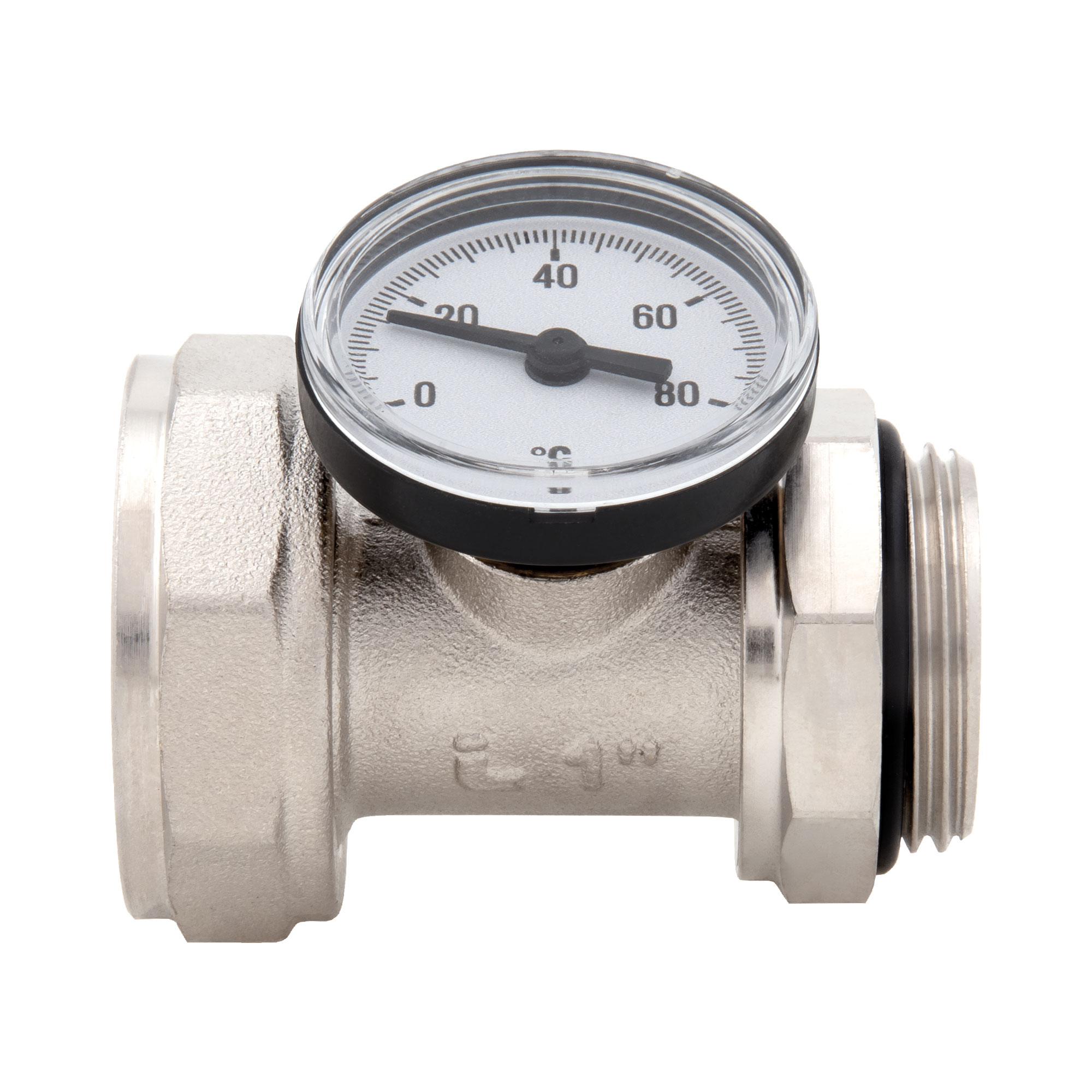

Thermometer union complete with thermometer

Available sizes: 1”Mx1”1/4F – 1”1/4Mx1”1/2F.
Body in nickel-plated brass.
O-ring in NBR.
Thermometer scale: 0°C-80°C.
Diameter: mm.40.
Maximum working temperature: 80°C.
Threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Suitable for ball valve art. 098SDC and 298SDC.

SizePressureCodePacking
1" (DN 25)10bar/145psi4920100BC4/56
1"1/4 (DN 32)10bar/145psi4920114BC4/48
Drawing 492BC
Download PDF
Materials 492BC
Download PDF
Declaration of Conformity 492BC
Download PDF
Technical featuresTechnical features
