Backplate female elbow - 048
Backplate female elbow - 048

048

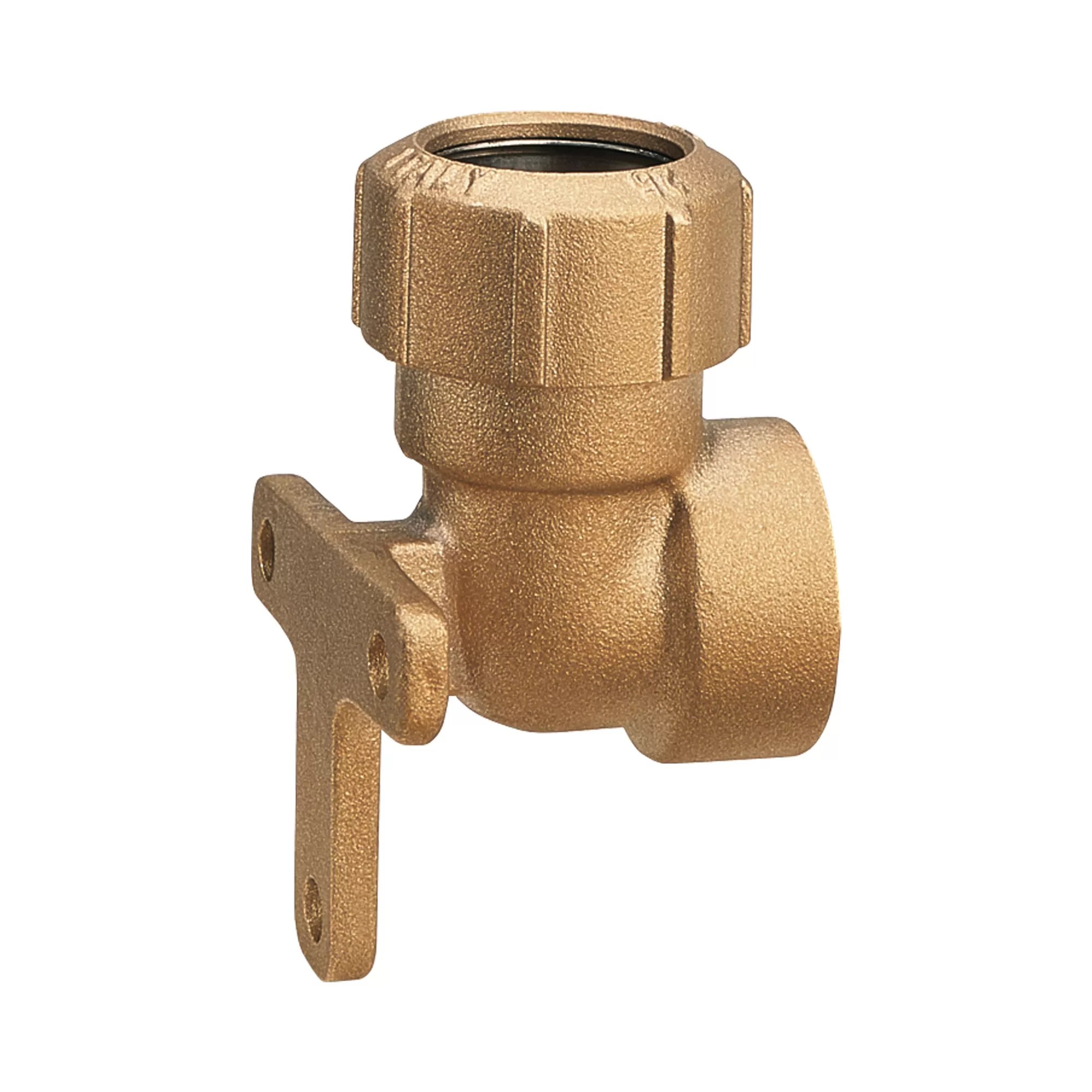

Backplate female elbow

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.
Female threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizeCodePacking
1/2"x20048001202015/120
3/4"x25048003402512/96
1"x3204801000328/64
Drawing 048
Download PDF
Materials 048
Download PDF
Installation 048
Download PDF
Declaration of Conformity 048
Download PDF
