Build-in valve with handle - 138
Build-in valve with handle - 138

138

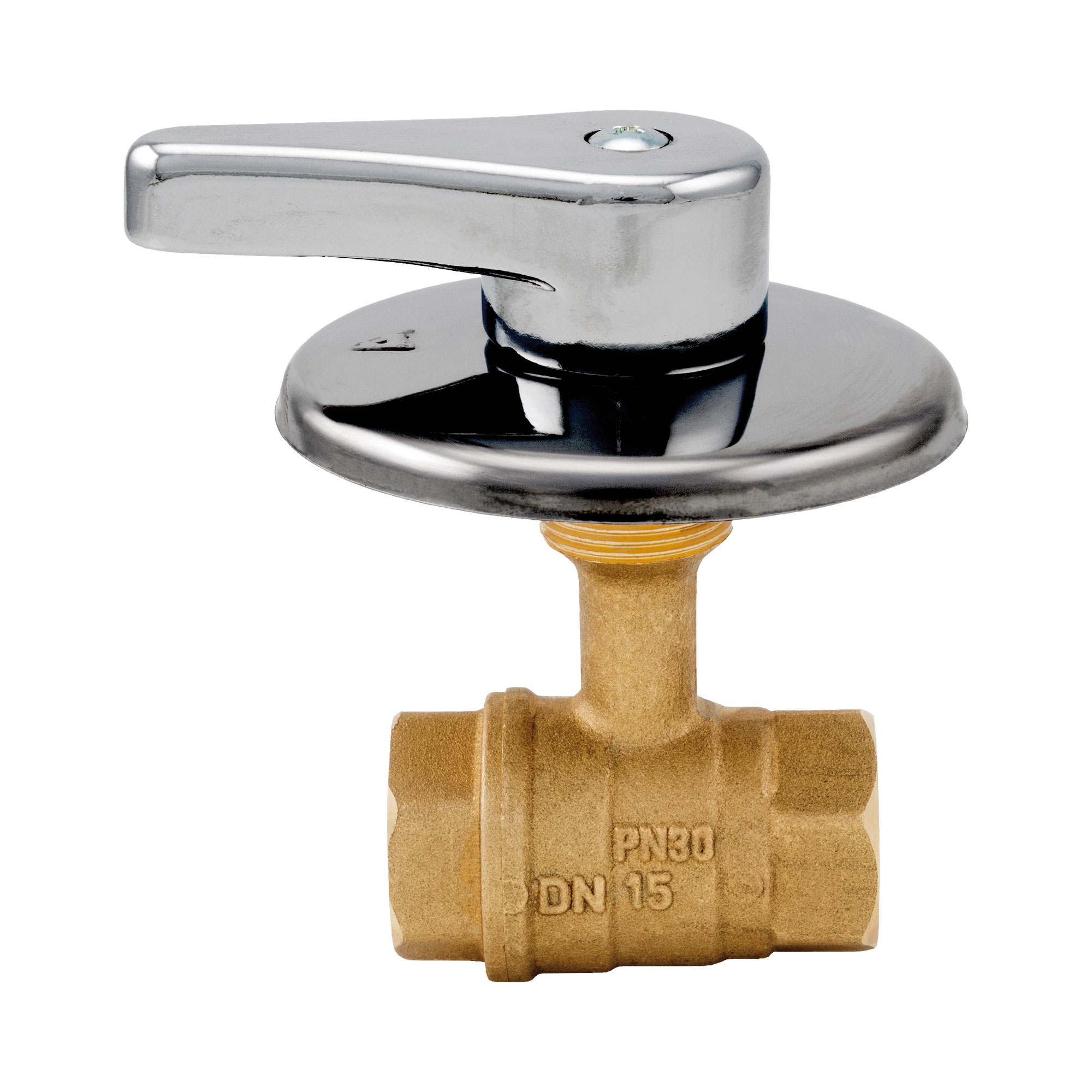

Build-in valve with handle

Full flow.
Female/female threads.
Body in brass.
Cover plate in stainless steel.
Lever handle in chrome-plated brass.
Minimum and maximum working temperatures: 0°C, 110°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
1/2" (DN 15)30bar/435psi13800128/48
3/4" (DN 20)25bar/362.5psi13800345/30
1" (DN 25)25bar/362.5psi13801004/24

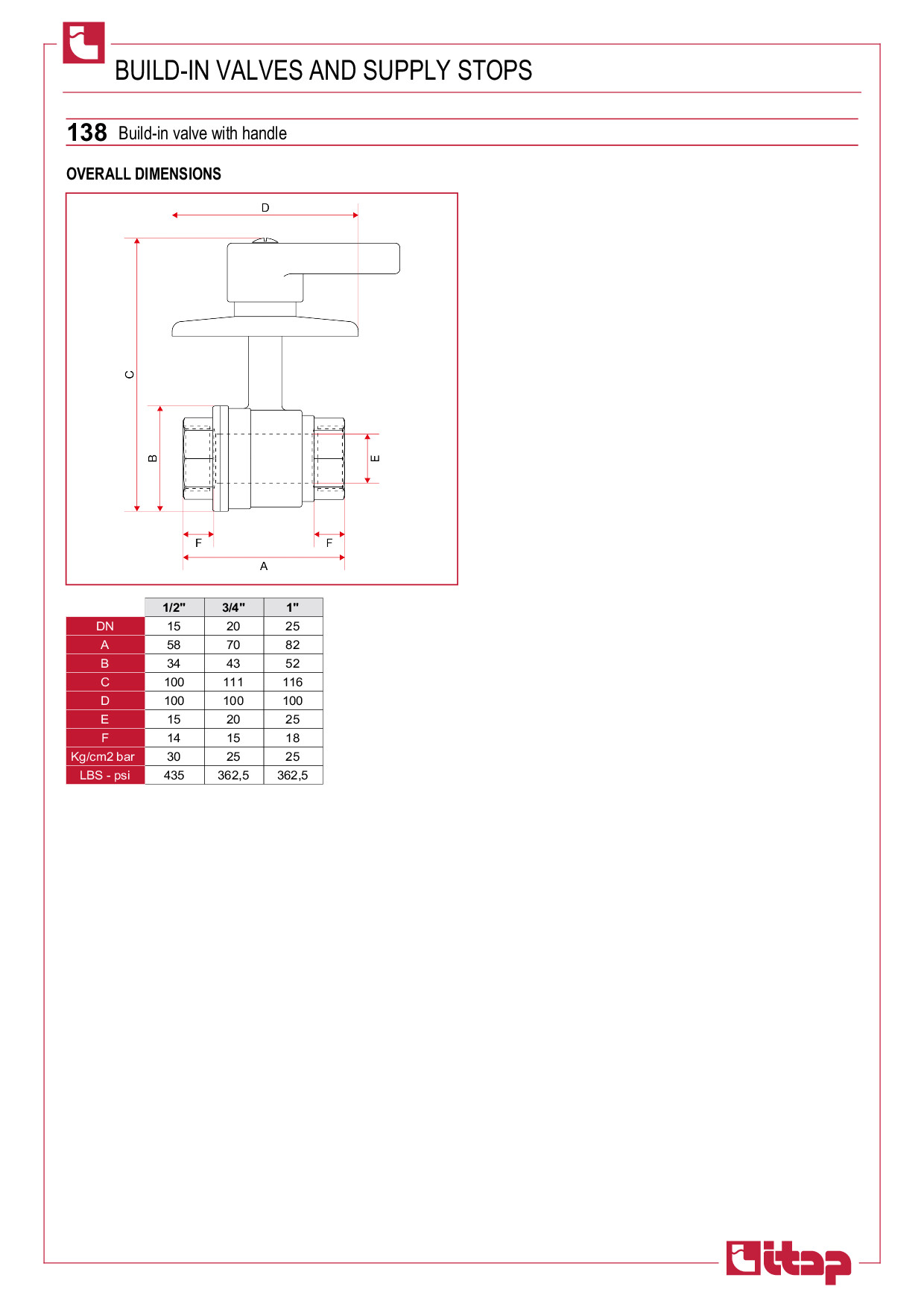

Drawing 138
Download PDF
Materials 138
Download PDF
Declaration of Conformity 138
Download PDF
Technical featuresTechnical features
