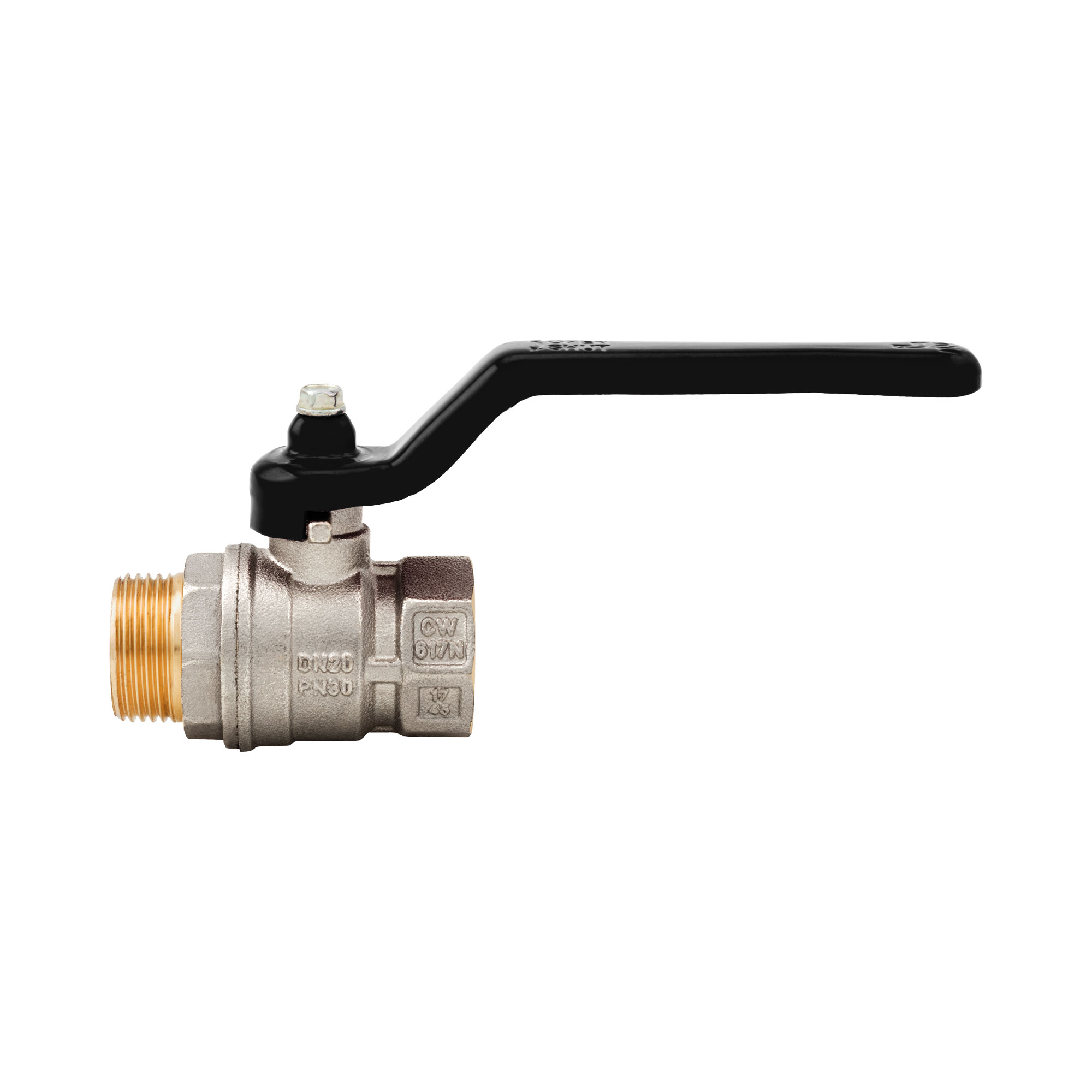

Vienna ball valve, standard flow

Male/female threads.
Lever handle in steel.
Body in nickel-plated brass.
Minimum and maximum working temperatures: -20°C, 150°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePackingSTEP
1/4" (DN 8)50bar/725psi0910014N12/144
3/8" (DN 10)50bar/725psi0910038N12/144
1/2" (DN 15)30bar/435psi1170012N15/120
3/4" (DN 20)30bar/435psi1170034N8/64
1" (DN 25)30bar/435psi1170100N6/48
1"1/4 (DN 32)25bar/362.5psi1170114N4/32
1"1/2 (DN 40)25bar/362.5psi1170112N2/16
2" (DN 50)25bar/362.5psi1170200N2/10
Drawing 117N
Download PDF
Materials 117N
Download PDF
Installation 117N
Download PDF
Pressure drop diagram 117N
Download PDF
Pressure-temperature diagram 117N
Download PDF
Declaration of Conformity 117N
Download PDF
