117

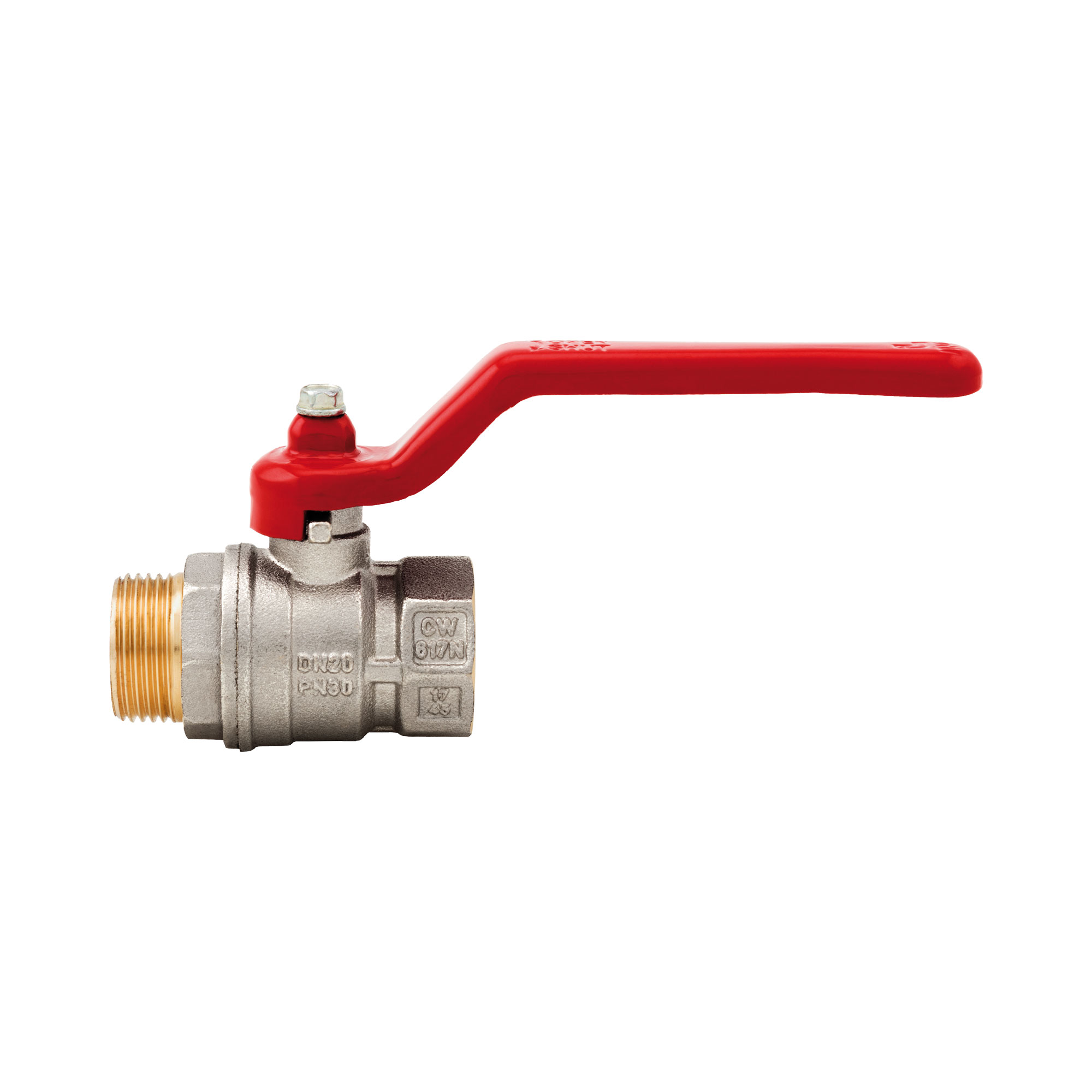

Vienna ball valve, standard flow

Male/female threads.
Lever handle in steel.
Body in nickel-plated brass.
Minimum and maximum working temperatures: -20°C, 150°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePackingSTEP
1/4" (DN 8)50bar/725psi091001412/144
3/8" (DN 10)50bar/725psi091003812/144
1/2" (DN 15)30bar/435psi117001215/120
3/4" (DN 20)30bar/435psi11700348/64
1" (DN 25)30bar/435psi11701006/48
1"1/4 (DN 32)25bar/362.5psi11701144/32
1"1/2 (DN 40)25bar/362.5psi11701122/16
2" (DN 50)25bar/362.5psi11702002/10

Range STANDARD FLOW BALL VALVES: VIENNA
