MINI BALL VALVES

126

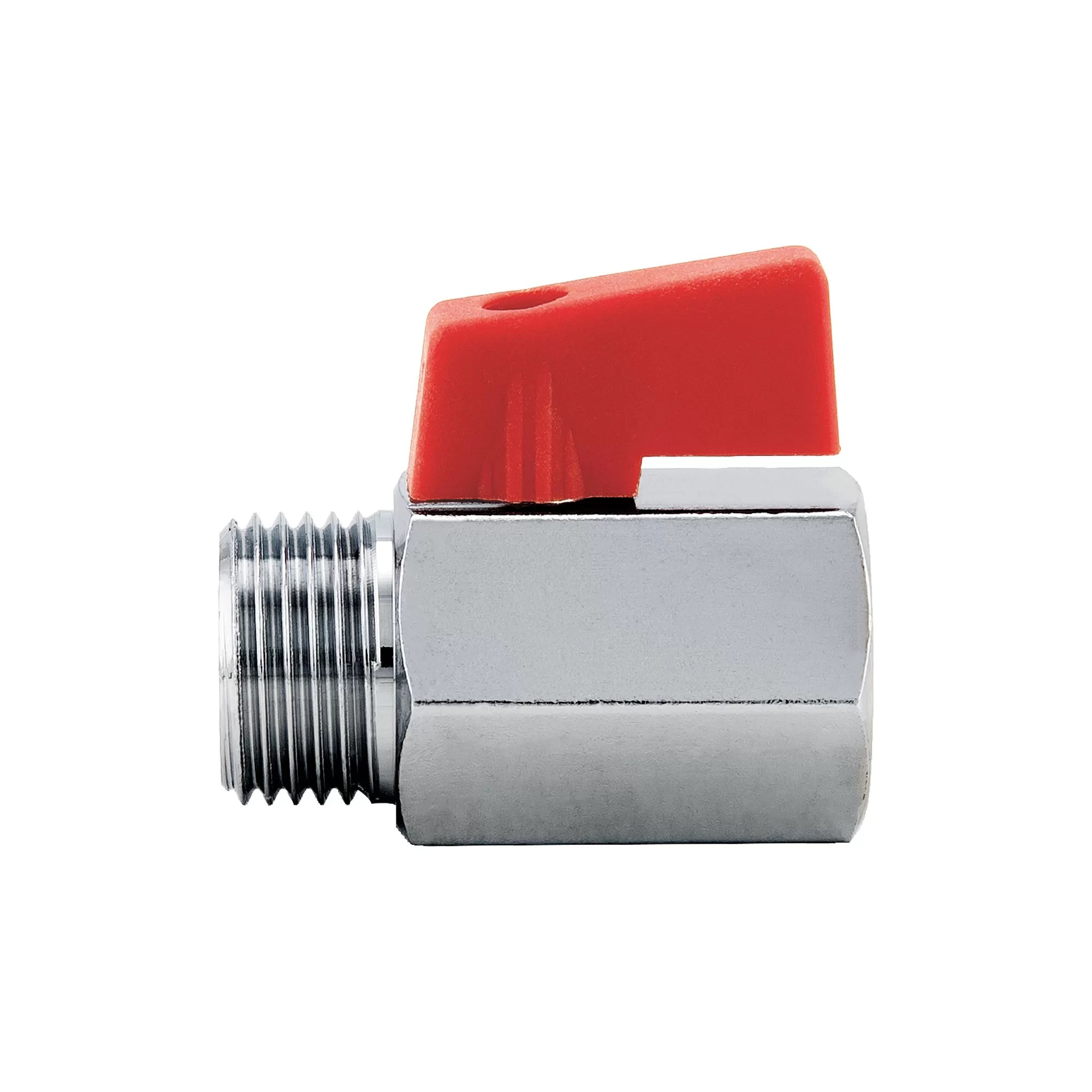

MINI ball valves

Description

Male/female threads.
Body in chrome-plated brass.
Lever handle in polymer.
Minimum and maximum temperature: 0°C; 70°C (maximum operating temperature);
90°C (maximum peak temperature).
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

Sizes

Size	Pressure	Code	Packing
1/8" (DN 6)	10bar/145psi	1260018	20/280
1/4" (DN 8)	10bar/145psi	1260014	20/280
3/8" (DN 10)	10bar/145psi	1260038	20/280
1/2" (DN 15)	10bar/145psi	1260012	20/220
3/4" (DN 20)	10bar/145psi	1260034	15/135
