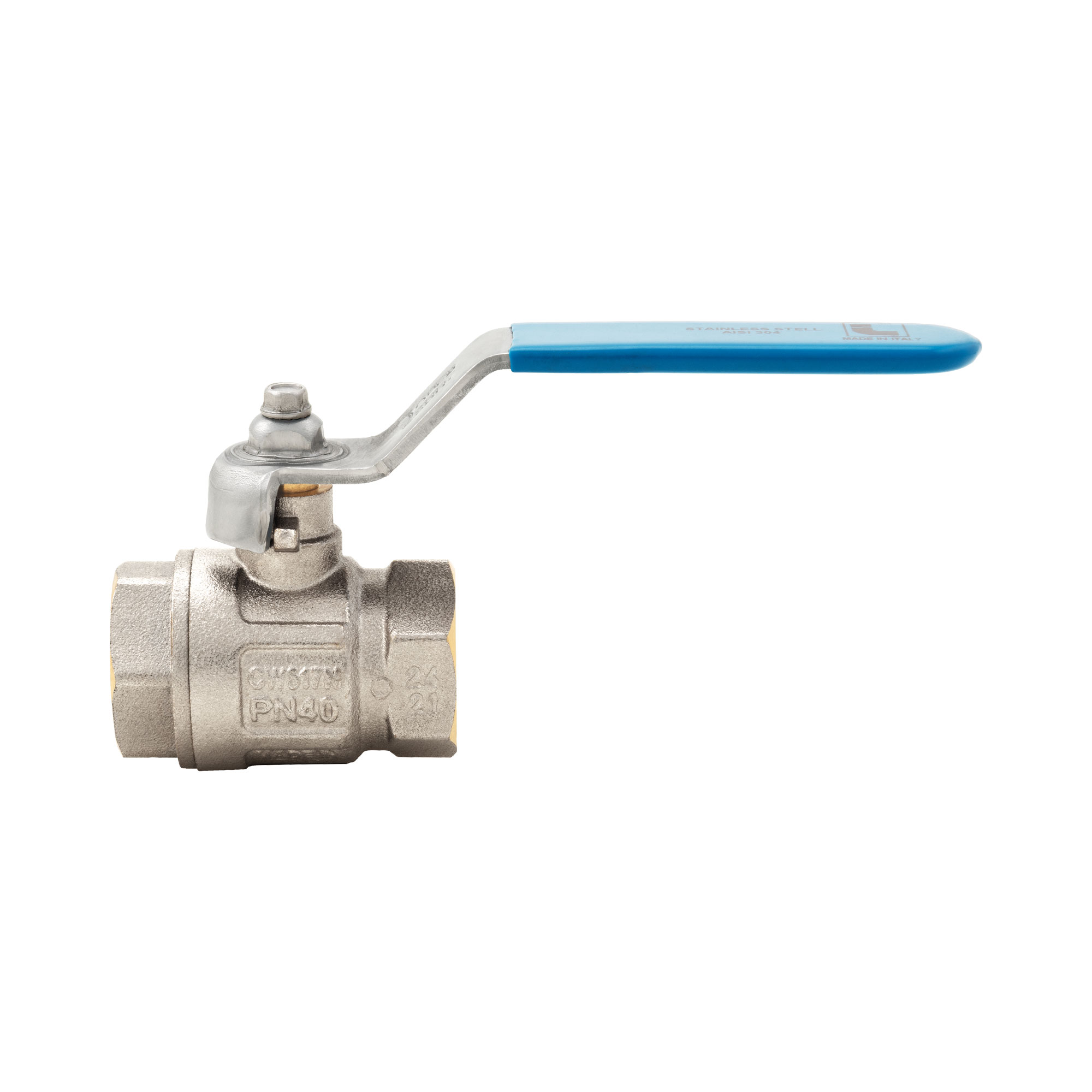

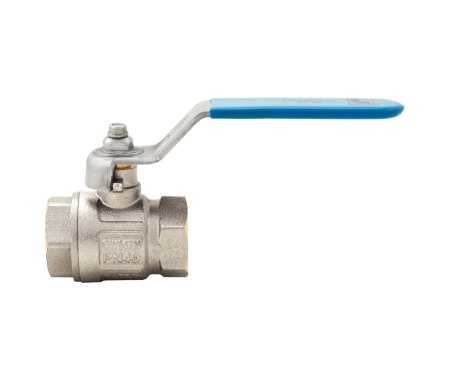

Ideal ball valve, full flow, with flat lever handle in stainless steel - 290XB
Ideal ball valve, full flow, with flat lever handle in stainless steel - 290XB

290XB
Ideal ball valve, full flow, with flat lever handle in stainless steel

Female/female threads.
Flat lever handle in lined stainless steel AISI304.
Body in nickel-plated brass.
Minimum and maximum working temperatures: -20°C, 150°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Available also with NPT thread in the sizes 1/4” through 2”.

SizePressureCodePacking
1/4" (DN 8)50bar/725psi2900014XB12/144
3/8" (DN 10)50bar/725psi2900038XB12/144
1/2" (DN 15)50bar/725psi2900012XB12/108
3/4" (DN 20)40bar/580psi2900034XB8/64
1" (DN 25)40bar/580psi2900100XB6/48
1"1/4 (DN 32)30bar/435psi2900114XB4/32
1"1/2 (DN 40)30bar/435psi2900112XB2/16
2" (DN 50)25bar/362.5psi2900200XB2/10
Drawing 290XB
Download PDF
Materials 290XB
Download PDF
Installation 290XB
Download PDF
Pressure drop diagram 290XB
Download PDF
Pressure-temperature diagram 290XB
Download PDF
Declaration of Conformity 290XB
Download PDF
Technical featuresTechnical features
