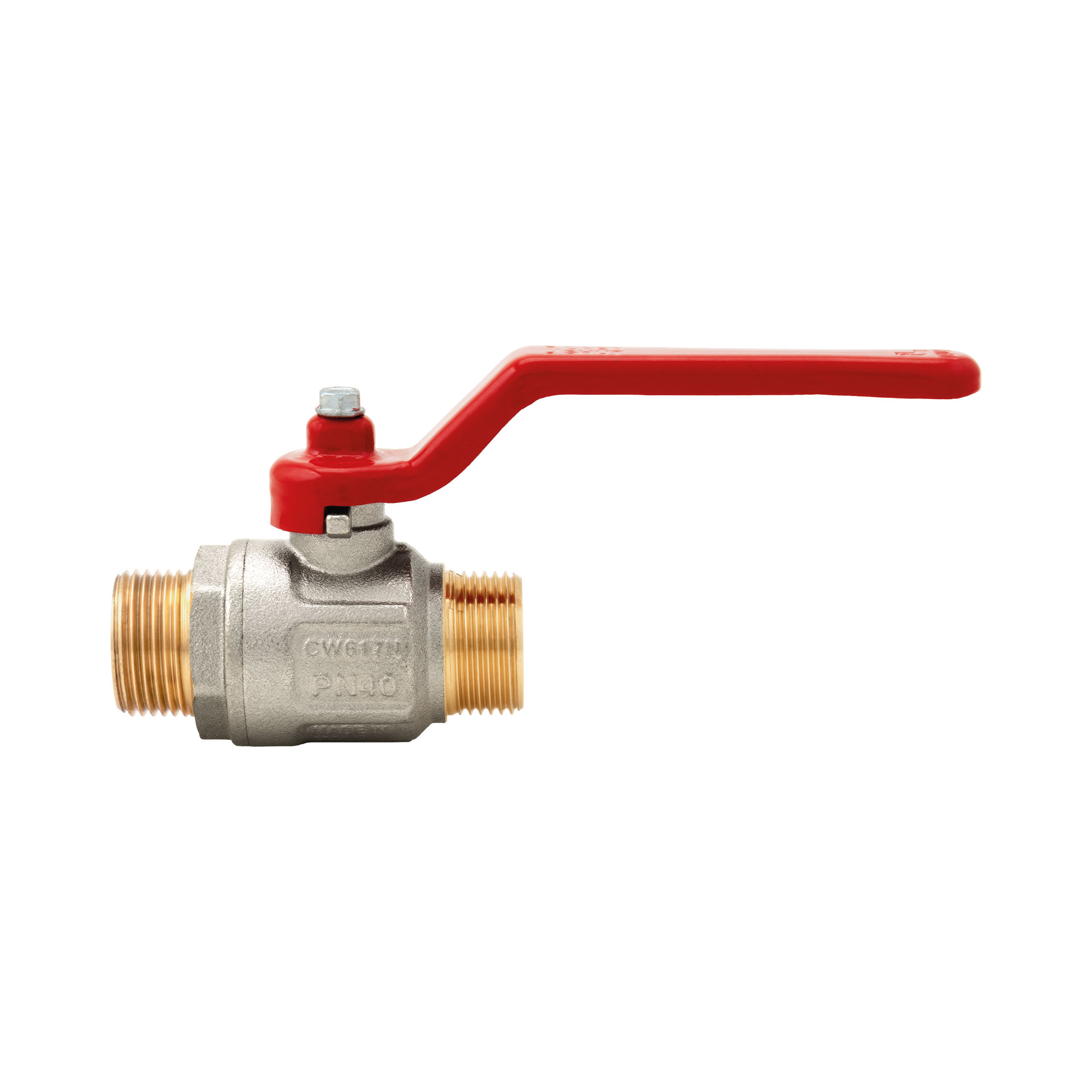

Ideal ball valve, full flow male/male thread

Male/male threads.
Lever handle in aluminium.
Body in nickel-plated brass.
Minimum and maximum working temperatures: -10°C, 95°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
1/2" (DN 15)40bar/580psi099001210/90
3/4" (DN 20)40bar/580psi099003410/60
1" (DN 25)40bar/580psi09901006/48
1"1/4 (DN 32)30bar/435psi09901144/32
1"1/2 (DN 40)30bar/435psi09901122/16
2" (DN 50)30bar/435psi09902002/10
Drawing 099
Download PDF
Materials 099
Download PDF
Pressure drop diagram 099
Download PDF
Declaration of Conformity 099
Download PDF
Technical featuresTechnical features
