093

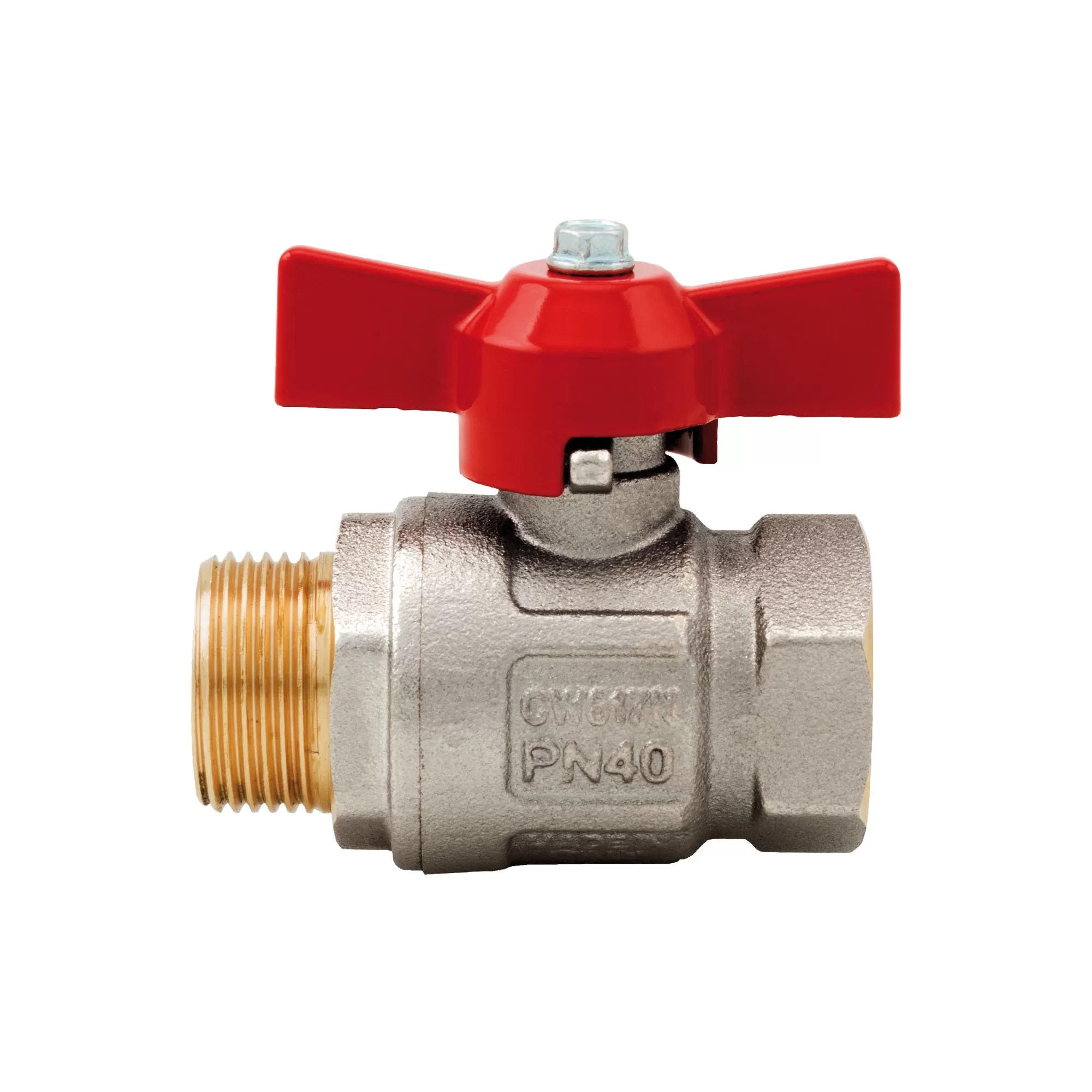

Ideal ball valve, full flow

Male/female threads.
T handle in aluminium.
Body in nickel-plated brass.
Minimum and maximum working temperatures: -20°C, 150°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePackingSTEP
1/4" (DN 8)50bar/725psi093001415/180
3/8" (DN 10)50bar/725psi093003815/180
1/2" (DN 15)50bar/725psi093001212/132
3/4" (DN 20)40bar/580psi09300348/88
1" (DN 25)40bar/580psi09301006/48
1"1/4 (DN 32)30bar/435psi09301144/32

Range FULL FLOW BALL VALVES: IDEAL
