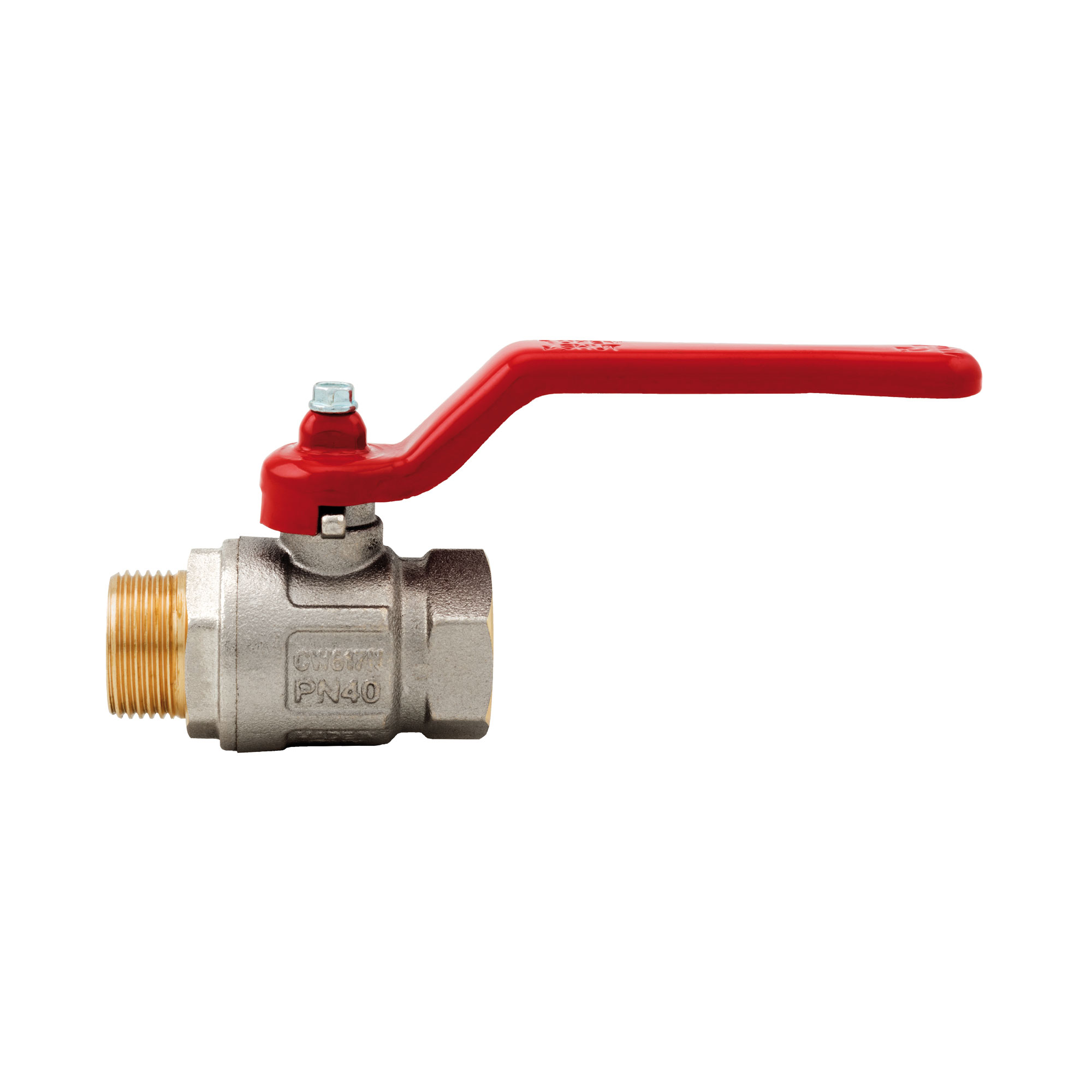

Ideal ball valve, full flow

Male/female threads.
Lever handle in steel.
Body in nickel-plated brass.
Minimum and maximum working temperatures: -20°C, 150°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePackingSTEP
1/4" (DN 8)50bar/725psi091001412/144
3/8" (DN 10)50bar/725psi091003812/144
1/2" (DN 15)50bar/725psi091001212/108
3/4" (DN 20)40bar/580psi09100348/64
1" (DN 25)40bar/580psi09101006/48
1"1/4 (DN 32)30bar/435psi09101143/24
1"1/2 (DN 40)30bar/435psi09101122/16
2" (DN 50)25bar/362.5psi09102002/10
Drawing 091
Download PDF
Materials 091
Download PDF
Installation 091
Download PDF
Pressure drop diagram 091
Download PDF
Pressure-temperature diagram 091
Download PDF
Declaration of Conformity 091
Download PDF
