125

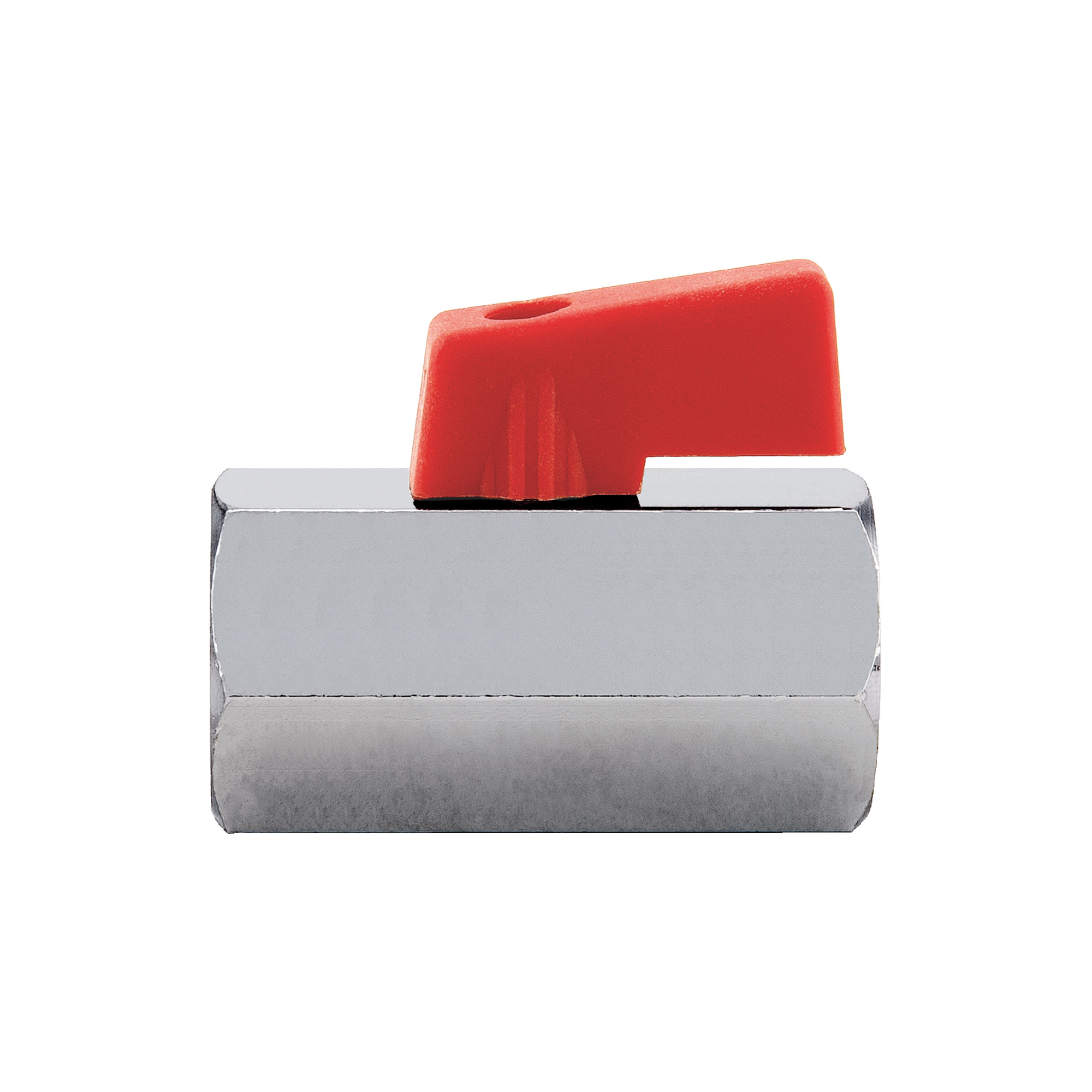

MINI ball valves

Female/female threads.
Body in chrome-plated brass.
Lever handle in polymer.
Minimum and maximum temperature: 0°C; 70°C (maximum operating temperature);
90°C (maximum peak temperature).
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Mention “N“ in the code only to order the black handle.

SizePressureCodePackingSTEP
1/8" (DN 6)10bar/145psi1250018/N20/240
1/4" (DN 8)10bar/145psi1250014/N20/240
3/8" (DN 10)10bar/145psi1250038/N20/280
1/2" (DN 15)10bar/145psi1250012/N20/200
3/4" (DN 20)10bar/145psi1250034/N15/135
