475

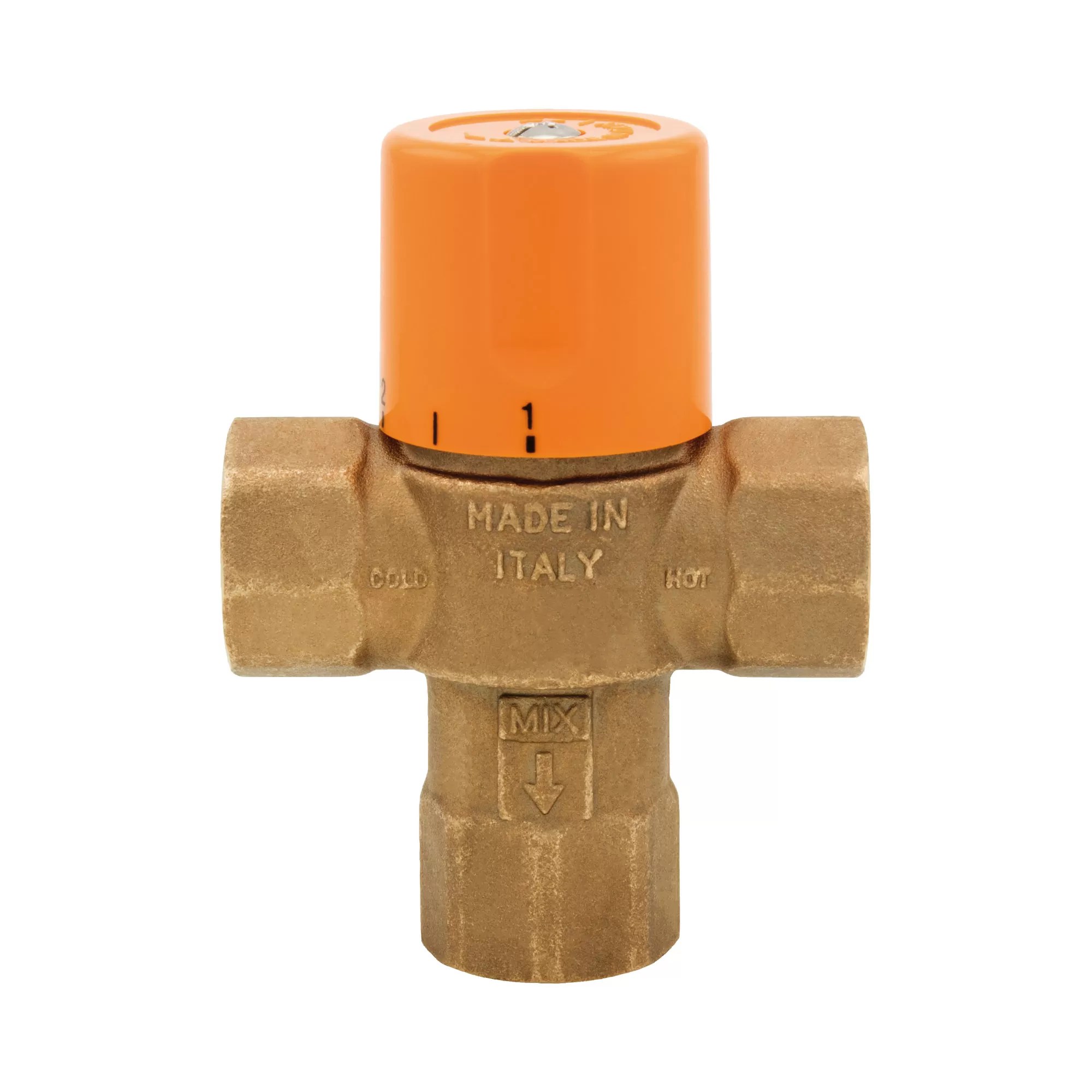

Thermostatic mixing valve for solar heating systems

Body in brass.
Female threads.
Nominal pressure: 10 bar.
Maximum working temperature: 110°C.
Setting range: from 35°C to 55°C.
KV= 2,17 m3/h.
Threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
3/4" (DN 20)10bar/145psi47500341/12
1" (DN 25)10bar/145psi47501001/12
Drawing 475
Download PDF
Materials 475
Download PDF
Pressure drop diagram 475
Download PDF
Declaration of Conformity 475
Download PDF
Technical featuresTechnical features
