193

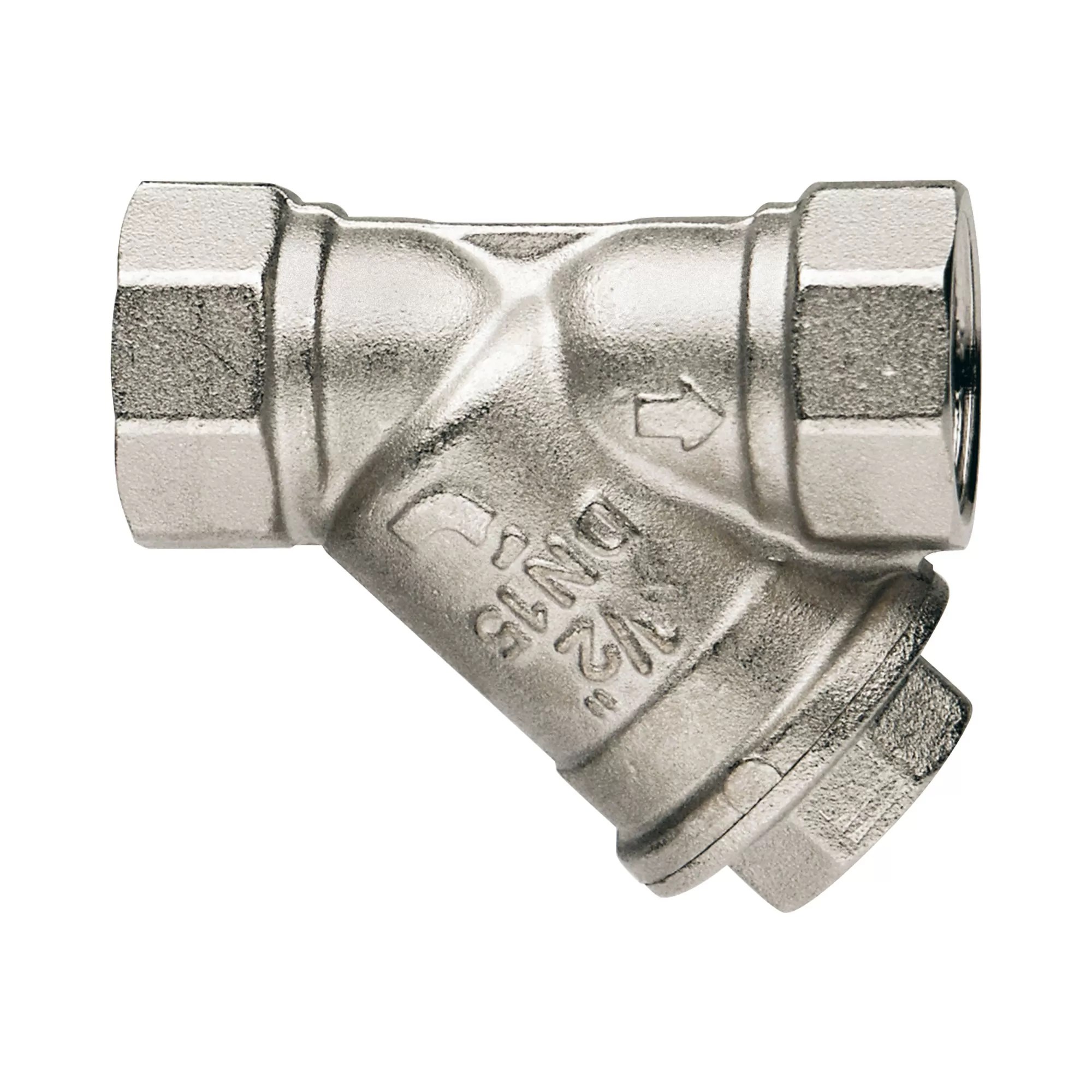

Nickel-plated Y strainer

Suitable for domestic water services, heating and air-conditioning plants, compressed air systems.

Female/female threads and inspection plug.
Body in nickel-plated brass.
Minimum and maximum working temperatures: -20°C, 110°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Filtration degree: 500µm.

SizePressureCodePacking
1/4" (DN 8)20bar/290psi193001420/160
3/8" (DN 10)20bar/290psi193003820/160
1/2" (DN 15)20bar/290psi193001220/160
3/4" (DN 20)20bar/290psi193003410/80
1" (DN 25)20bar/290psi19301007/56
1"1/4 (DN 32)20bar/290psi19301144/32
1"1/2 (DN 40)20bar/290psi19301122/18
2" (DN 50)20bar/290psi19302002/10
Drawing 193
Download PDF
Materials 193
Download PDF
Installation 193
Download PDF
Pressure drop diagram 193
Download PDF
Pressure-temperature diagram 193
Download PDF
Declaration of Conformity 193
Download PDF
