Self-cleaning strainer - 189
Self-cleaning strainer - 189

189

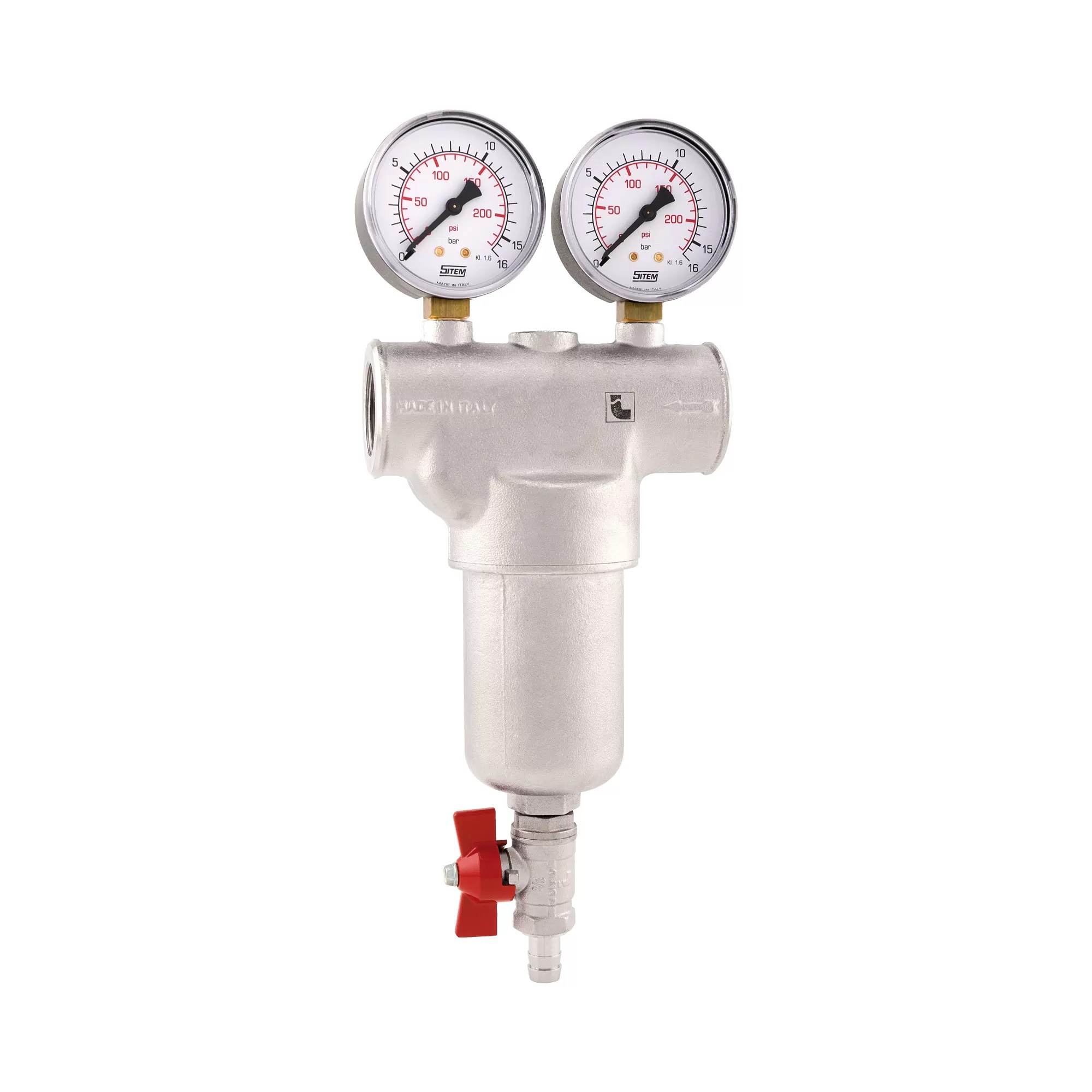

Self-cleaning strainer

Suitable for domestic water services, heating and air-conditioning plants, compressed air systems.
Supplied with an extractable straining cartridge, double pressure gauge and hose cock to dump the impurities.

Body in nickel-plated brass.
Minimum and maximum working temperatures: 0°C, 100°C in absence of steam.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Filtration degree: 300µm.

SizePressureCodePacking
1/2" (DN 15)16bar/232psi18900121/6
3/4" (DN 20)16bar/232psi18900341/6
1" (DN 25)16bar/232psi18901001/4
1"1/4 (DN 32)16bar/232psi18901141/4
1"1/2 (DN 40)16bar/232psi18901121/4
2" (DN 50)16bar/232psi18902001/4
Drawing 189
Download PDF
Materials 189
Download PDF
Pressure drop diagram 189
Download PDF
Declaration of Conformity 189
Download PDF
