MINIPRESS pressure reducing valve - 360
MINIPRESS pressure reducing valve - 360

360

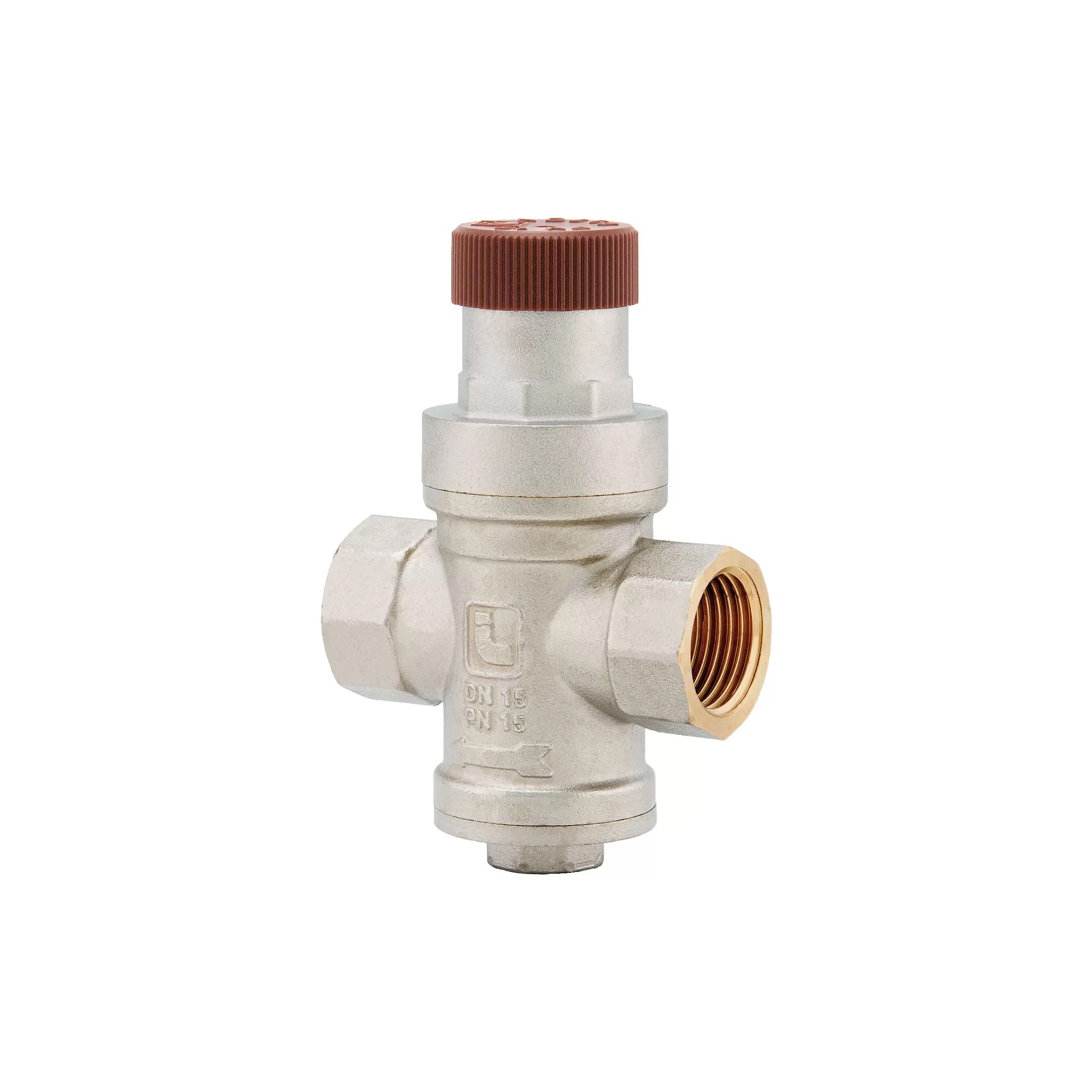

MINIPRESS pressure reducing valve

Compensated piston operation.
Female/female threads.
Body in nickel-plated brass.
Minimum and maximum working temperatures: 0°C, 80°C.
Maximum inlet pressure: 15 bar.
Outlet pressure can be adjusted between 1 and 4 bar.
Factory preadjustment 3 bar.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
1/2" (DN 15)15bar/217.5psi36000124/56
3/4" (DN 20)15bar/217.5psi36000344/56
Drawing 360
Download PDF
Materials 360
Download PDF
Installation 360
Download PDF
Pressure drop diagram 360
Download PDF
Declaration of Conformity 360
Download PDF
