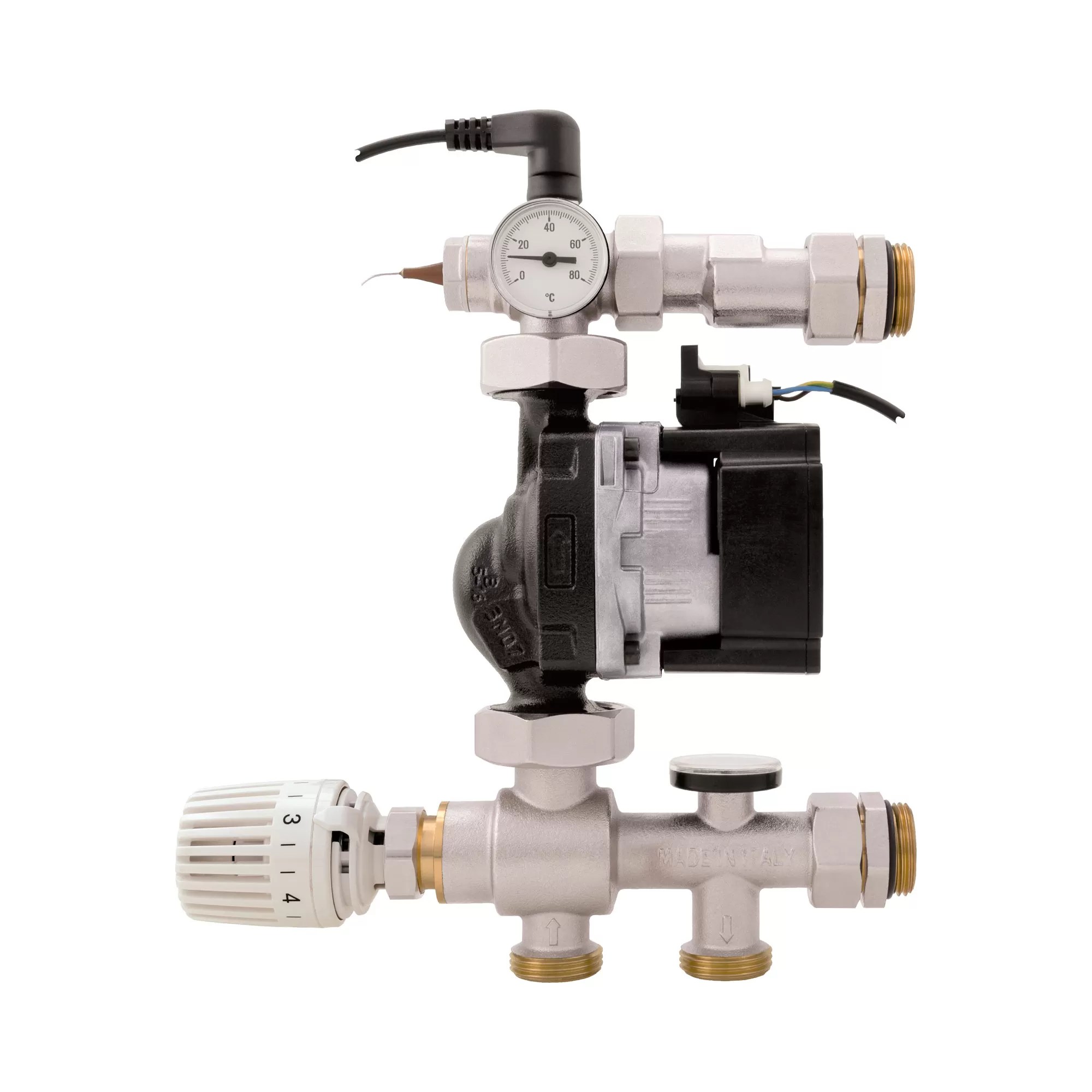

Consisting of:
– 3-way mixing valve
– Thermostatic head with built-in sensor
– Safety cutoff (factory set at 55°C)
– Thermometer (scale 0°-80°C) fitted to the flow and return pipes
– Low energy consumption pump (on demand)
Technical specifications:
– Medium fluid: water, glycolate solutions max. 30%
– Temperature setting: 20°C – 55°C
– Maximum working pressure: 6 bar
– Body and fittings: nickel-plated brass
– Available size: 1”
– ISO 228 threads (equivalent to DIN EN ISO 228 and BS EN ISO 228)
For a right installation of the set point regulating unit we suggest to use one of the following mounting brackets:
– Art. 498STK with centres distance mm 200 and offset mm 12.
– Art. 949ST.
