Mounting brackets in steel for metal boxes art. 498 and 498R - 498ST
Mounting brackets in steel for metal boxes art. 498 and 498R - 498ST

498ST

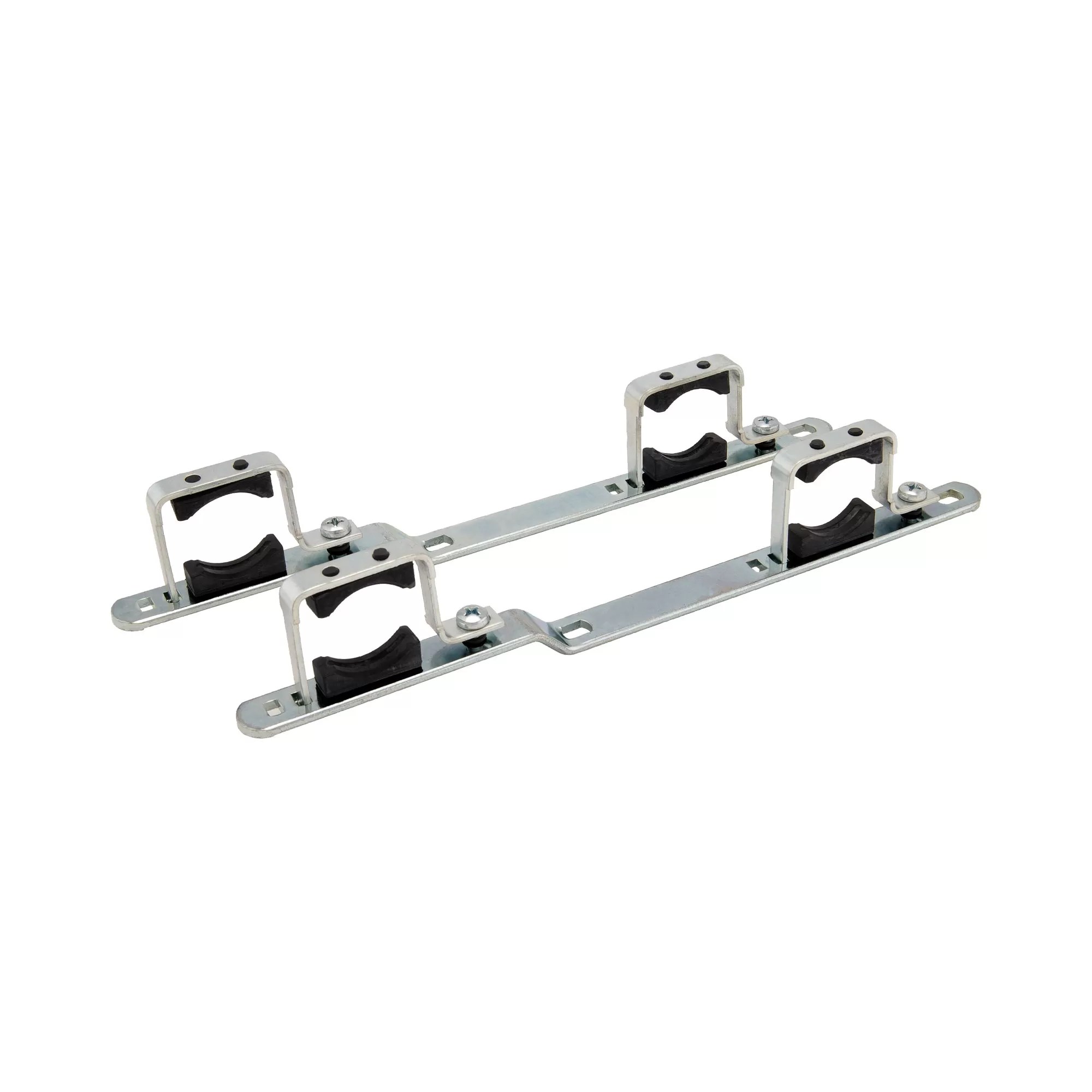

Mounting brackets in steel for metal boxes art. 498 and 498R

The set includes a pair of brackets with screws and fixings.
For installation in box art. 498 – 498R:
– 498STK: Standard version: centres distance mm. 200, offset: 12mm. Suitable for outlets pipe up to 20mm.

SizeCodePacking
1"498ST100K1/20
Drawing 498ST
Download PDF
Materials 498ST
Download PDF
Technical featuresTechnical features
