Metal box for manifolds - compact model - 498R
Metal box for manifolds - compact model - 498R

498R

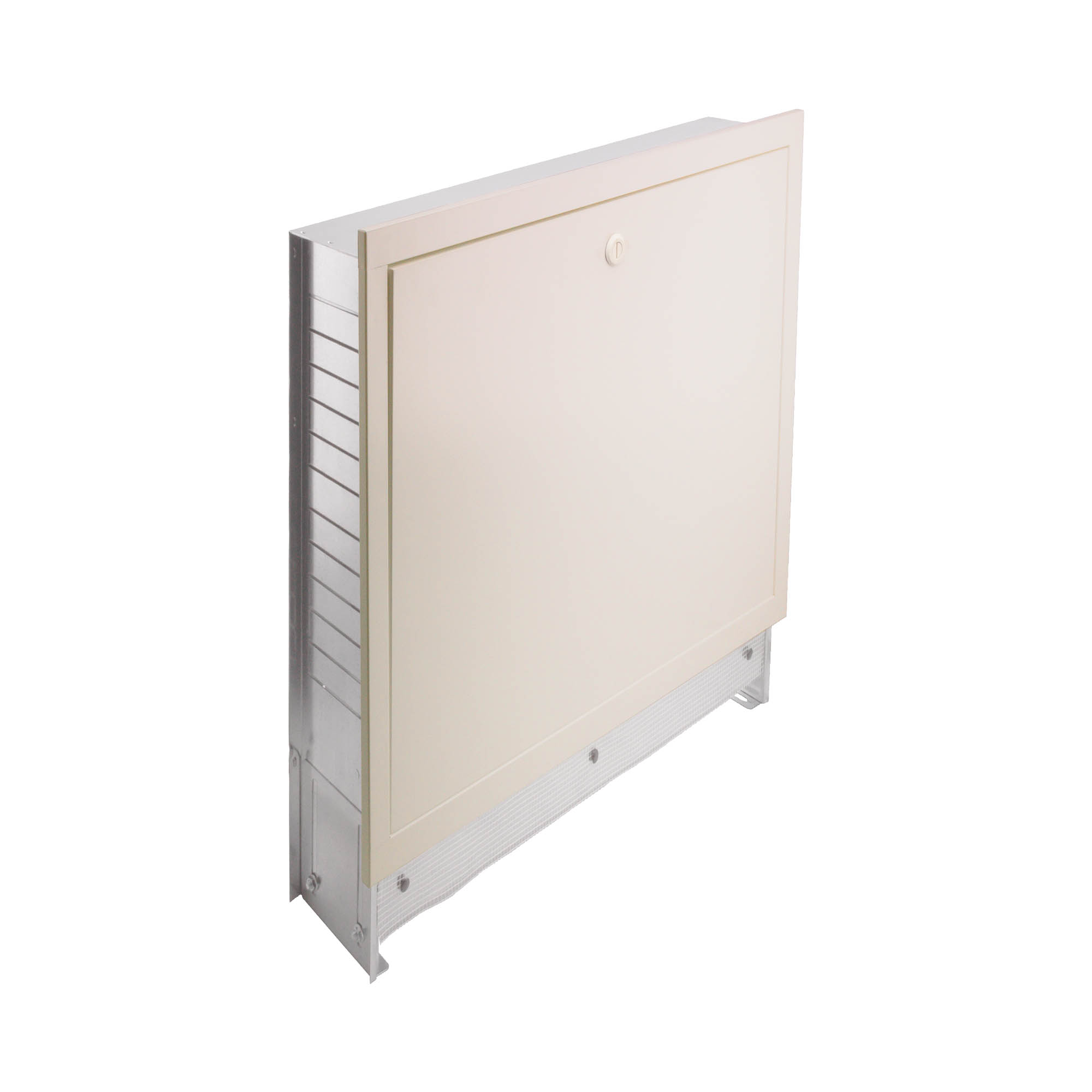

Metal box for manifolds - compact model

Complete with basement and support for floor installation.
Equipped with plaster protection.

Zincplated steel enclosure, telescopic, door frame and door.
The telescopic door frame and the door are painted.
Adjustable depth: mm. 90 to mm. 130.
Minimum depth for Itap manifolds installation: mm. 90.
Overall height: mm. 575.

SizeCodePacking
500x450x(90-130)4985004501/1
600x450x(90-130)4986004501/1
700x450x(90-130)4987004501/1
850x450x(90-130)4988504501/1
1000x450x(90-130)49810004501/1
1100x450x(90-130)49811004501/1
Drawing 498R
Download PDF
Declaration of Conformity 498R
Download PDF
