915C

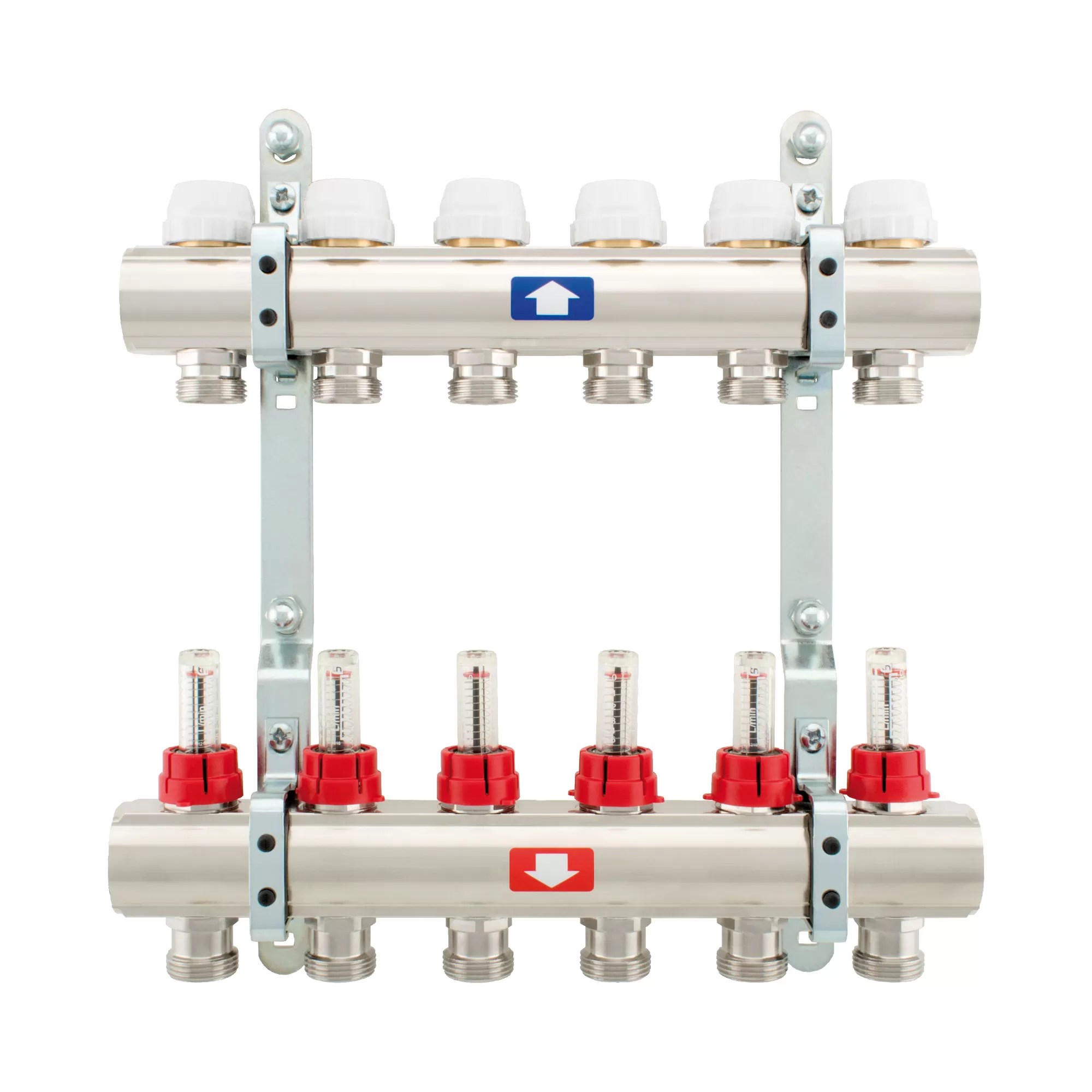

Pre-assembled manifold with flow meters

Consisting of:
– 1 return manifold in nickel-plated brass with shut-off valves preset for electrothermal actuators
– 1 flow manifold in nickel-plated brass with flow meters
– 2 complete metal brackets

Available sizes: 1”.
Maximum working pressure: 6 bar (10 bar for installation test).
Maximum working temperature: 70°C
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Outlets: from 2 to 13, 3/4” Eurokonus.
Outlet centre distance: mm.50.
Available on demand with 1/2” outlets.
In case of use of electric actuators Art. 891M and 891MR, it is suggested to use the off-centre by-pass kit Art. 860BY.
ATTENTION: manifolds will be supplied mounted on the brackets.

With standard mounting bracket 498STK: centres distance mm. 200, offset: 12mm. Suitable for outlets pipe up to 20mm.

With deeper mounting bracket 498STKM: centres distance mm. 200, offset: 30mm. Suitable for outlets pipe up to 25mm.

With deeper mounting bracket 498STKMB: centres distance mm. 211, offset: 30mm. Suitable for outlets pipe up to 25mm.
