395

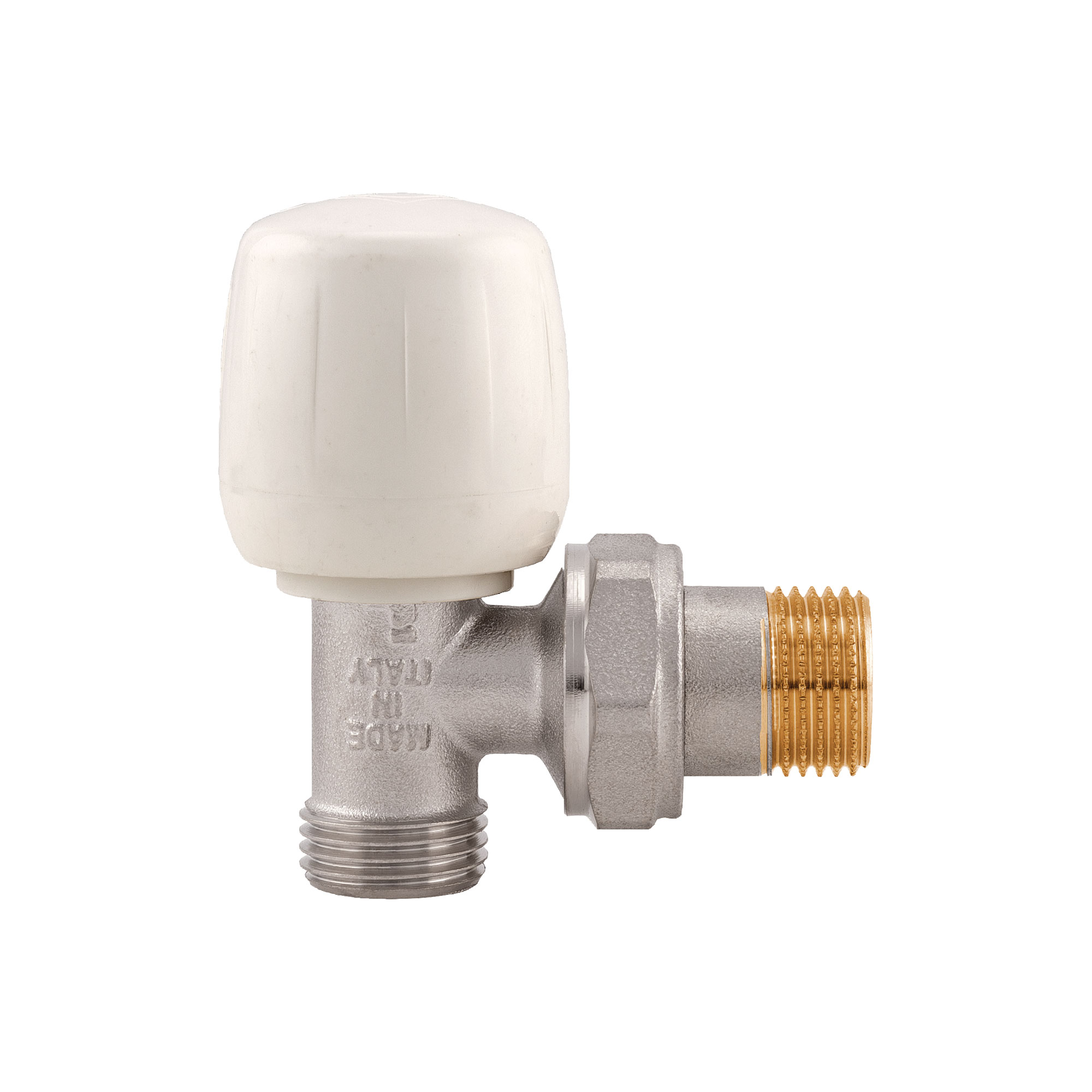

Angle manual valve

Body in nickel-plated brass.
Maximum working temperature: 110°C.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

To be used with multilayer, PEX or polybutylene piping, together with 595M or 510 Multi-Fit® connectors.
Suitable also for copper piping, together with a compression fitting art. 595.
The male thread “G” is equipped with a conical seat and inner diameter mm.16.

SizePressureCodePacking
3/8" (DN 10)10bar/145psi395003812/96
1/2" (DN 15)10bar/145psi395001212/96
