989

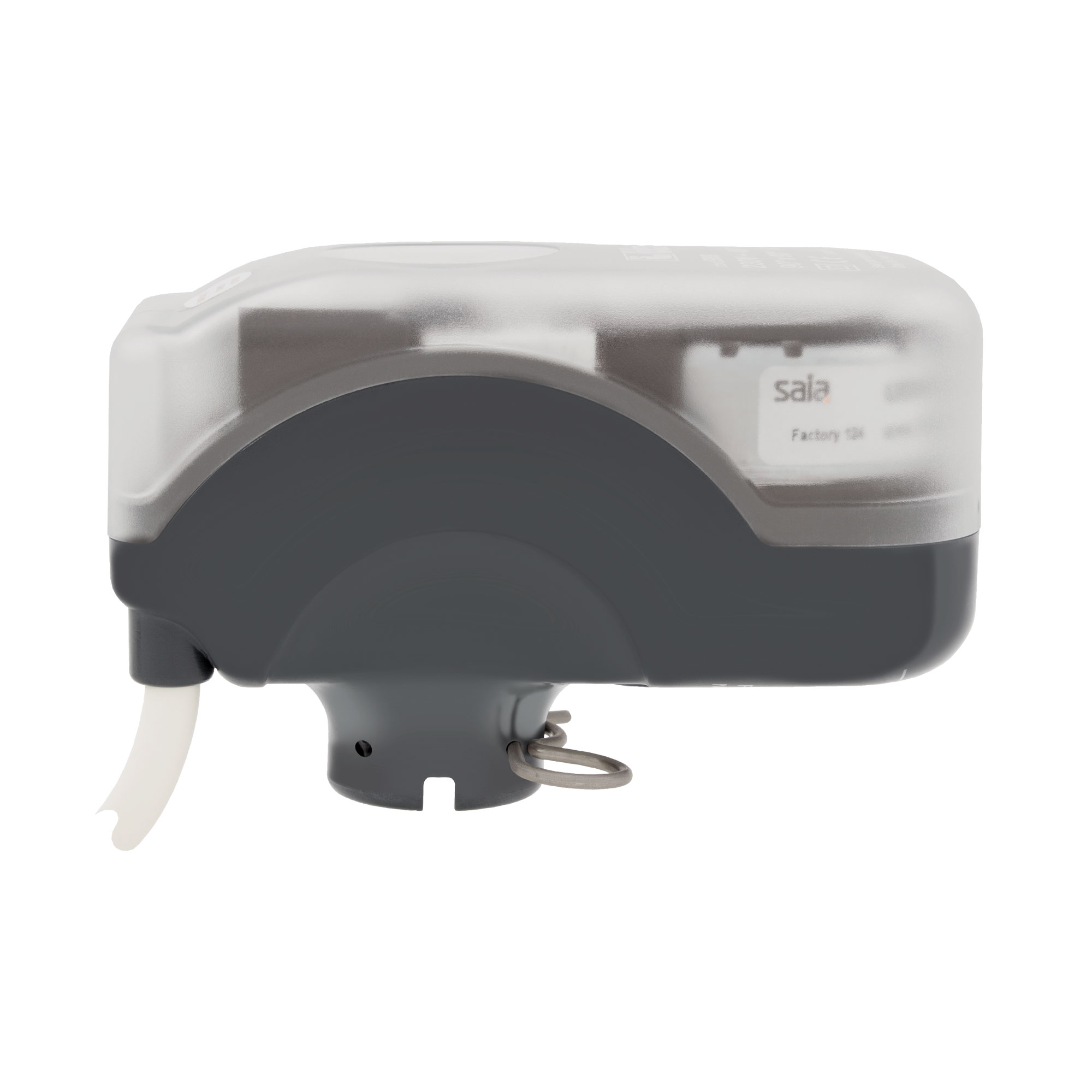

Electric actuator for zone ball valves

Unidirectional electric actuators.
Case in Kelon® (Keramic + Nylon).
Power supply voltage: 230V.
Power consumption: 4VA.
Minimum and maximum working ambient temperature: 0°C, 55°C.
Class of protection: IP44.
Operating time: 90 seconds.
Angle of rotation: 90°.
Starting torque: 10Nm.
Suitable for 2-way zone ball valves art.980 and 981.

SizeCodePacking
230V x 90sec989230901/17
Drawing 989
Download PDF
Materials 989
Download PDF
Installation 989
Download PDF
Declaration of Conformity 989
Download PDF
