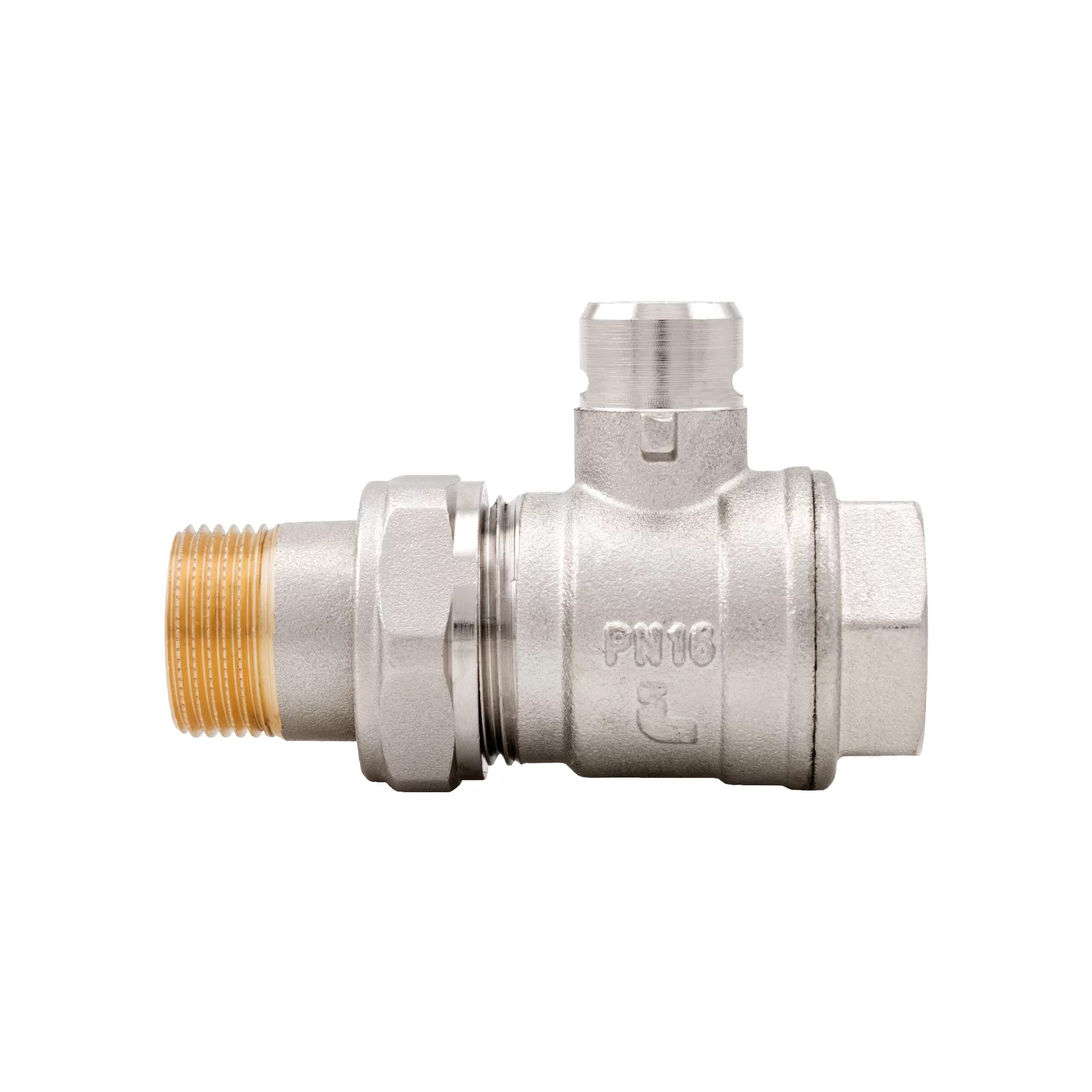

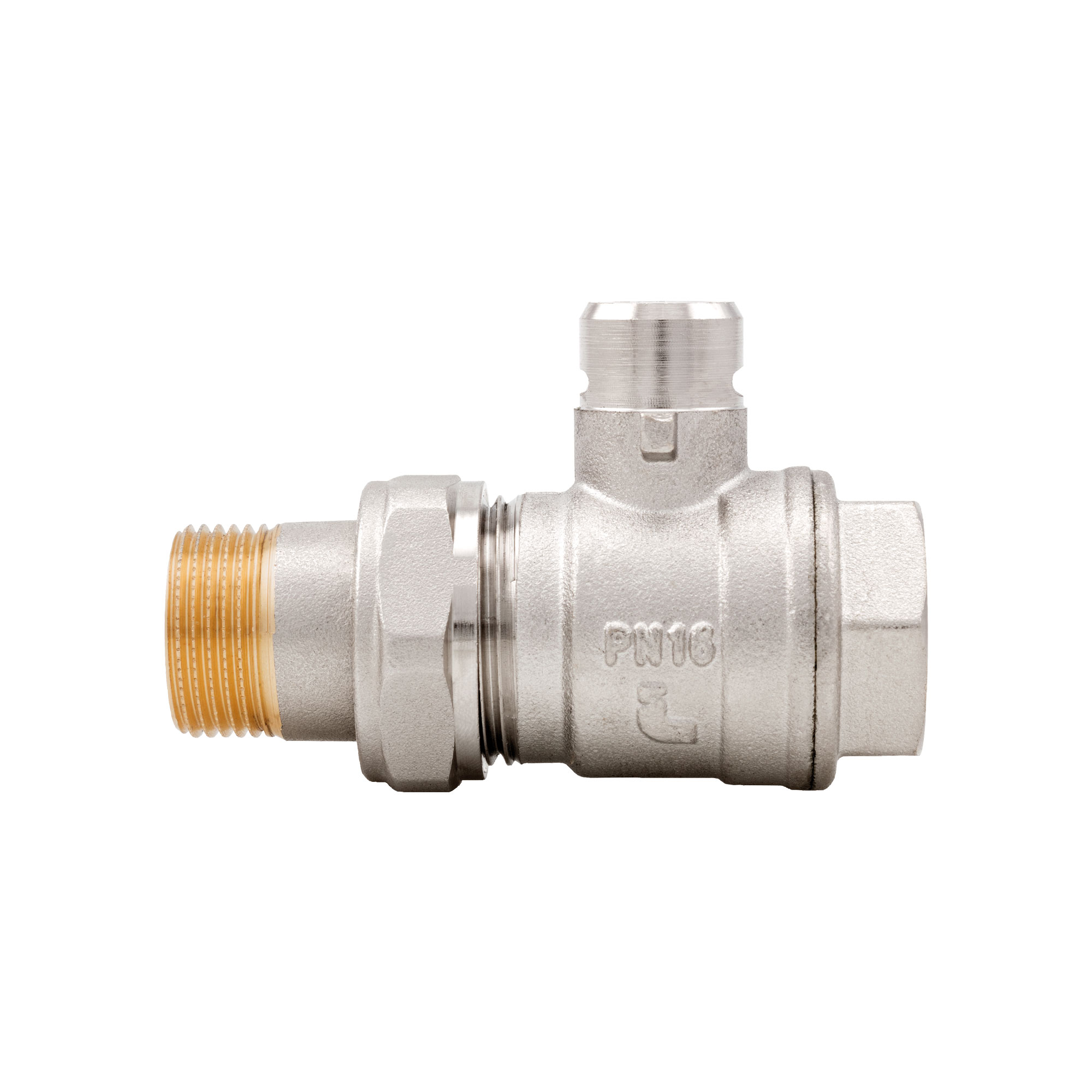

2-way zone ball valve - 980
2-way zone ball valve - 980

980
2-way zone ball valve

Body in nickel-plated brass.
Full flow ball.
Maximum working pressure: 16 bar.
Maximum differential pressure: 10bar.
Minimum and maximum working temperatures: -10°C (with antifreeze solution), 100°C.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Suitable for the electric actuators art. 989, 990 and 991.

SizePressureCodePacking
3/4" (DN 20)16bar/232psi98000341/26
1" (DN 25)16bar/232psi98001001/26
1"1/4 (DN 32)16bar/232psi98001141/14
Drawing 980
Download PDF
Materials 980
Download PDF
Installation 980
Download PDF
Pressure drop diagram 980
Download PDF
Declaration of Conformity 980
Download PDF
