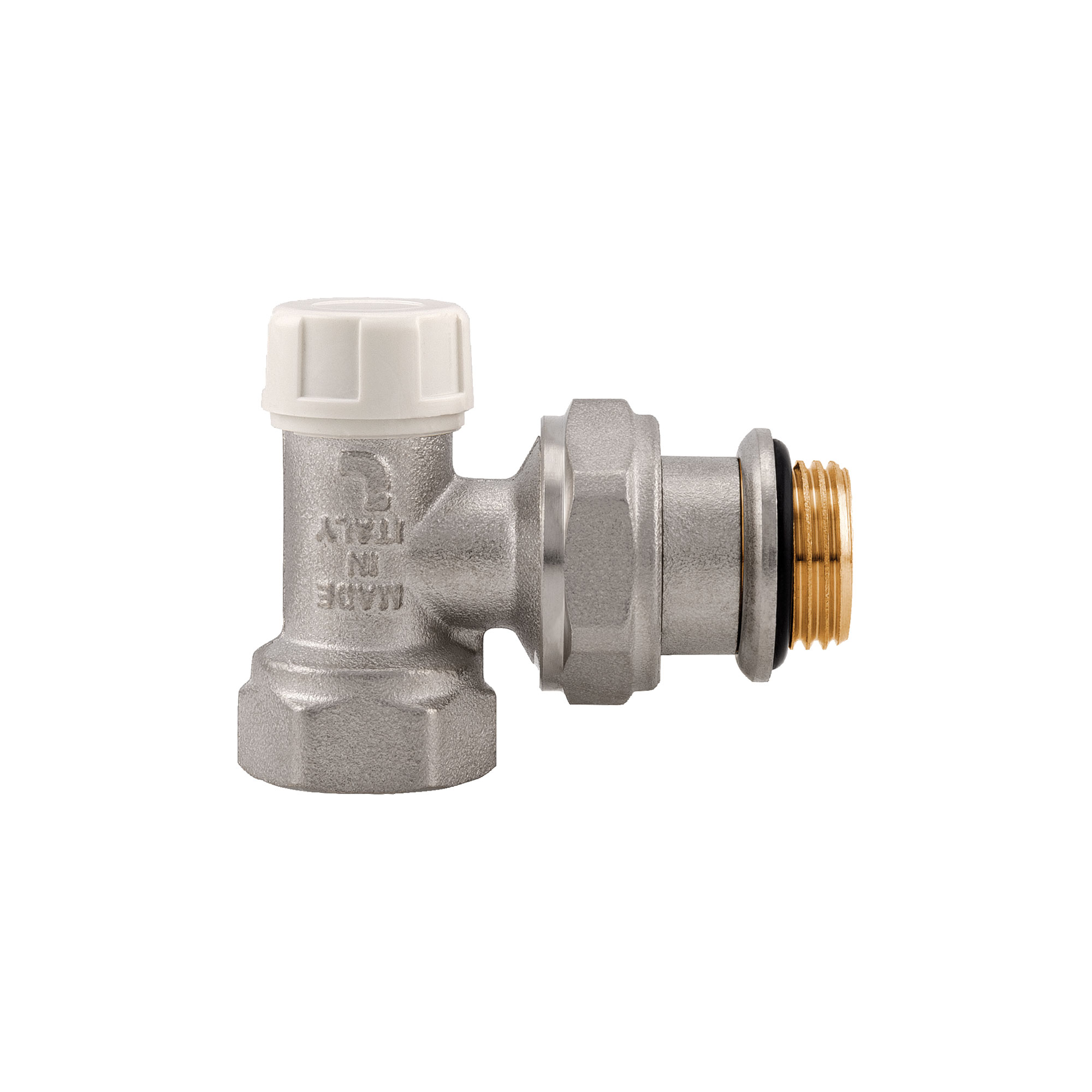

Angle lockshield, female thread - 396S
Angle lockshield, female thread - 396S

396S
Angle lockshield, female thread

Body in nickel-plated brass.
Maximum working temperature: 110°C.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

To be used with iron piping or, together with an Itap-Fit® connector (art. 618), with copper, crosslinked polyethylene (PEX) or polybutylene.
In the case of use with PEX or polybuthylene it is also requested the use of the liner art. 655.

SizePressureCodePacking
3/8" (DN 10)10bar/145psi3960038S12/168
1/2" (DN 15)10bar/145psi3960012S12/144
3/4" (DN 20)10bar/145psi3960034S10/80
Drawing 396S
Download PDF
Materials 396S
Download PDF
Pressure drop diagram 396S
Download PDF
Declaration of Conformity 396S
Download PDF
