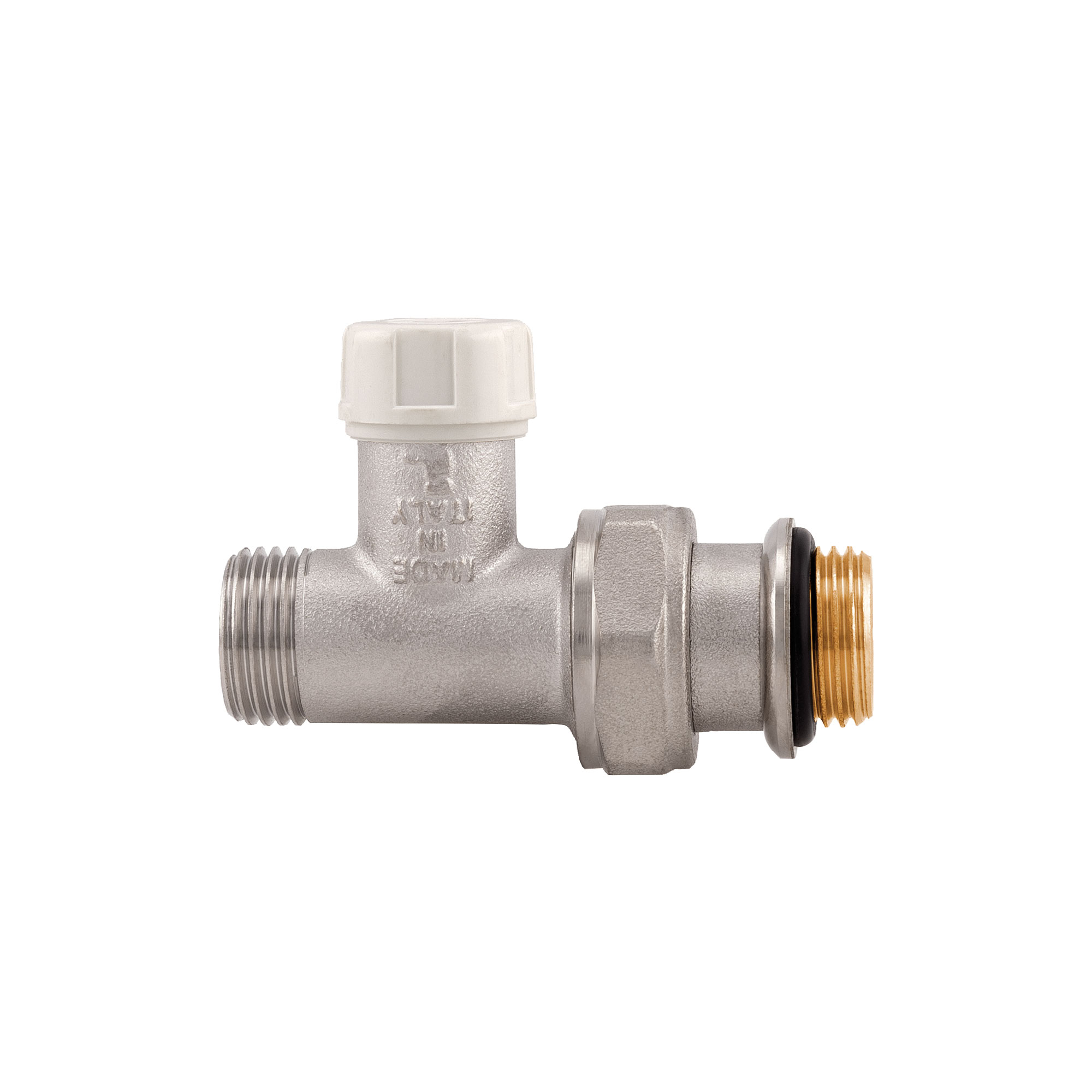

Straight lockshield, male thread - 297S
Straight lockshield, male thread - 297S

297S
Straight lockshield, male thread

Body in nickel-plated brass.
Maximum working temperature: 110°C.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

To be used with multilayer, PEX or polybutylene piping, together with 595M or 510 Multi-Fit® connectors.
Suitable also for copper piping, together with a compression fitting art. 595.
The male thread “G” is equipped with a conical seat and inner diameter mm.16.

SizePressureCodePacking
3/8" (DN 10)10bar/145psi2970038S12/144
1/2" (DN 15)10bar/145psi2970012S12/132
Drawing 297S
Download PDF
Materials 297S
Download PDF
Pressure drop diagram 297S
Download PDF
Declaration of Conformity 297S
Download PDF
Technical featuresTechnical features
