Automatic air-vent valve - 362
Automatic air-vent valve - 362

362

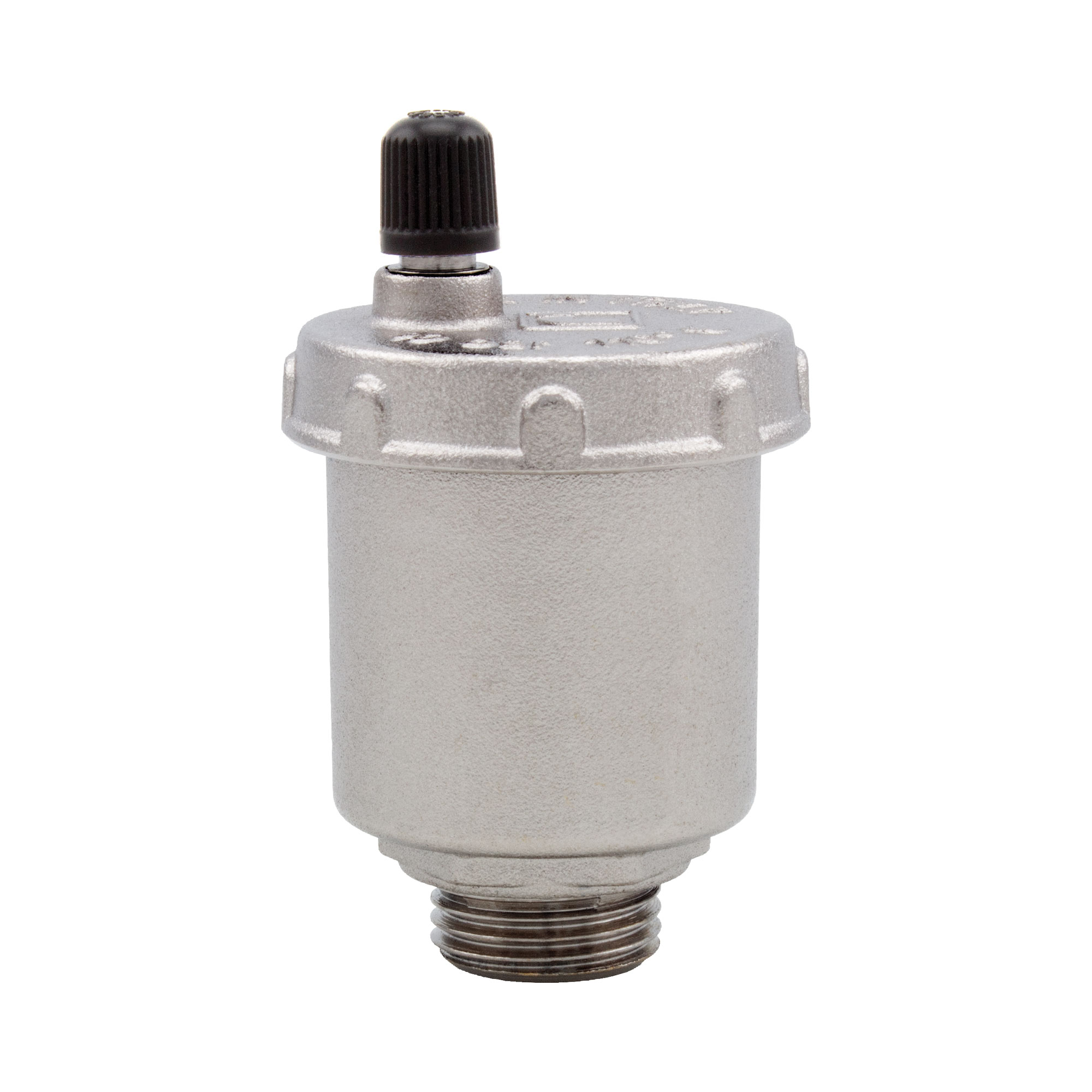

Automatic air-vent valve

Body in nickel-plated brass.
Float in polyethilenic resin.
Maximum working temperature: 110°C.
Maximum discharge pressure: 6 bar.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Available with NPT thread in the sizes 1/2″ – 3/4″ – 1″

SizePressureCodePacking
3/8"10bar/145psi362003810/70
1/2"10bar/145psi362001210/70
3/4"10bar/145psi362003410/30
1"10bar/145psi362010010/30
Drawing 362
Download PDF
Materials 362
Download PDF
Installation 362
Download PDF
Declaration of Conformity 362
Download PDF
Technical featuresTechnical features
