Male end fitting for manifolds - 490
Male end fitting for manifolds - 490

490

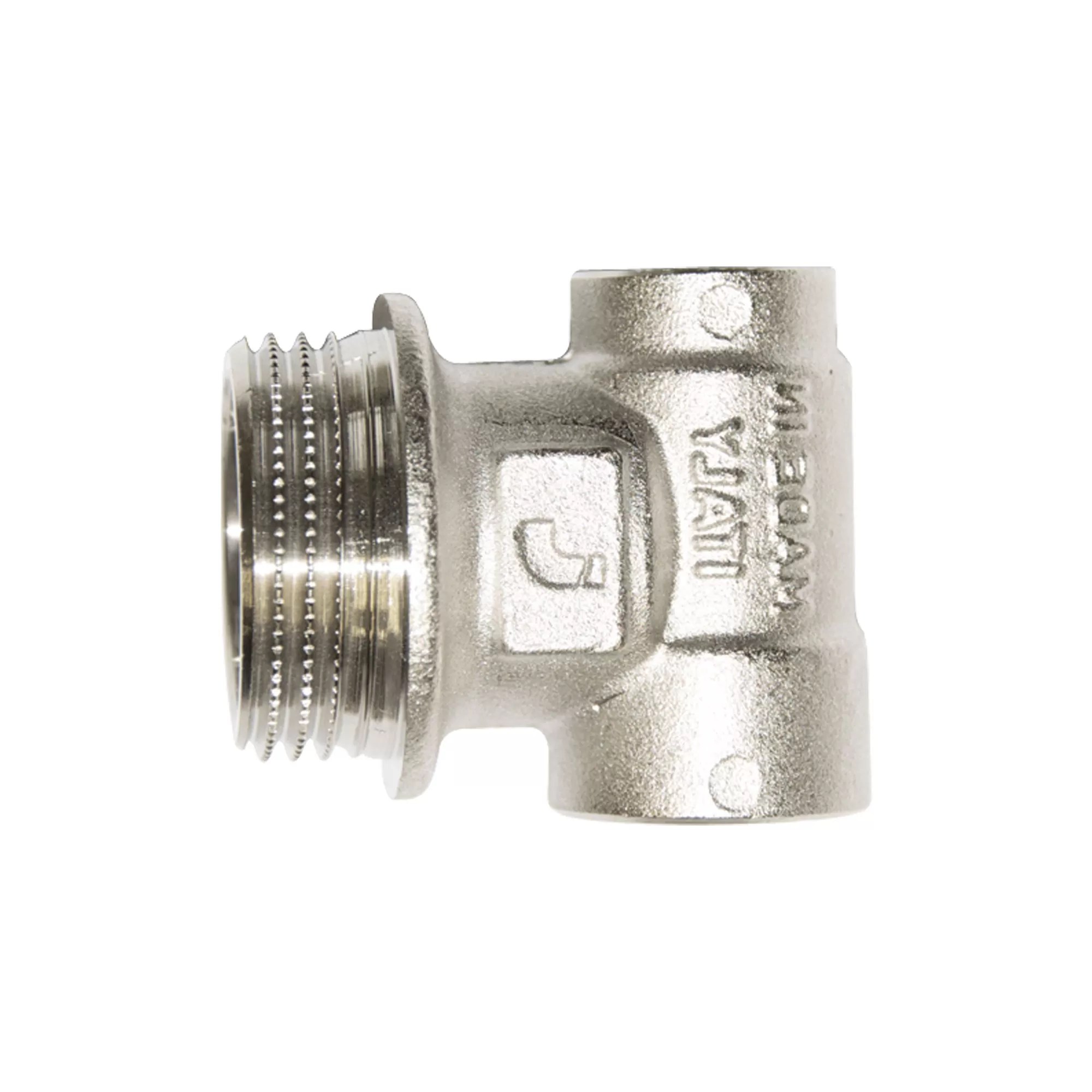

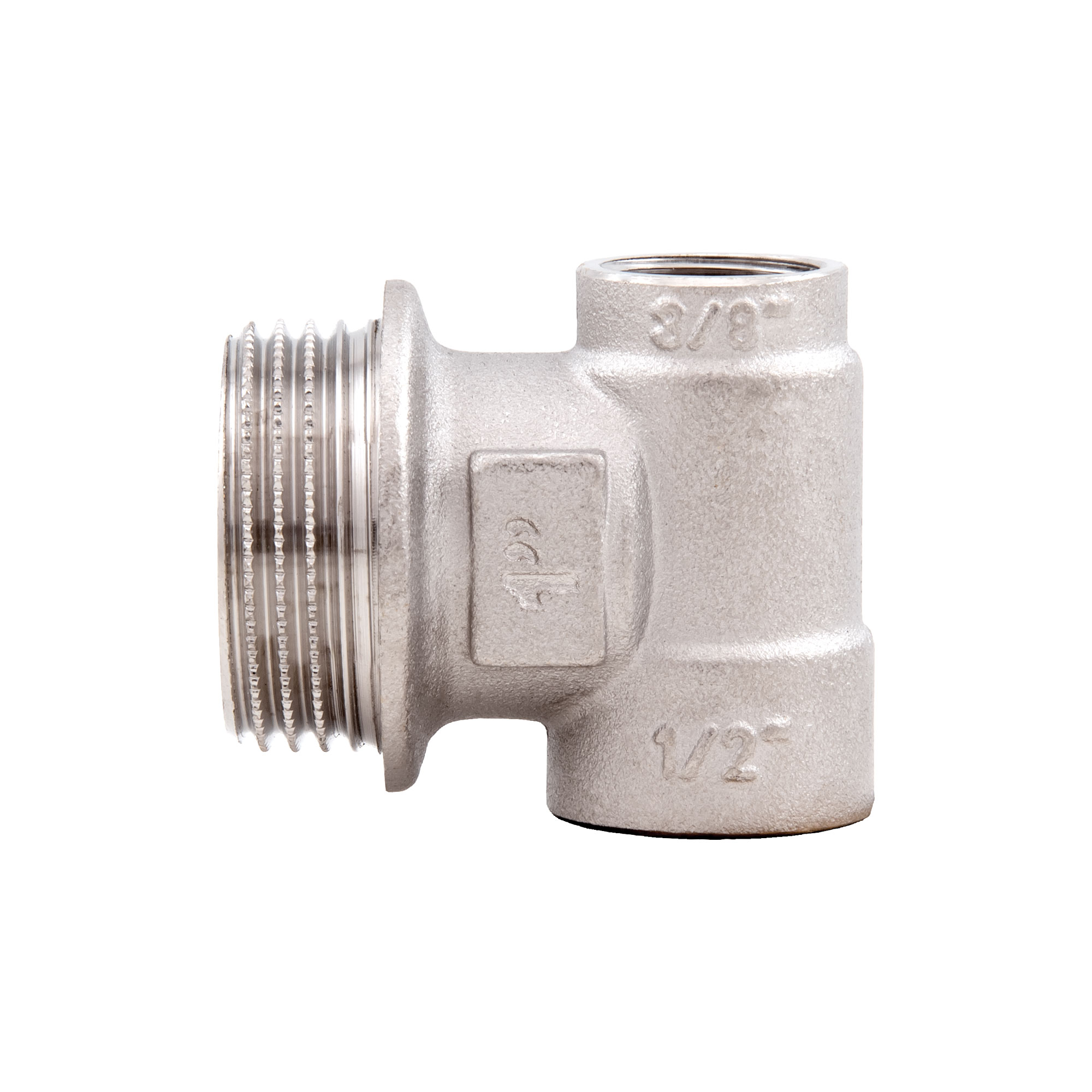

Male end fitting for manifolds

Available sizes: 3/4”, 1”, 1”1/4 (main connection).
Size of the first outlet: 1/2”.
Size of the second outlet: 3/8”.
Body in nickel-plated brass.
Maximum working temperature: 110°C.
Threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
3/4"10bar/145psi490003414/168
1"10bar/145psi490010012/144
1"1/410bar/145psi49001148/96
Drawing 490
Download PDF
Materials 490
Download PDF
Declaration of Conformity 490
Download PDF
