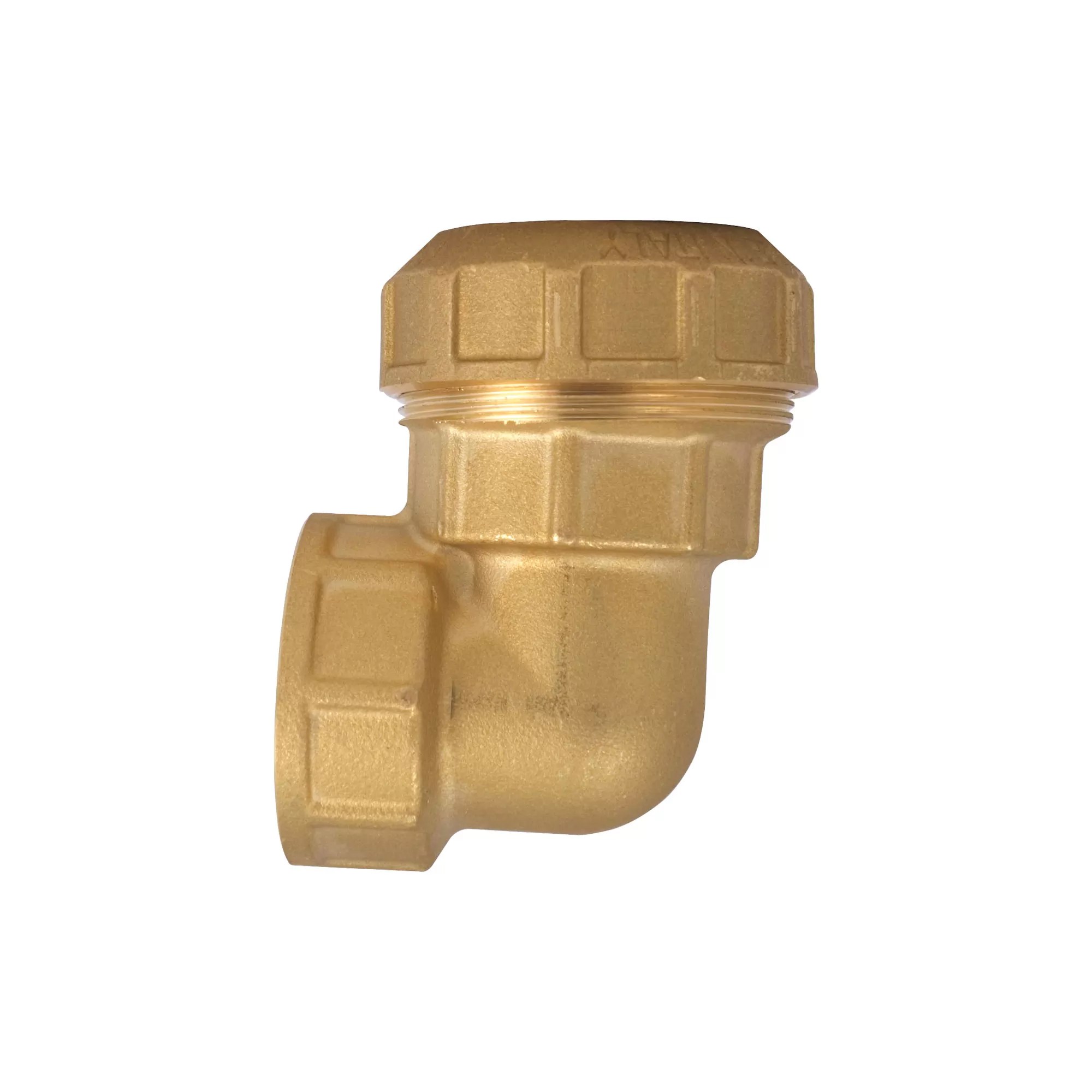

Female elbow - 745
Female elbow - 745

745
Female elbow

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizeCodePacking
1/2"x20745001202015/210
3/4"x25745003402512/144
1"x3274501000328/56
1"1/4x4074501140406/36
Drawing 745
Download PDF
Materials 745
Download PDF
Installation 745
Download PDF
Declaration of Conformity 745
Download PDF
Technical featuresTechnical features
