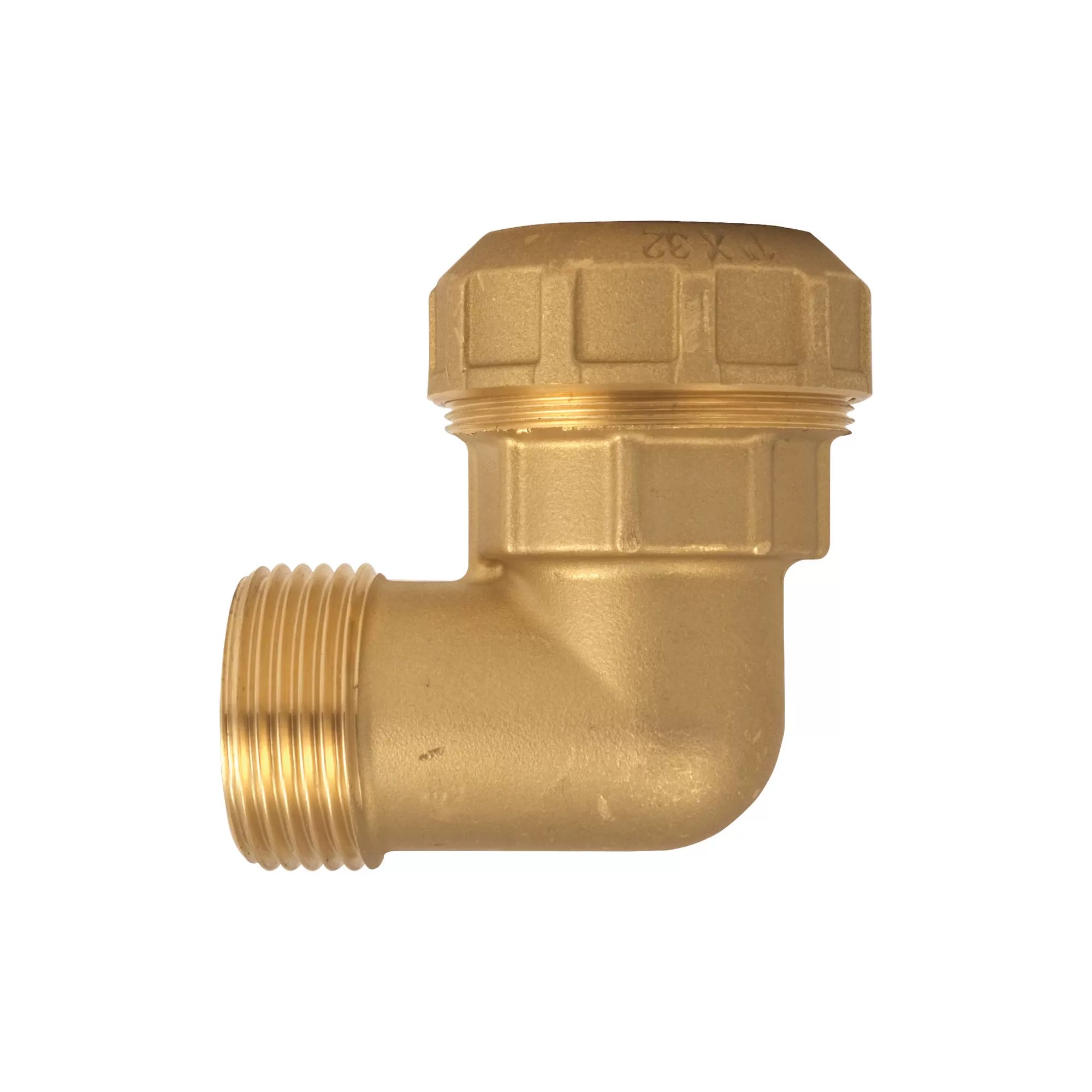

Male elbow - 740
Male elbow - 740

740
Male elbow

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizeCodePacking
1/2"x20740001202015/210
3/4"x25740003402512/108
1"x3274001000328/64
1"1/4x4074001140406/48
Drawing 740
Download PDF
Materials 740
Download PDF
Installation 740
Download PDF
Declaration of Conformity 740
Download PDF
Technical featuresTechnical features
