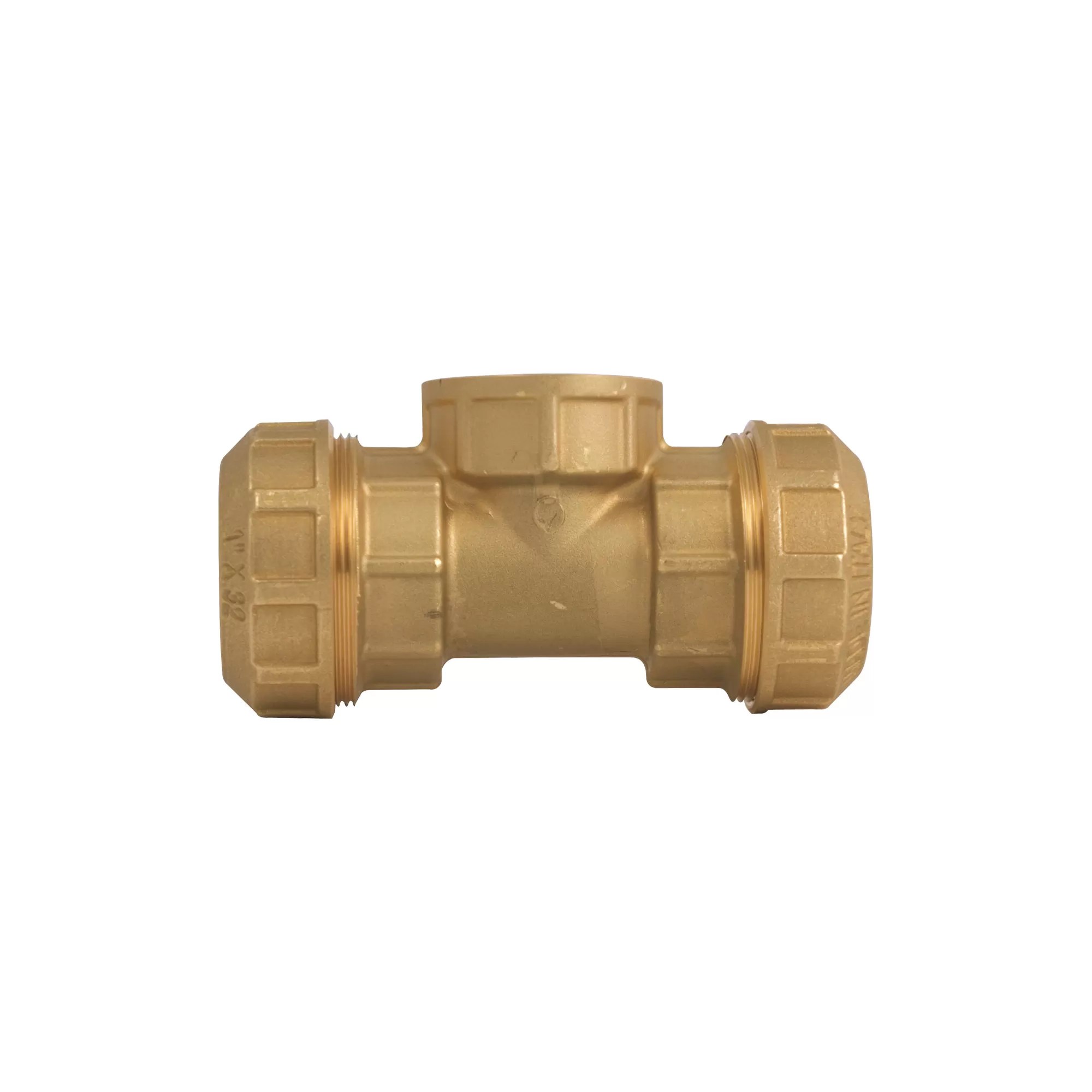

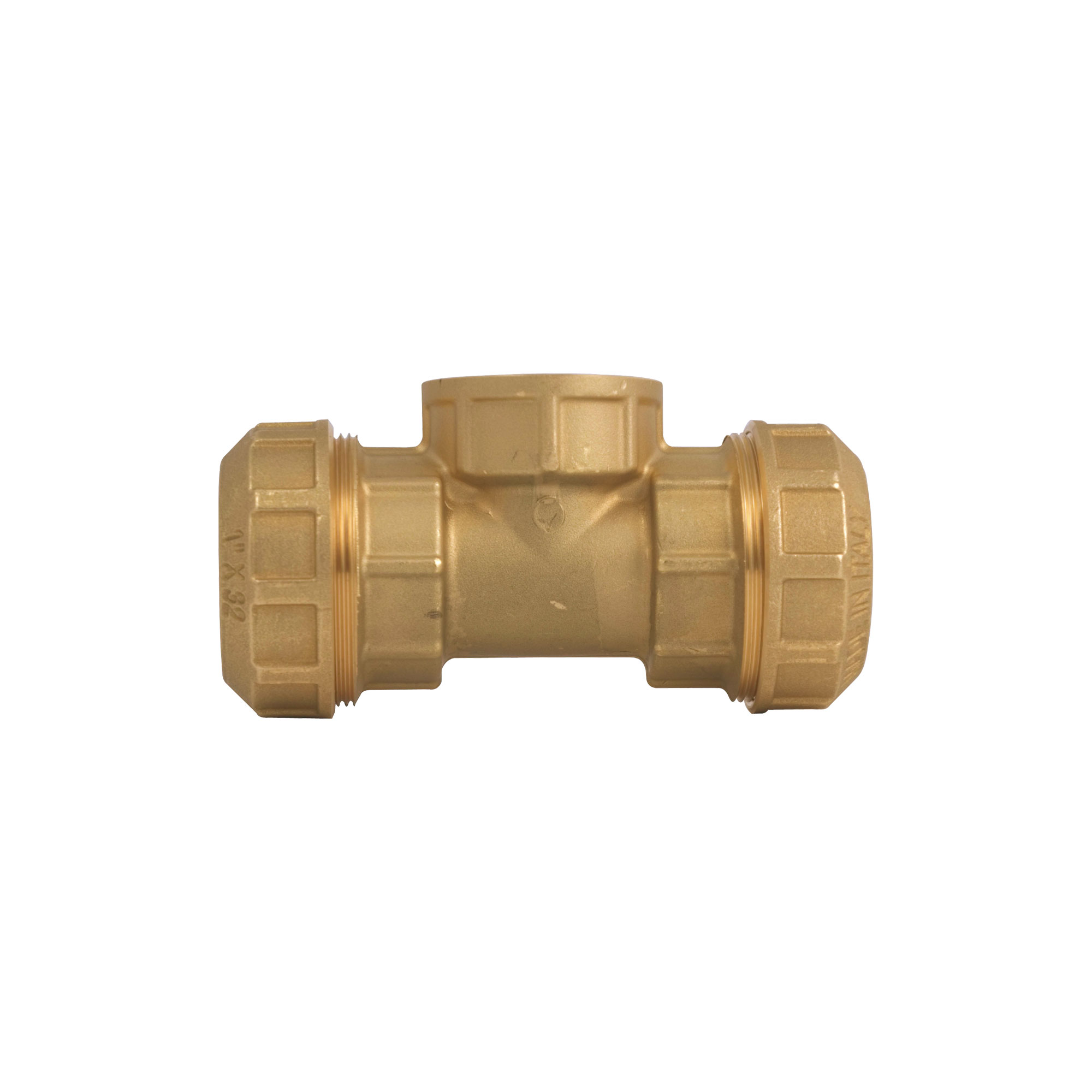

Female branch T coupling - 735
Female branch T coupling - 735

735
Female branch T coupling

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizeCodePacking
1/2"x2073500120208/112
3/4"x2573500340256/72
1"x3273501000324/36
1"1/4x4073501140404/24
Drawing 735
Download PDF
Materials 735
Download PDF
Installation 735
Download PDF
Declaration of Conformity 735
Download PDF
Technical featuresTechnical features
