050FL

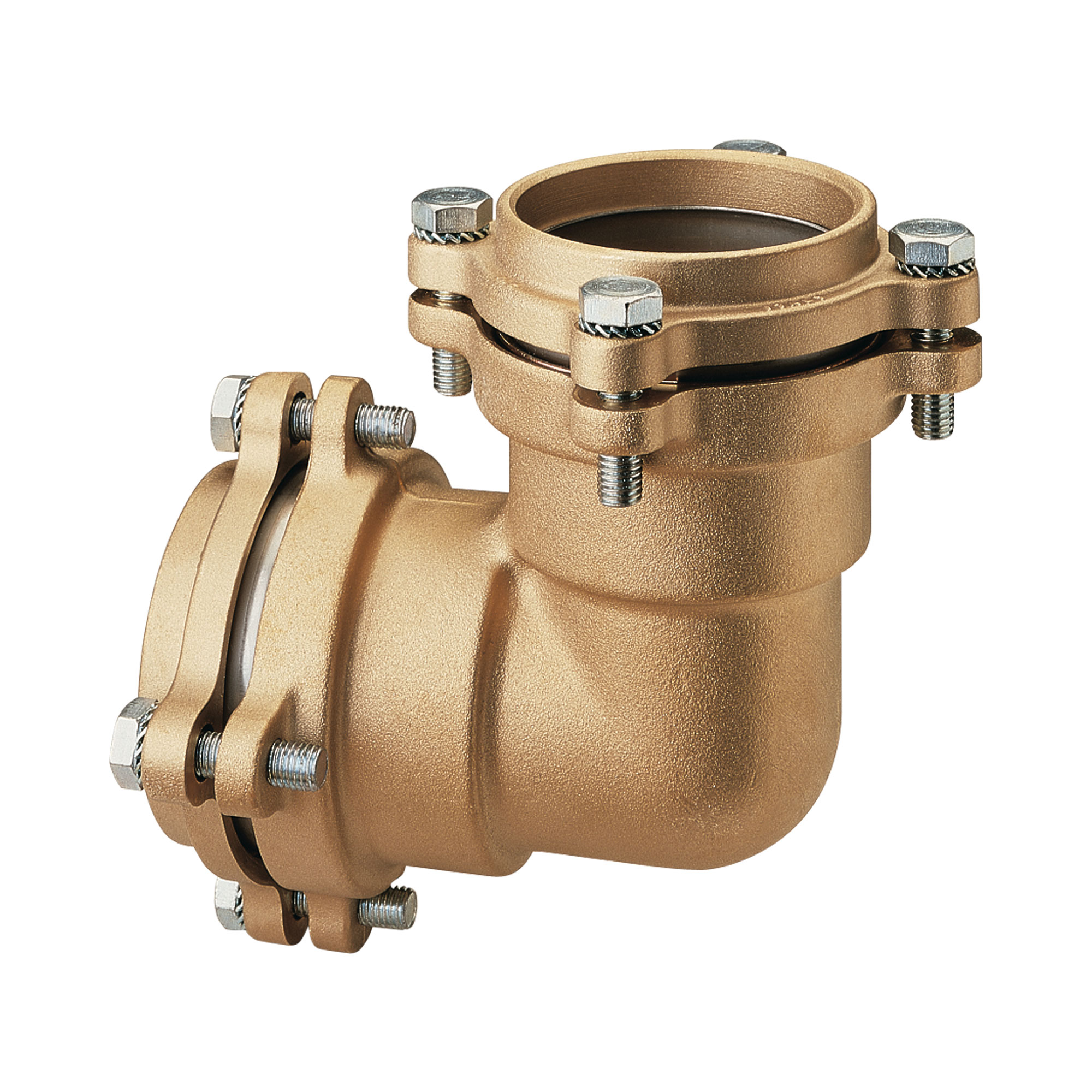

Elbow coupling, with flanges

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.

SizeCodePacking
7505002120751/4
9005003000901/2
Drawing 050FL
Download PDF
Materials 050FL
Download PDF
Installation 050FL
Download PDF
Declaration of Conformity 050FL
Download PDF
Technical featuresTechnical features
