Elbow coupling - 050
Elbow coupling - 050

050

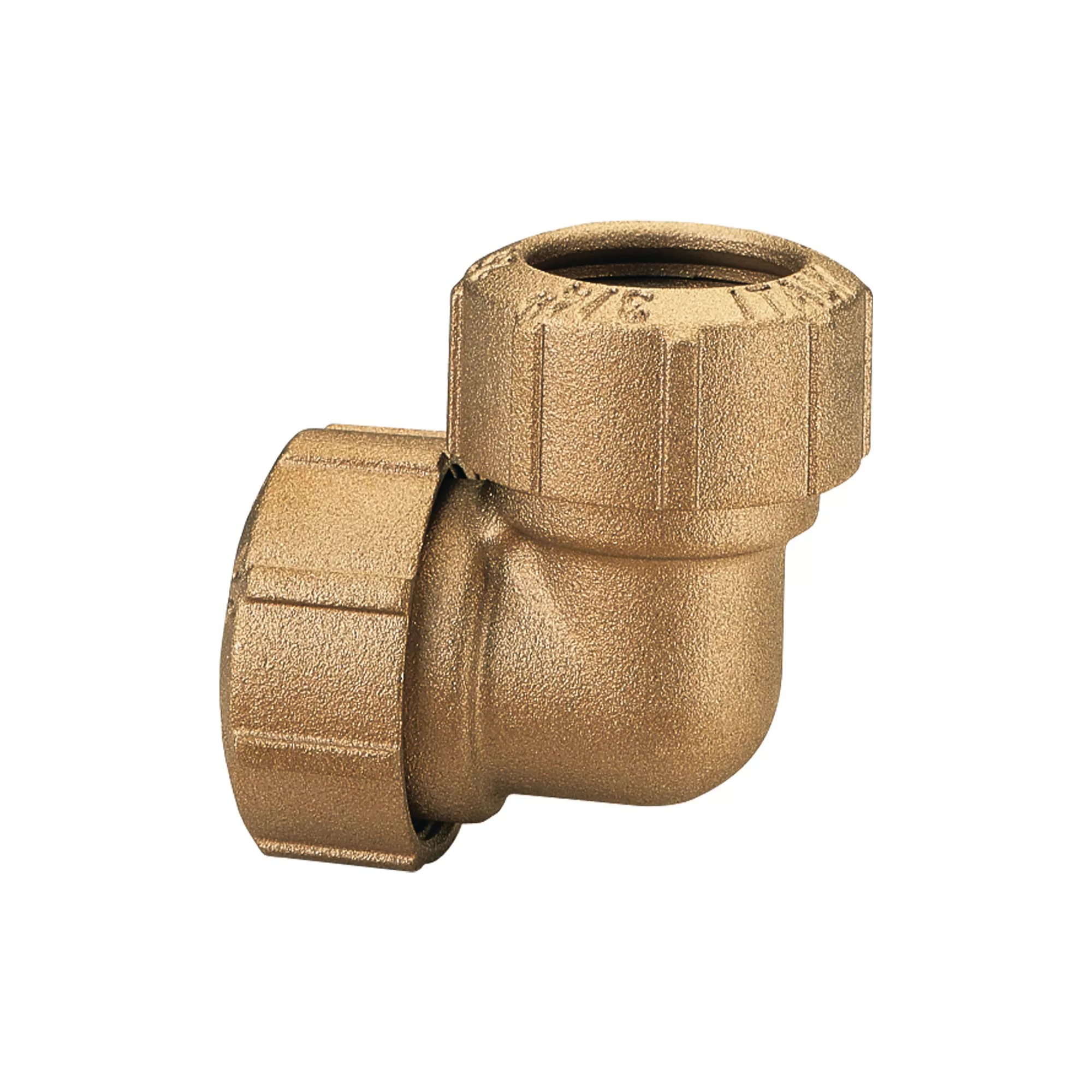

Elbow coupling

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.

SizeCodePacking
20050001202012/108
25050003402510/90
3205001000326/48
4005001140404/32
5005001120502/16
6305002000631/6
Drawing 050
Download PDF
Materials 050
Download PDF
Installation 050
Download PDF
Declaration of Conformity 050
Download PDF
Technical featuresTechnical features
