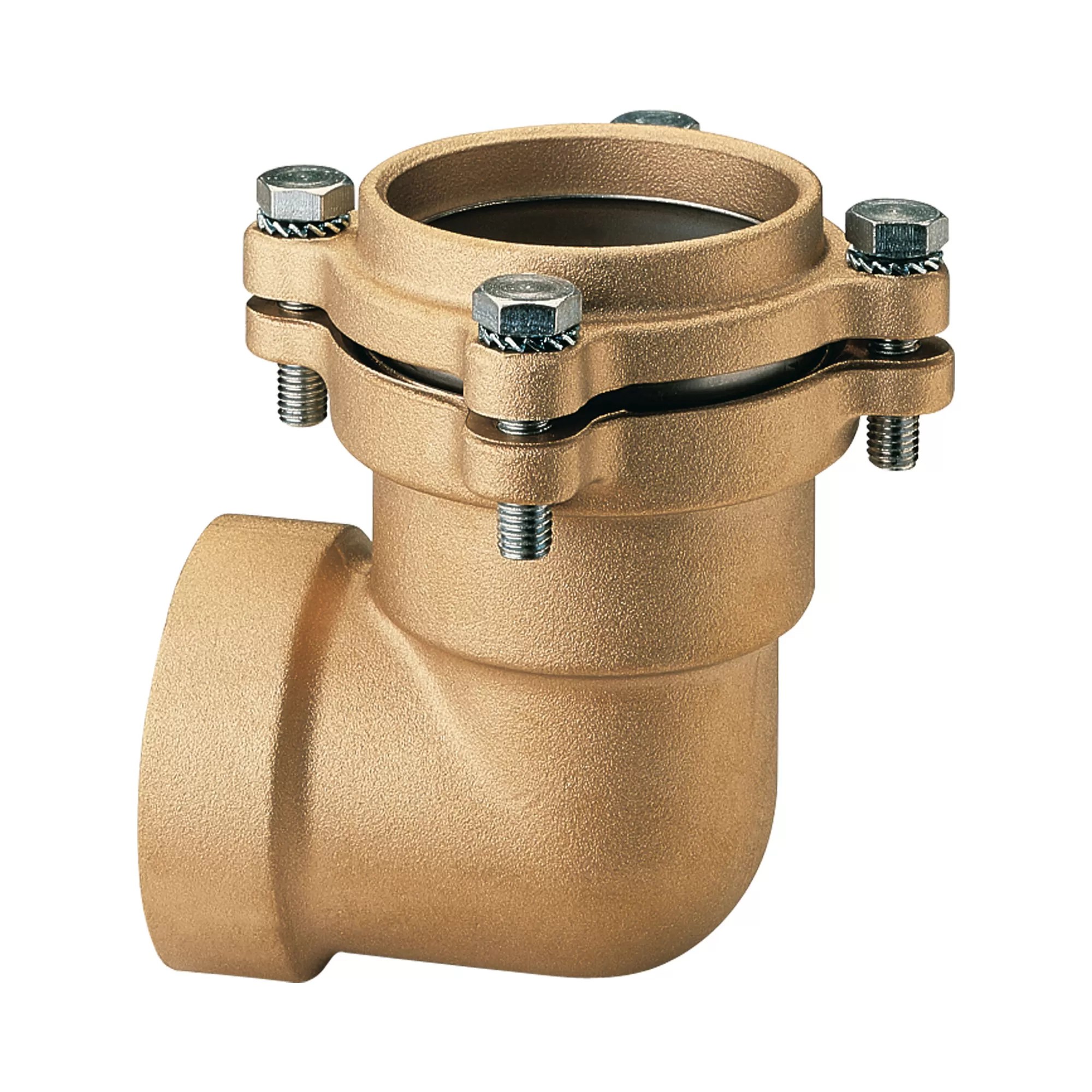

Female elbow, with flanges - 045FL
Female elbow, with flanges - 045FL

045FL
Female elbow, with flanges

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.
Female threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizeCodePacking
2"1/2x7504502120751/8
3"x9004503000901/4
4"x11004504001101/2
Drawing 045FL
Download PDF
Materials 045FL
Download PDF
Installation 045FL
Download PDF
Declaration of Conformity 045FL
Download PDF
Technical featuresTechnical features
