Female elbow - 045
Female elbow - 045

045

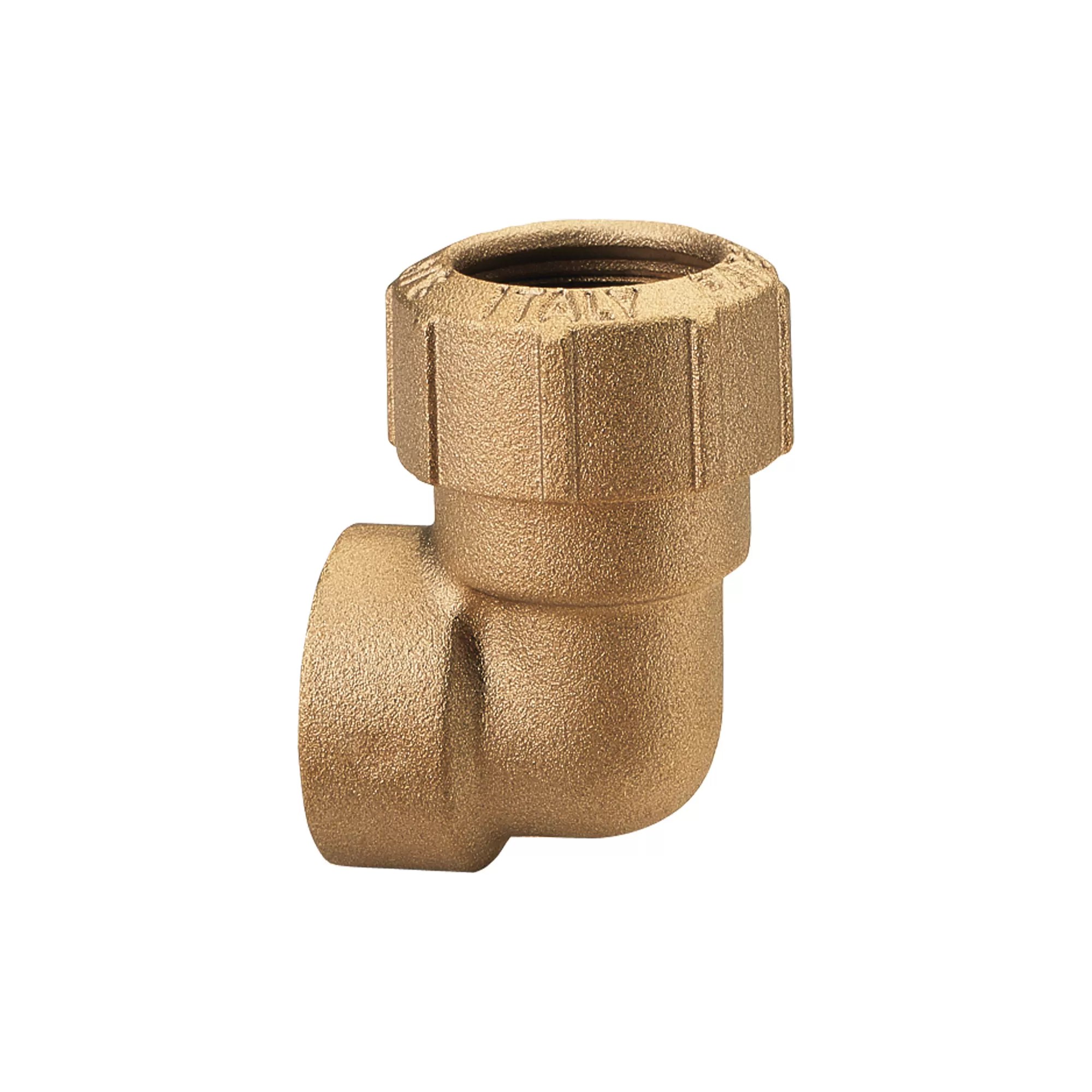

Female elbow

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.
Female threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizeCodePacking
1/2"x20045001202015/180
3/4"x25045003402512/108
1"x3204501000328/64
1"1/4x4004501140406/36
1"1/2x5004501120504/24
2"x6304502000632/12
Drawing 045
Download PDF
Materials 045
Download PDF
Installation 045
Download PDF
Declaration of Conformity 045
Download PDF
Technical featuresTechnical features

Range VX FITTINGS FOR POLYETHYLENE PIPES

010

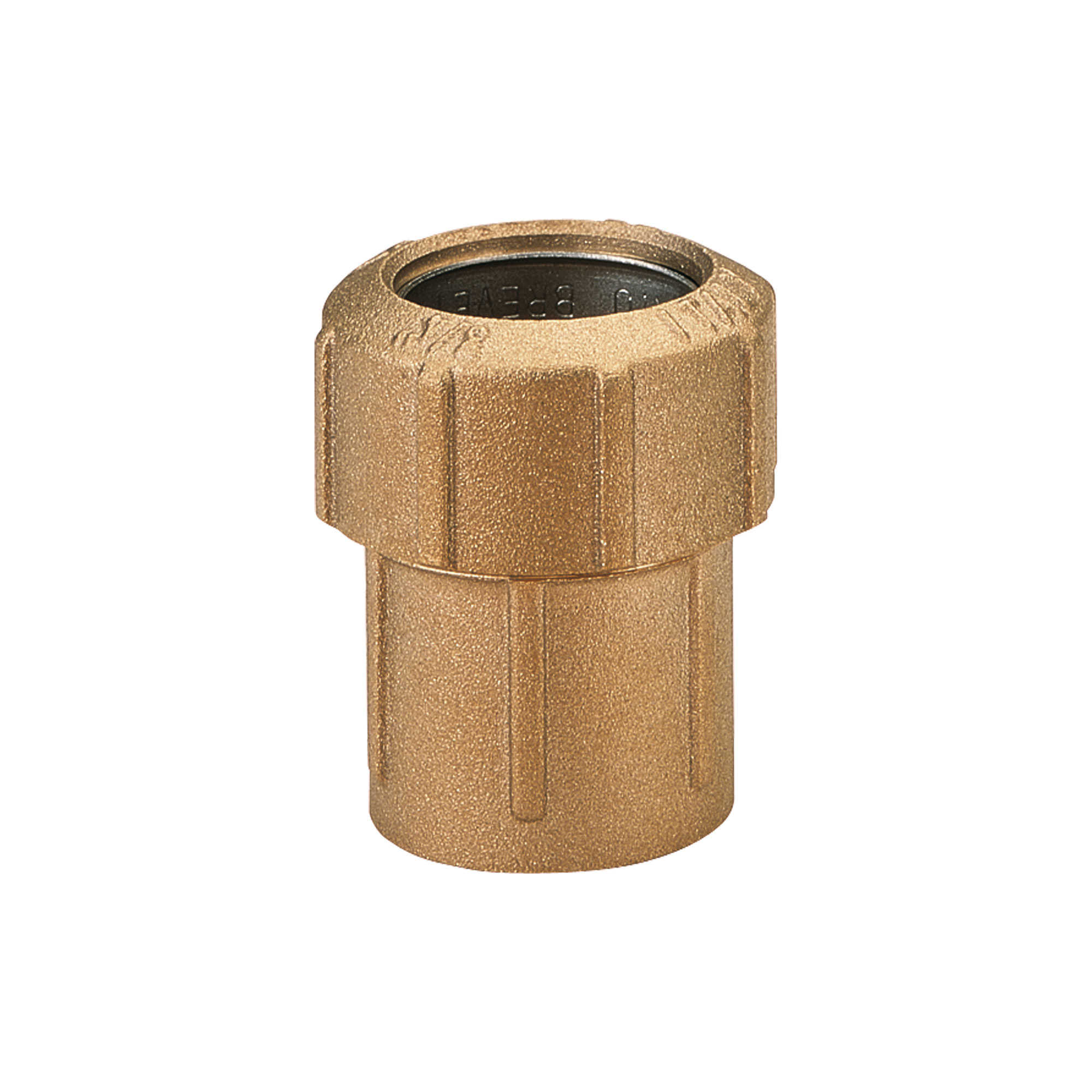

Straight female connector

010FL

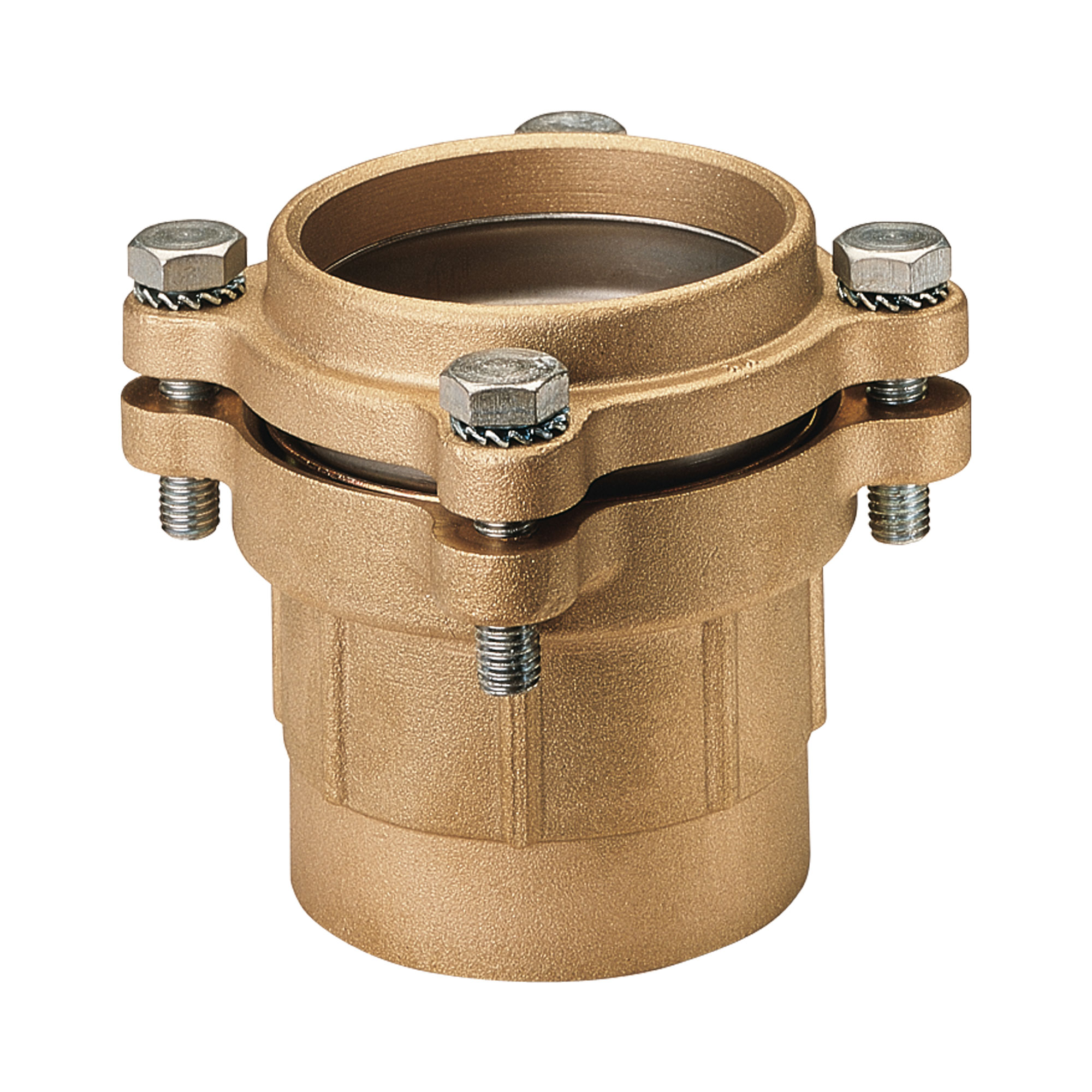

Straight female connector, with flanges

015

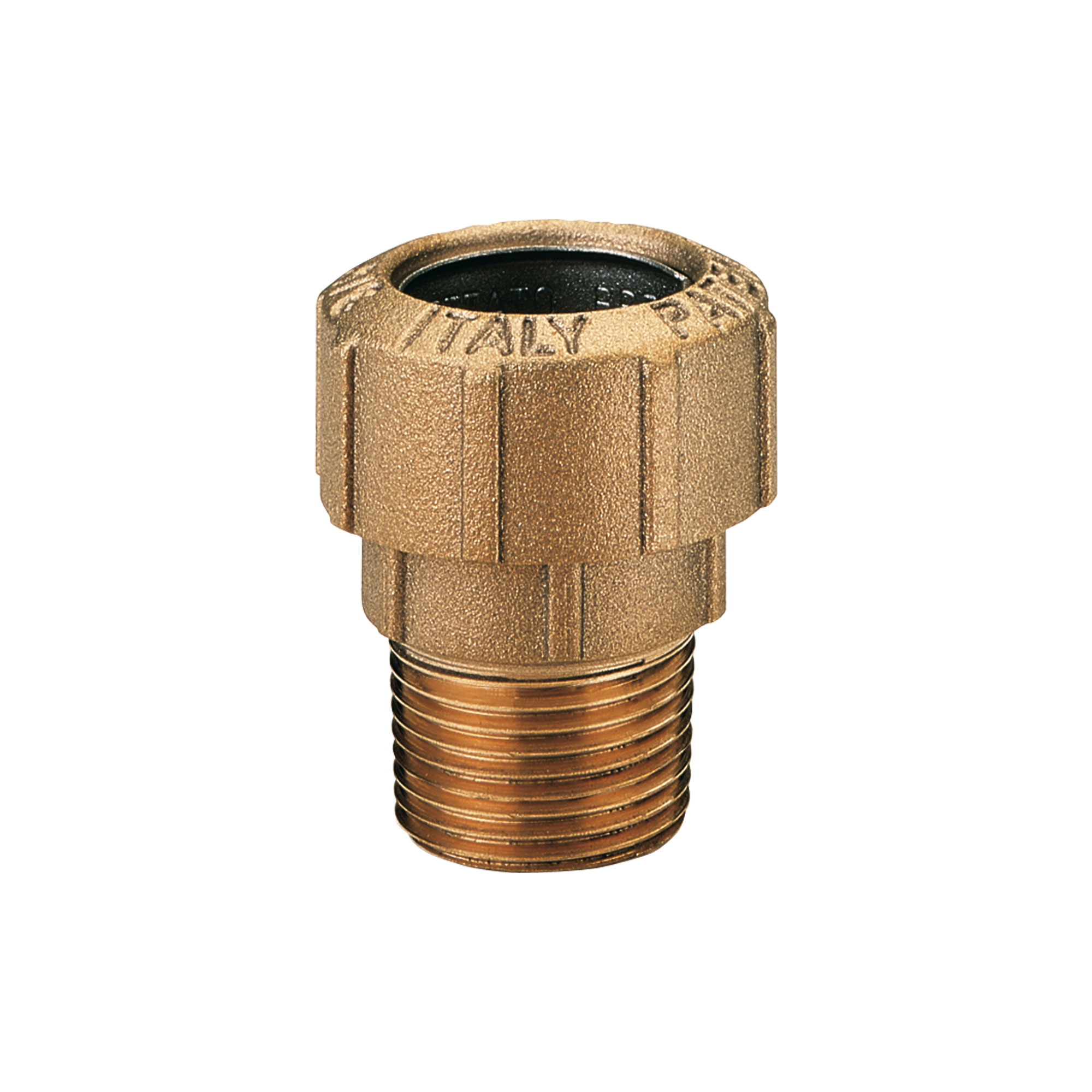

Straight male connector

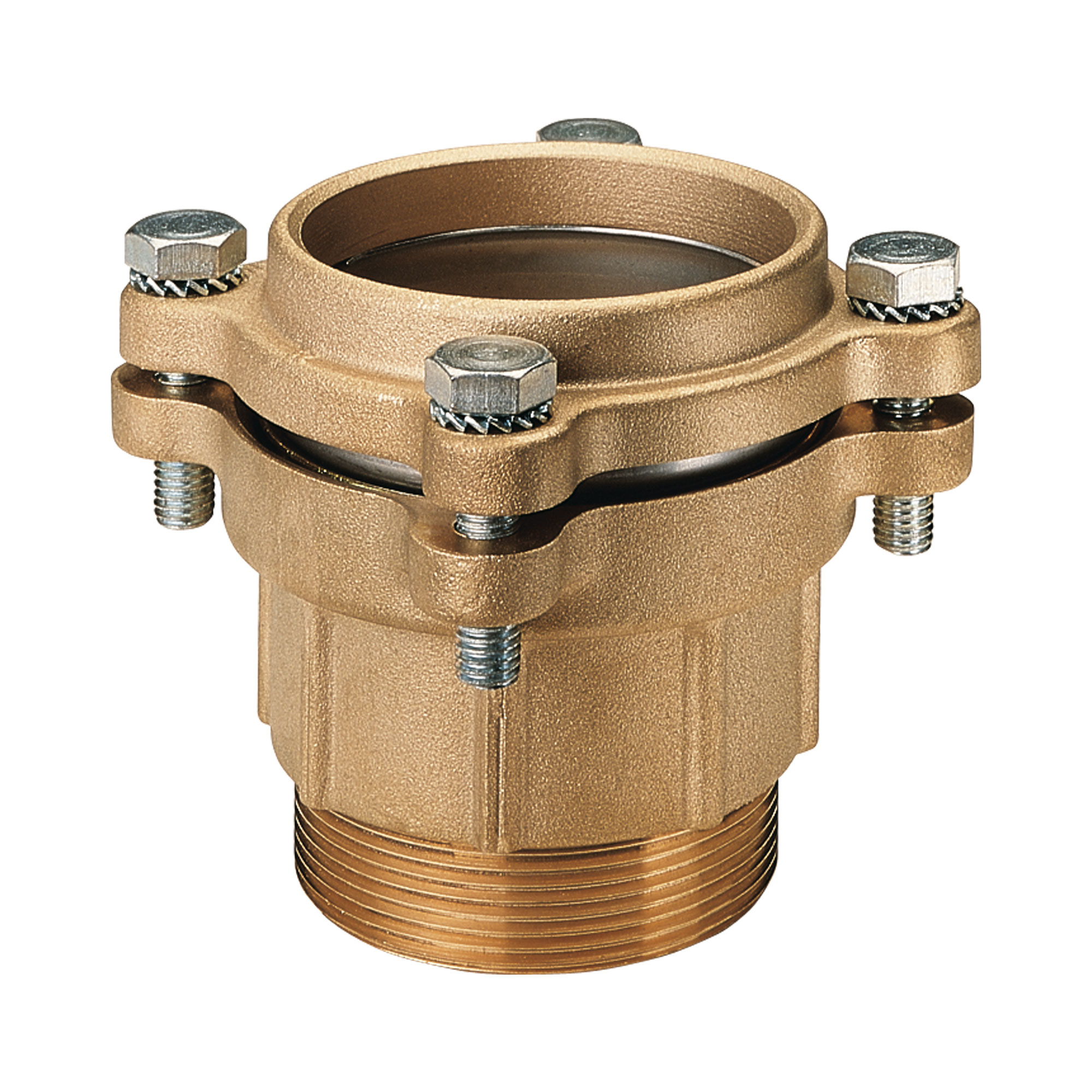

015FL

Straight male connector, with flanges

020

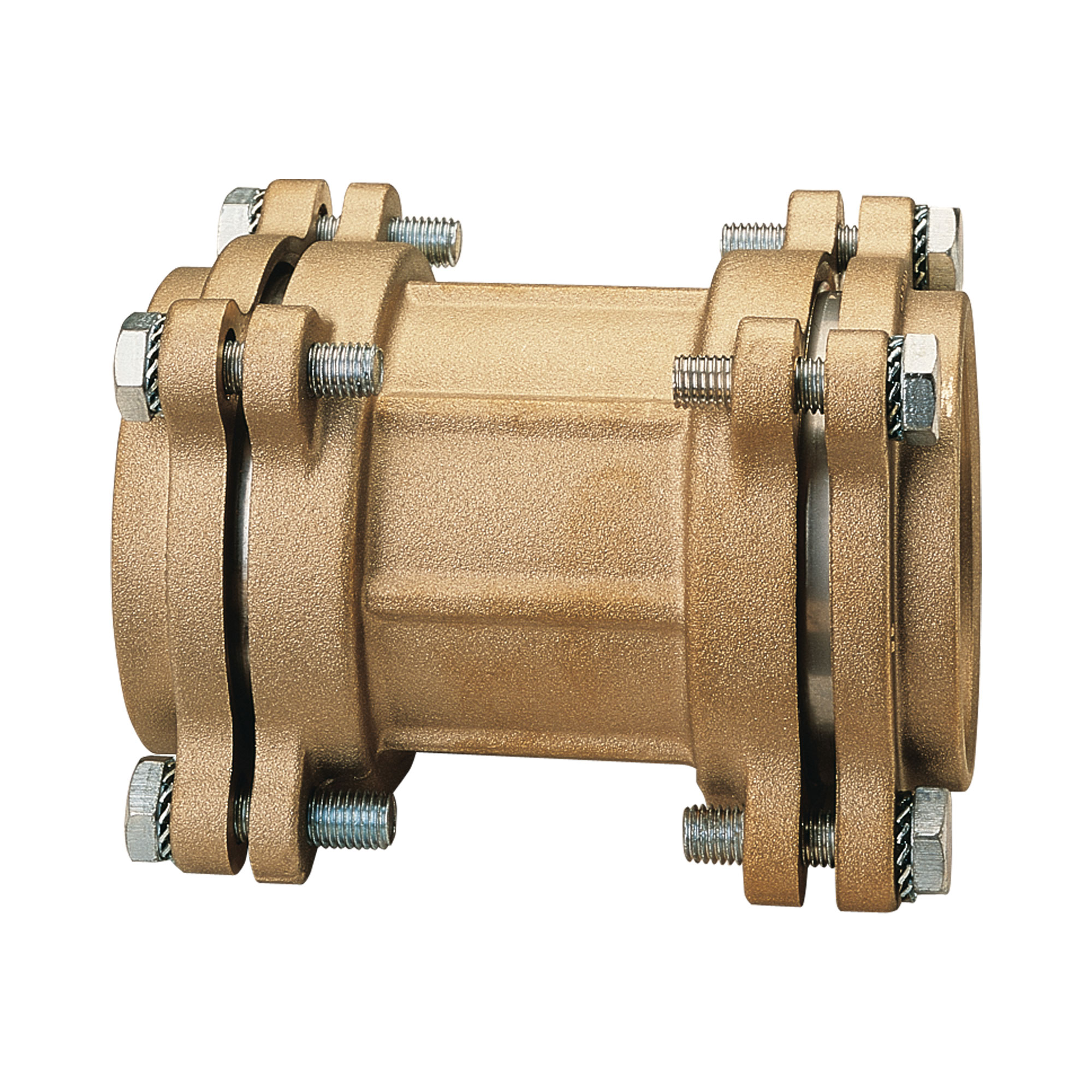

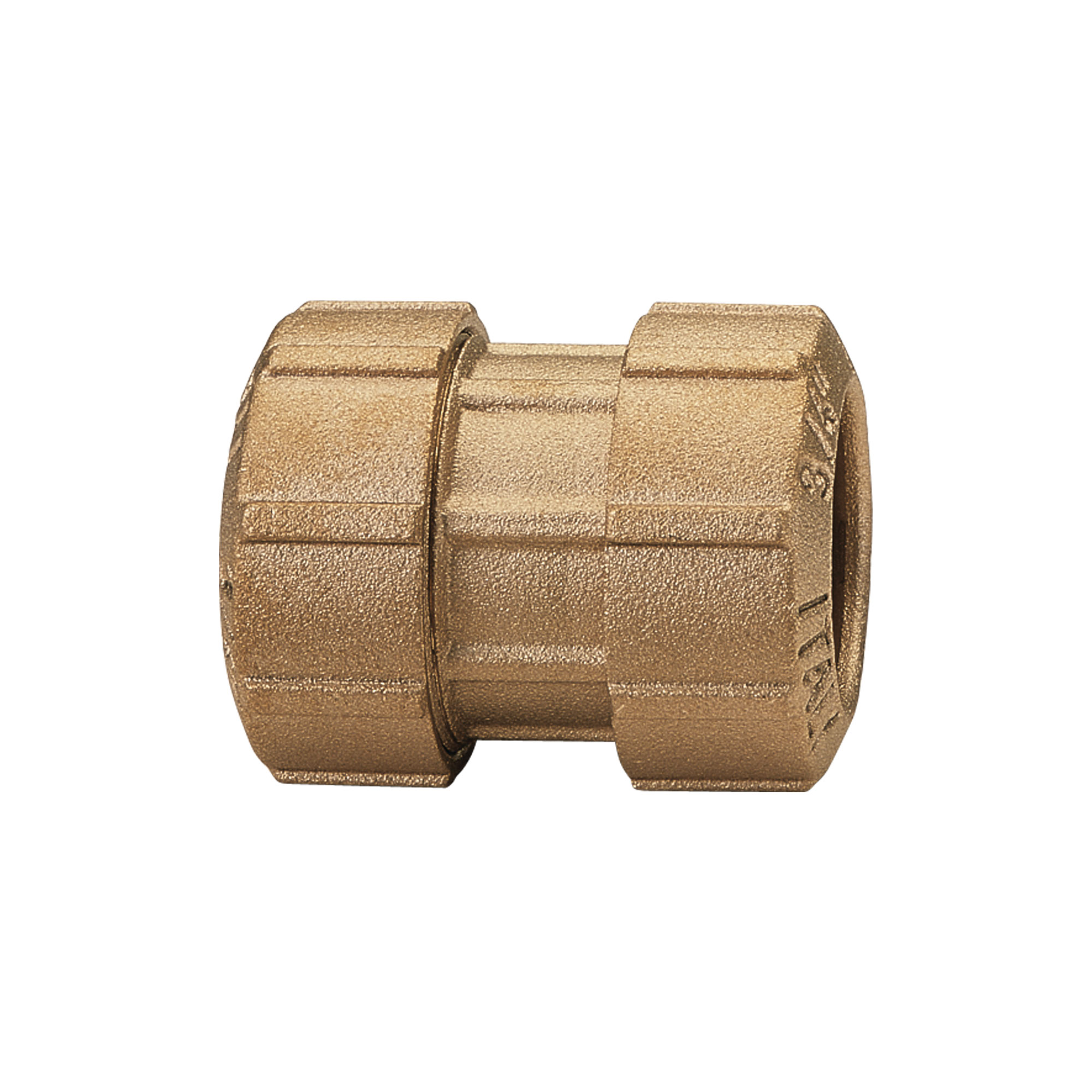

Straight coupling

020FL

Straight coupling, with flanges

025

Extended coupling sleeve, to repair pipes

030

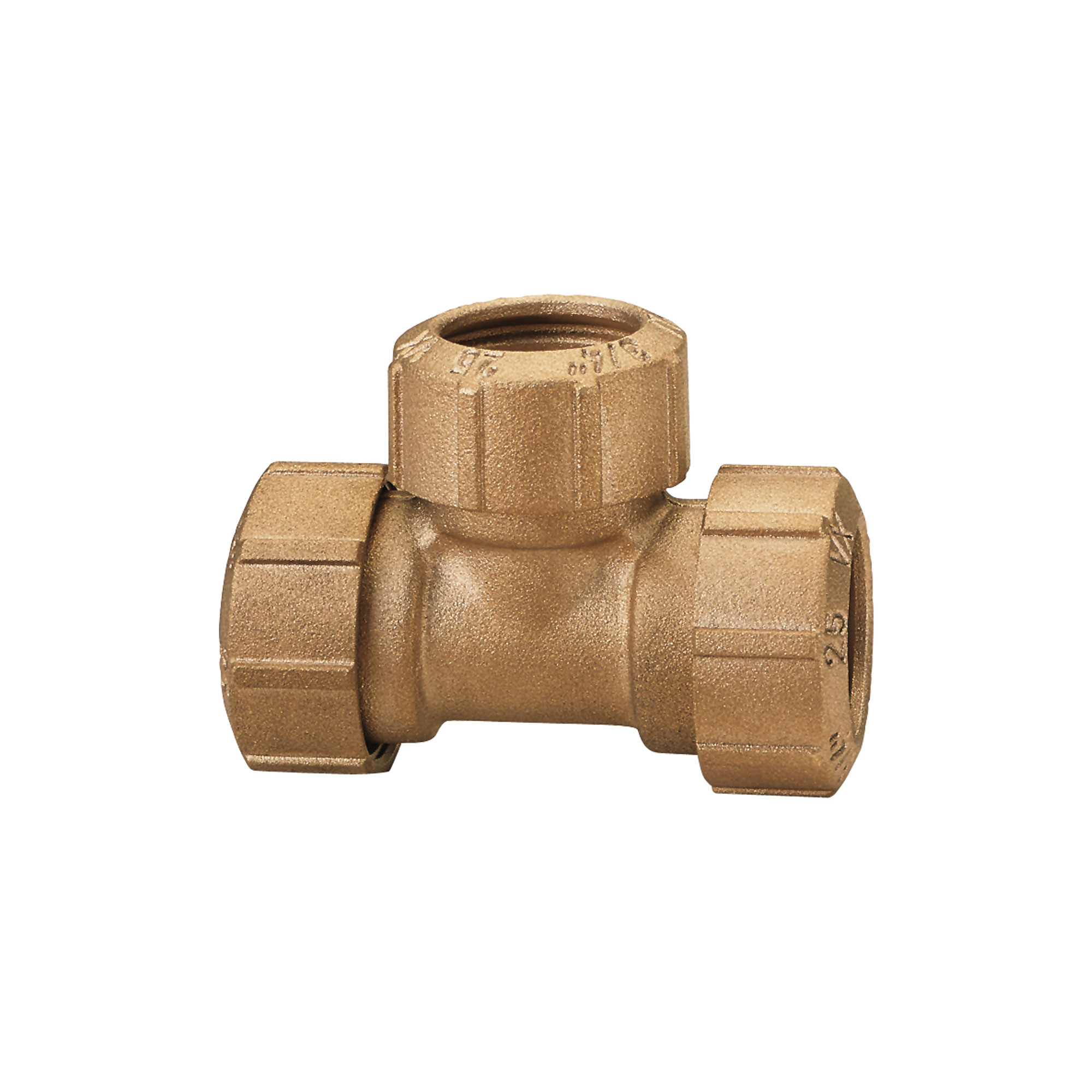

Equal T coupling

030FL

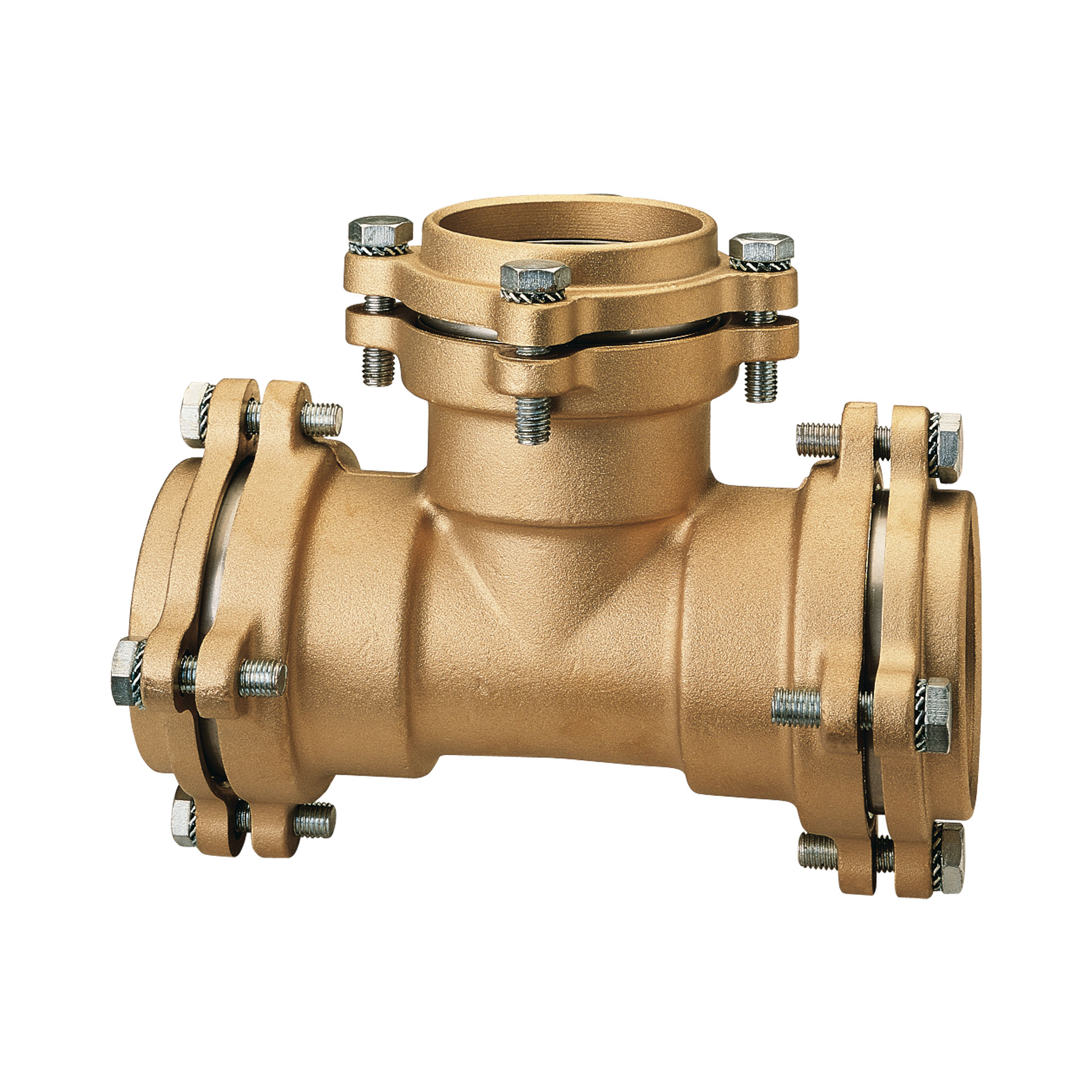

Equal T coupling, with flanges

035

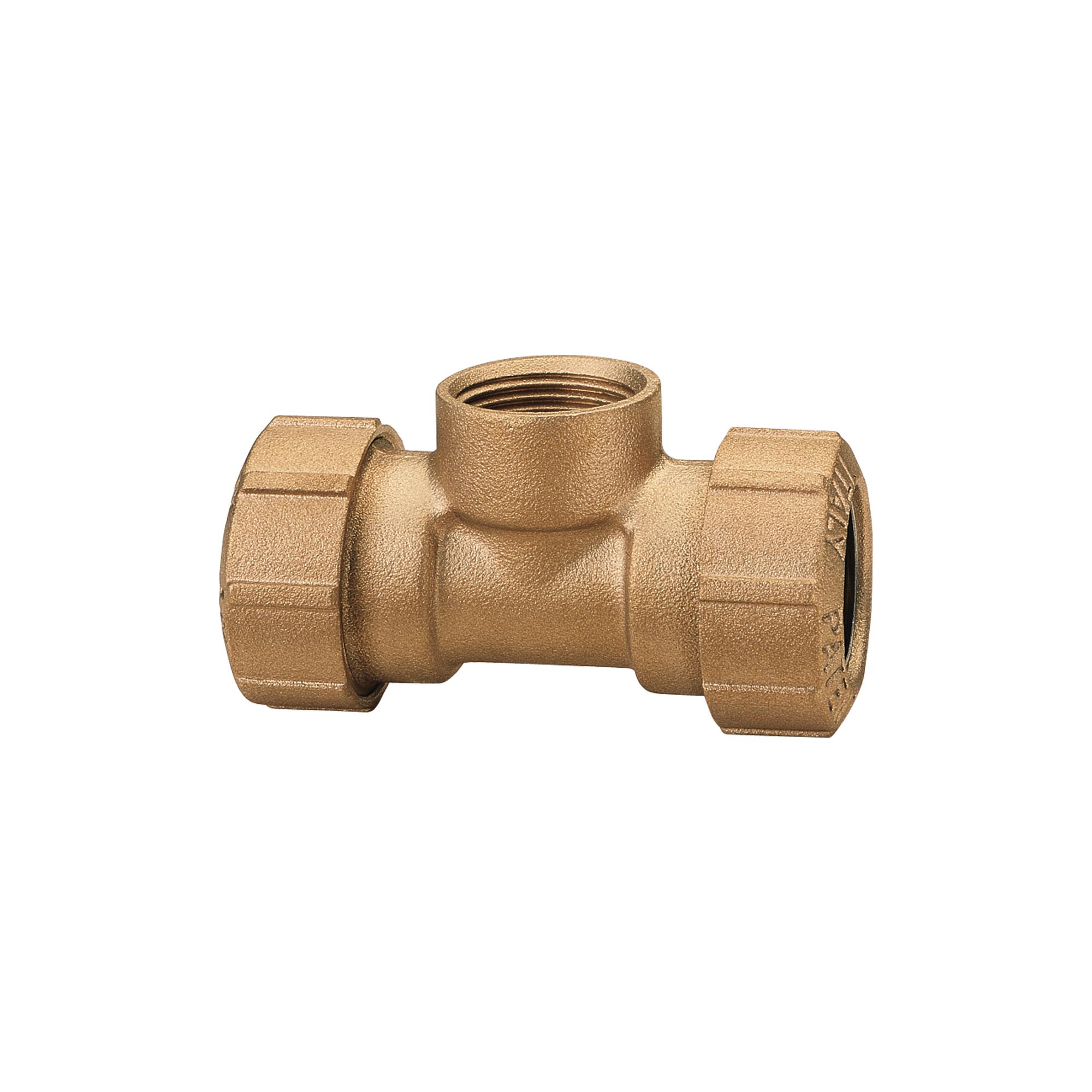

Female branch T coupling

035FL

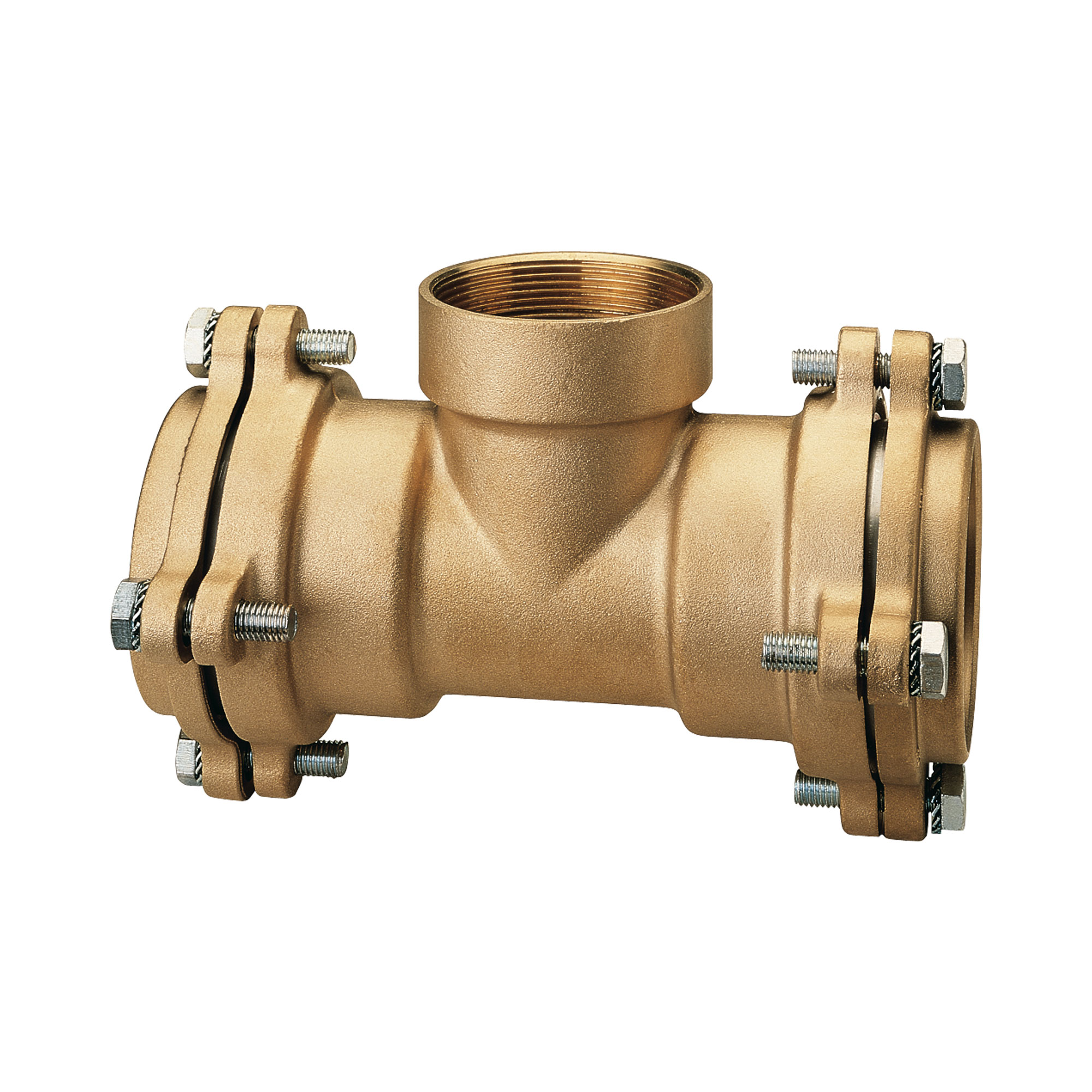

Female branch T coupling, with flanges

040

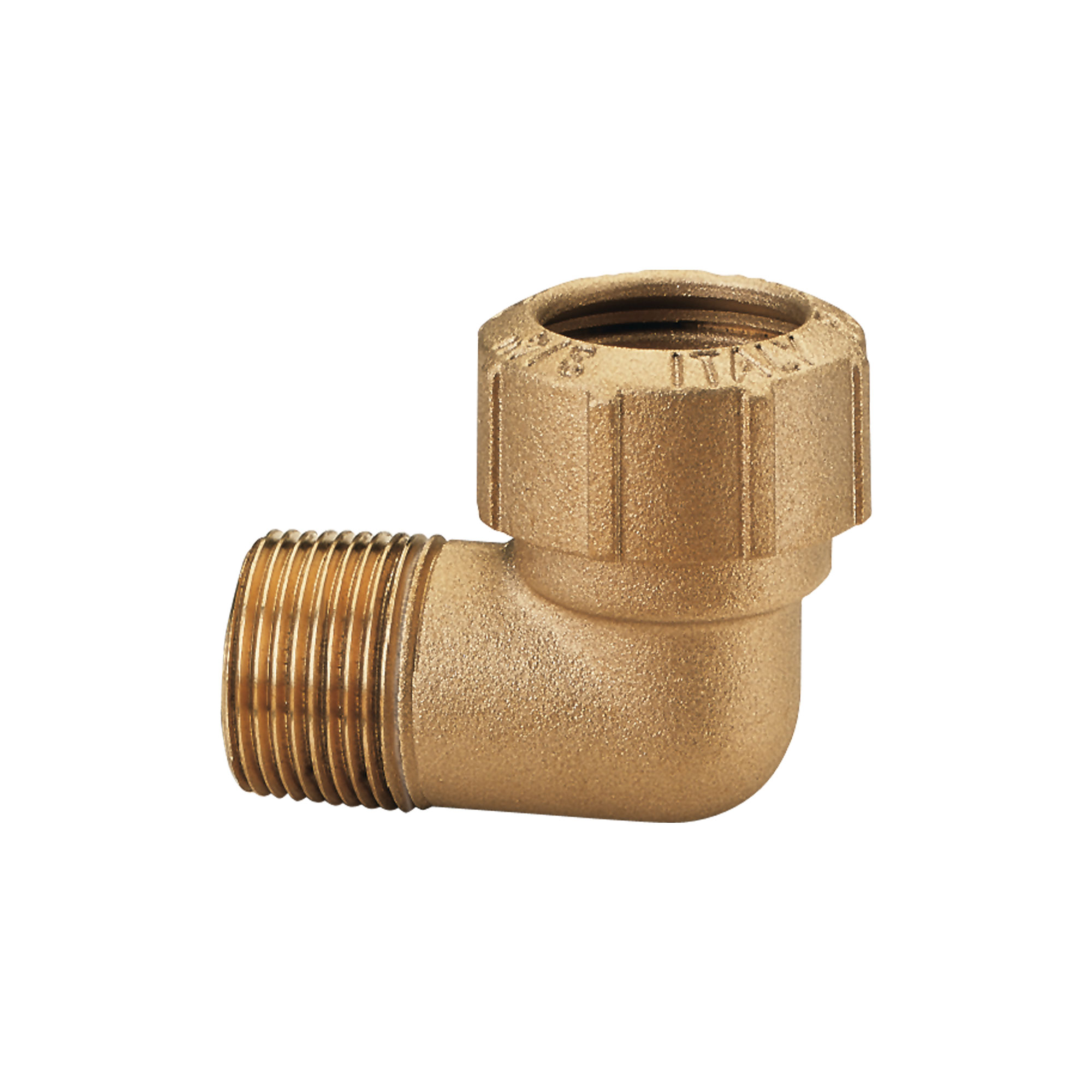

Male elbow

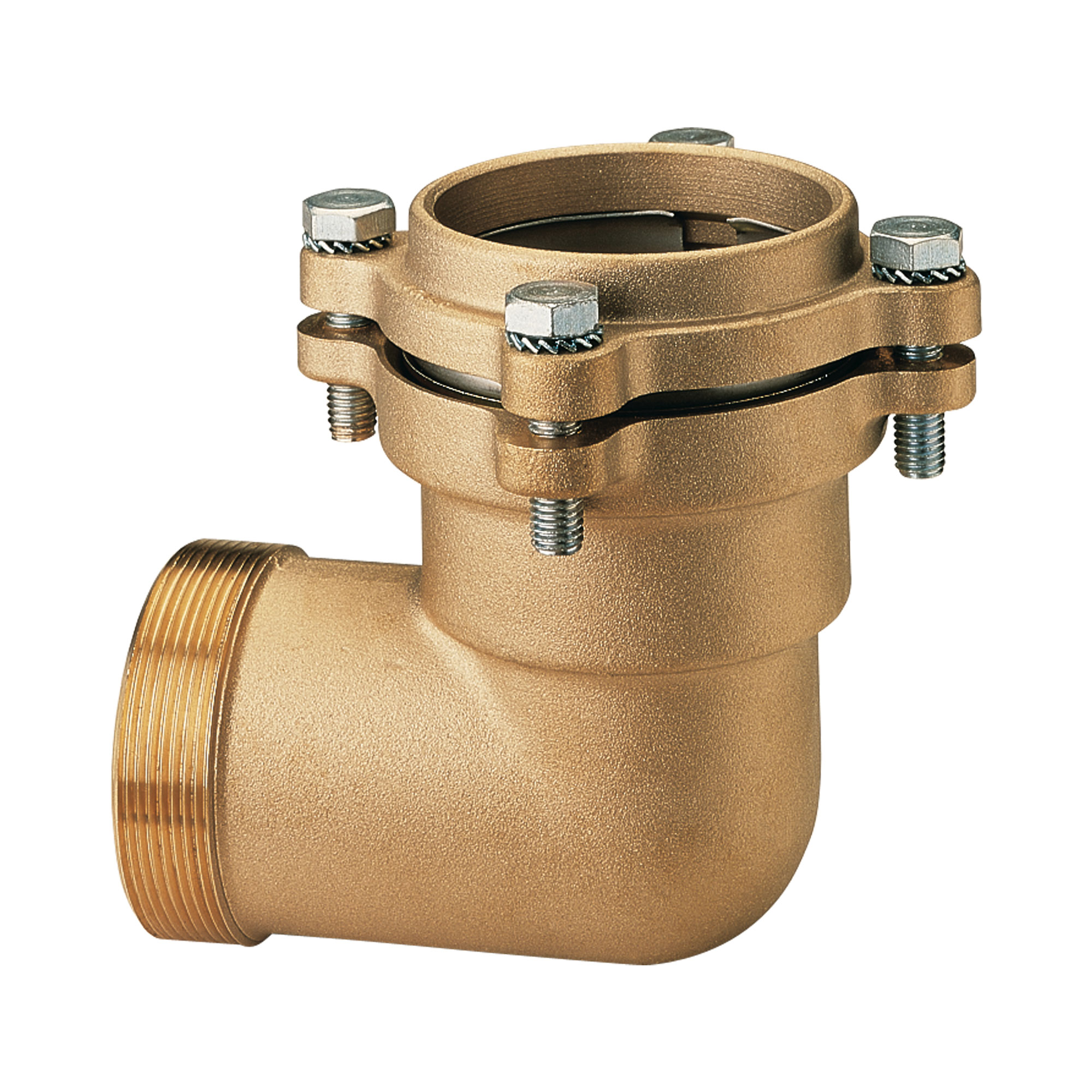

040FL

Male elbow, with flanges

045FL

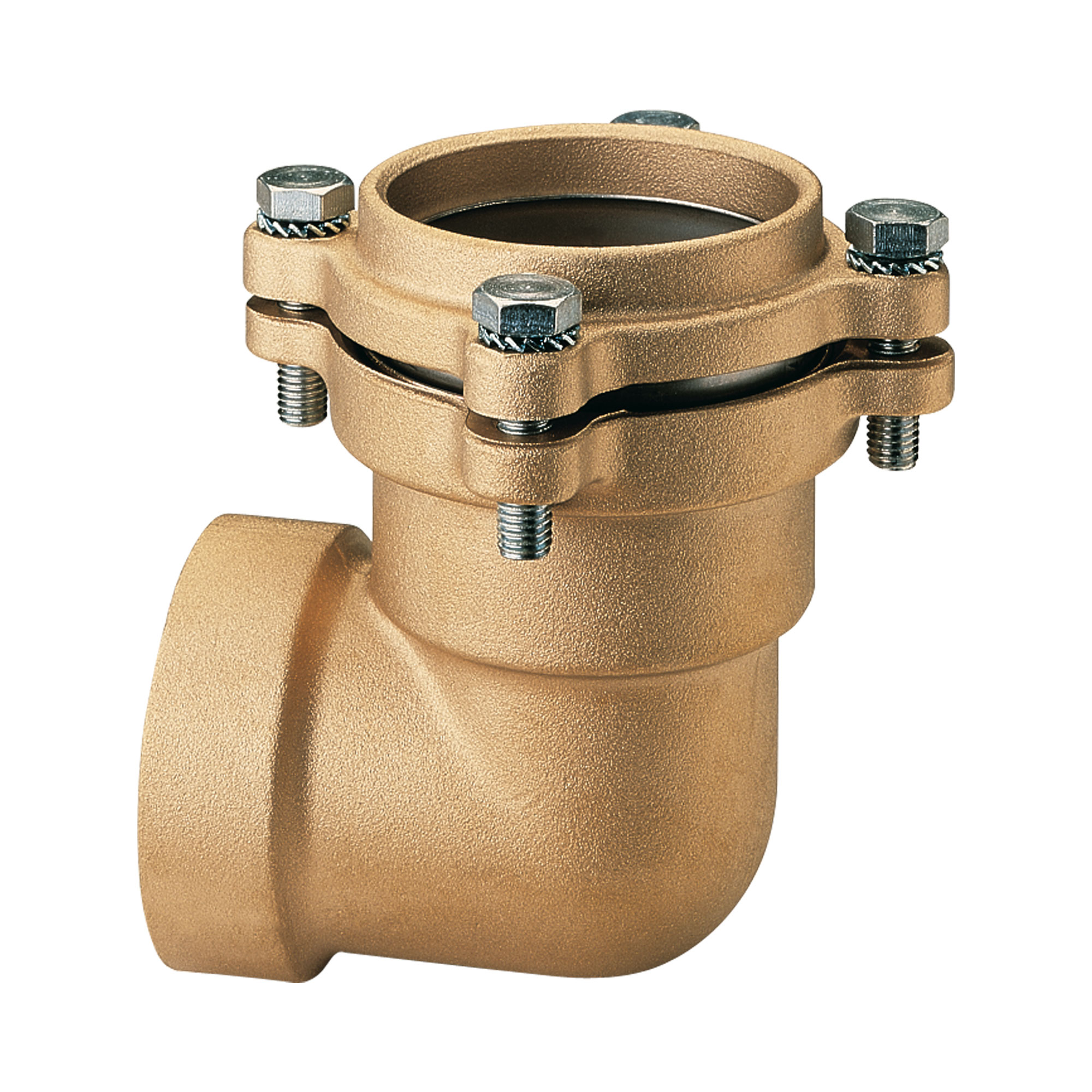

Female elbow, with flanges

050

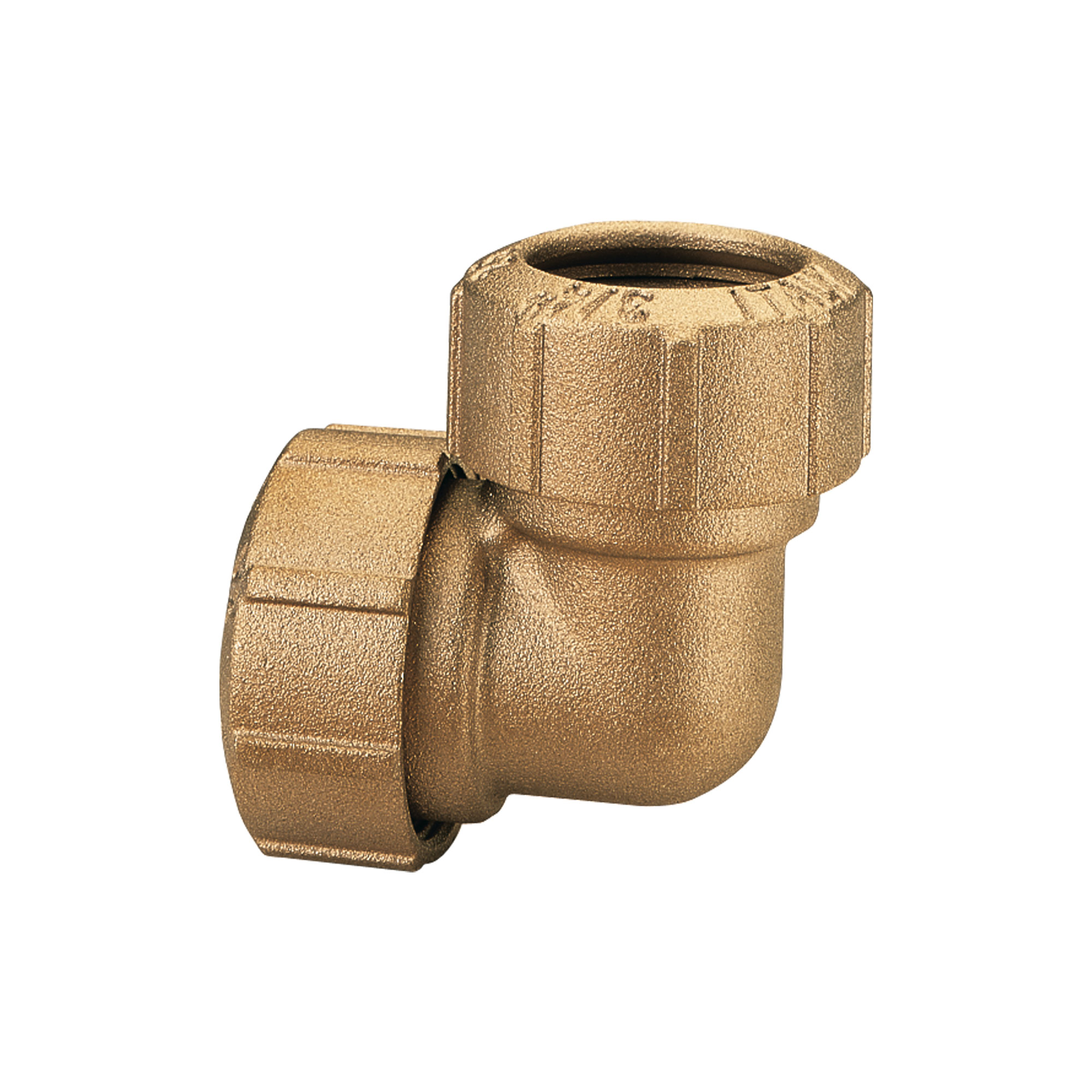

Elbow coupling

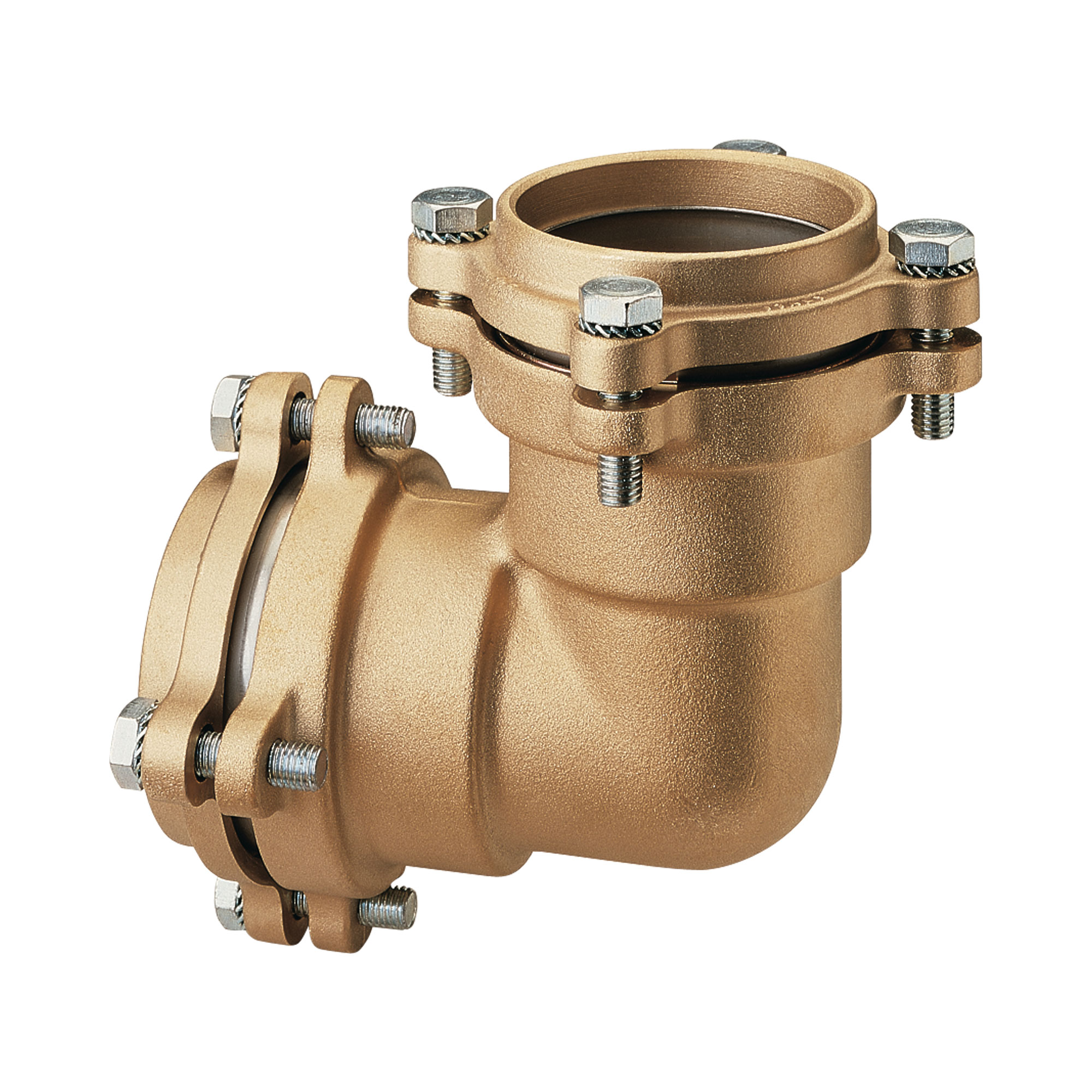

050FL

Elbow coupling, with flanges

048

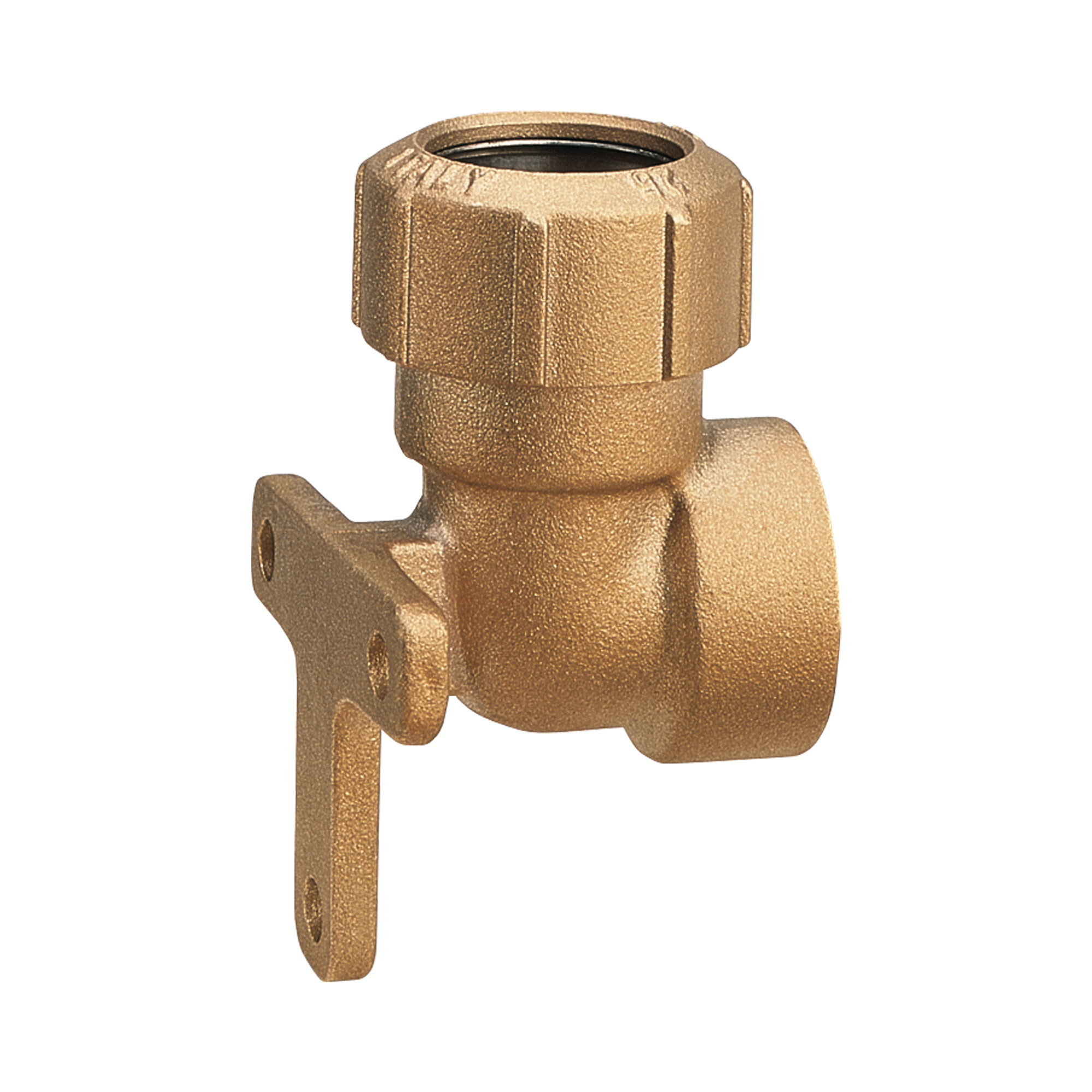

Backplate female elbow
