Female branch T coupling, with flanges - 035FL
Female branch T coupling, with flanges - 035FL

035FL

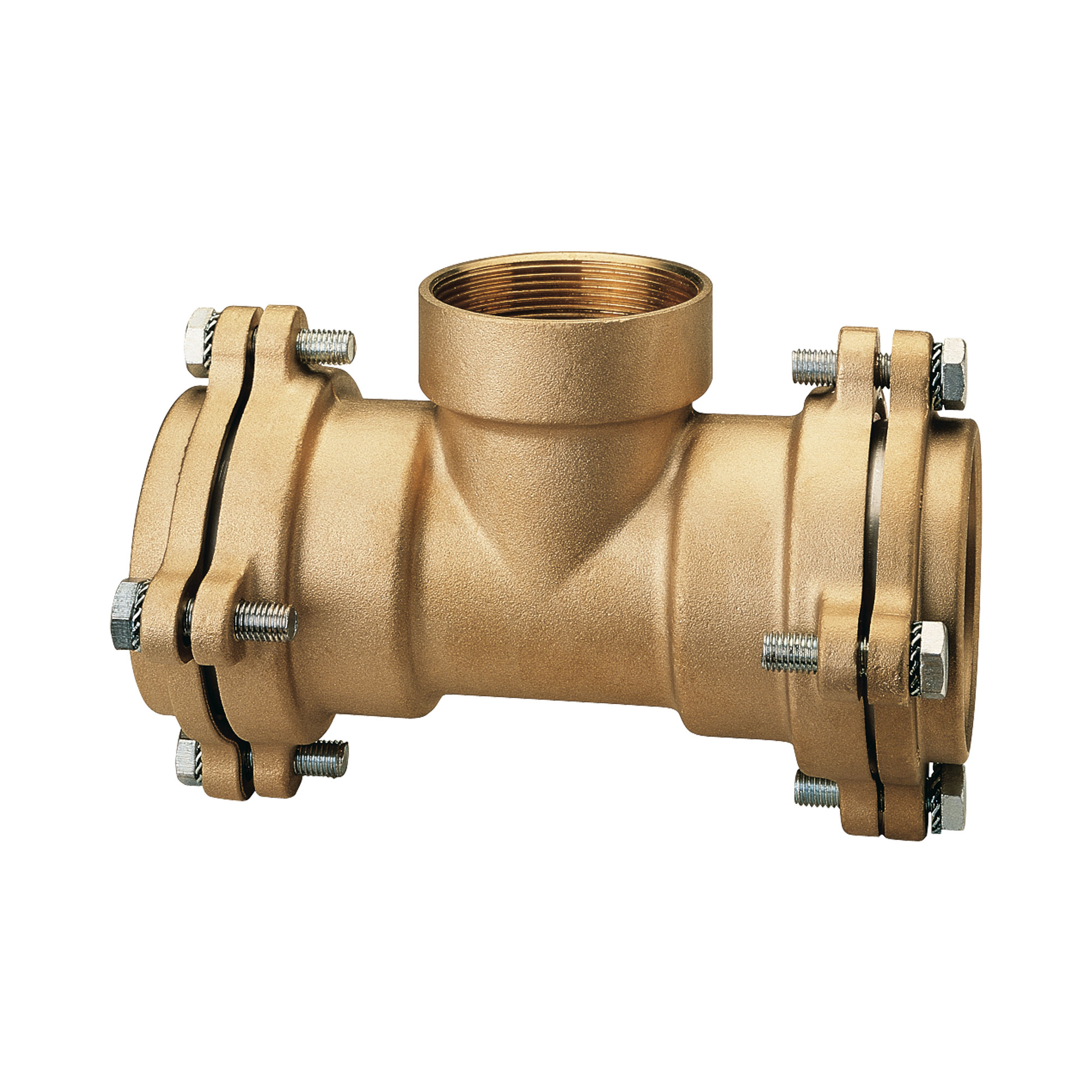

Female branch T coupling, with flanges

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.
Female threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizeCodePacking
2"1/2x7503502120751/4
3"x9003503000901/3
4"x11003504001101/1
Drawing 035FL
Download PDF
Materials 035FL
Download PDF
Installation 035FL
Download PDF
Declaration of Conformity 035FL
Download PDF
Technical featuresTechnical features
