Equal T coupling - 030
Equal T coupling - 030

030

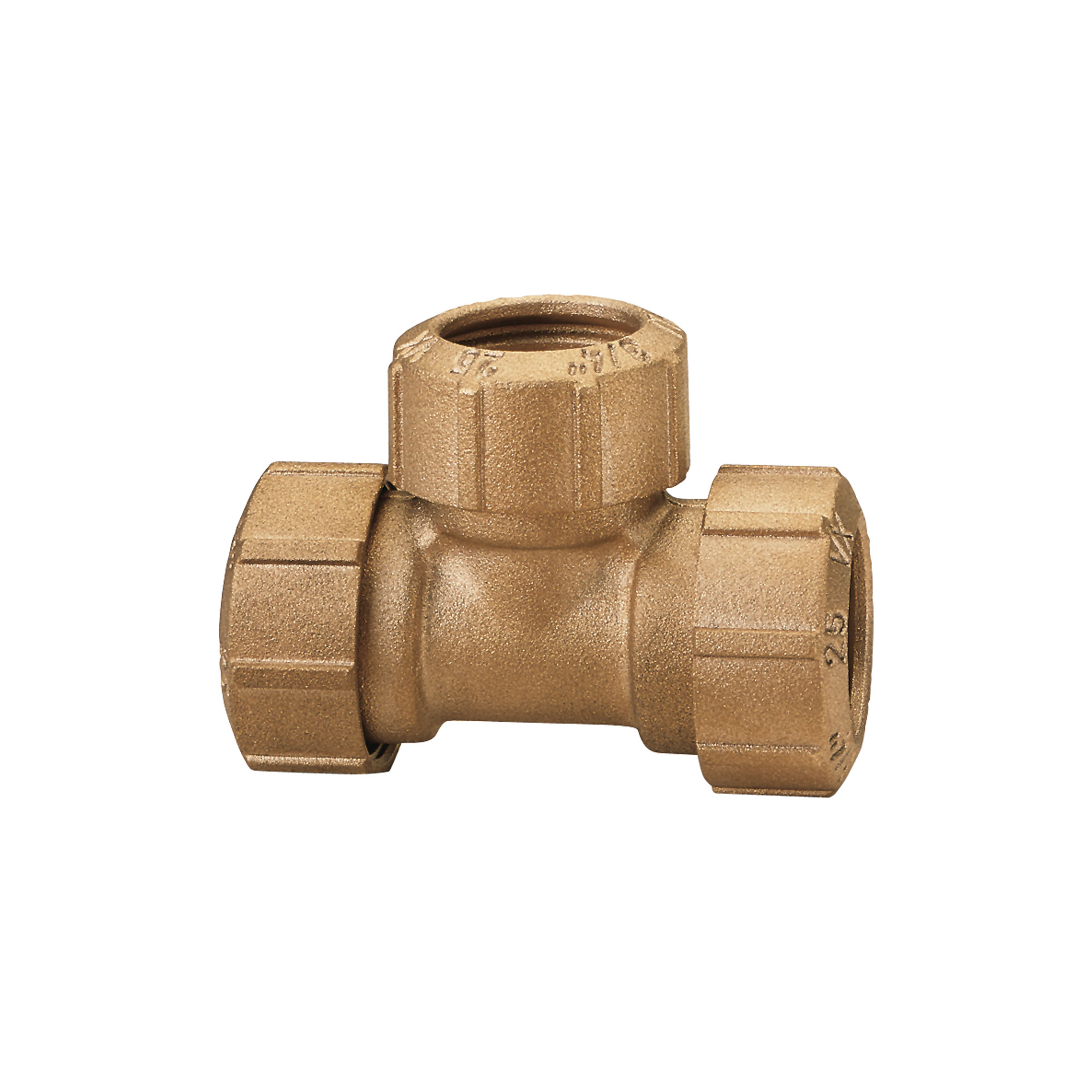

Equal T coupling

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.

SizeCodePacking
2003000120206/84
2503000340256/54
3203001000324/28
4003001140403/18
5003001120502/10
6303002000631/5
Drawing 030
Download PDF
Materials 030
Download PDF
Installation 030
Download PDF
Declaration of Conformity 030
Download PDF
Technical featuresTechnical features
